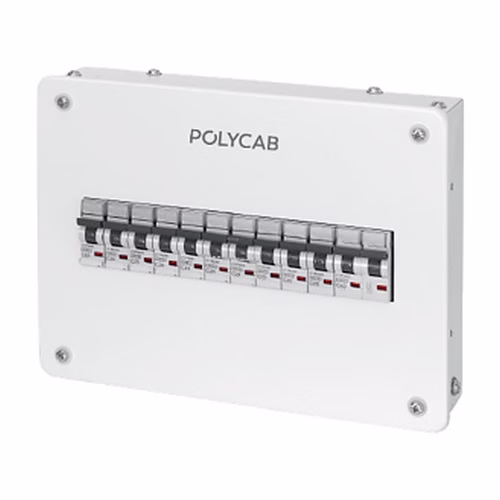

Polycab SPN Single Door Distribution Board – IP30, 4, 6, 8, 12 and 16 Way

The Polycab SPN Single Door Distribution Board is a single-phase-and-neutral (SPN) distribution board with a single door, IP30, for a DP incomer and single-pole outgoing MCBs. Polycab lists it in 5 versions - 4, 6, 8, 12 and 16 way - at MRP Rs 1,203 to Rs 2,412 per piece (polycab.com, October 2026).

Polycab India Limited is India's largest manufacturer of wires and cables, with 27 manufacturing facilities, 4,300+ authorised distributors, 2,00,000+ retailers and an export presence in 84 countries (polycab.com, October 2026). Its switchgear range covers MCBs, RCCBs, RCBOs, isolators, changeover switches, ACCLs and distribution boards. Jai Enterprises supplies Polycab distribution boards from Bhilai and Raipur all over Chhattisgarh - Bhilai, Raipur, Durg, Korba, Bilaspur, Raigarh, Jagdalpur, Kanker, Ambikapur and every other district - and across India.

Is this the right one for you?

Check these three things before you order:

• The supply is single phase - an SPN board takes a double-pole incomer and single-pole outgoing MCBs.
• You have counted the circuits you need now, plus a few spare ways for later.
• It will be fitted indoors where IP30 is enough (no protection against water).

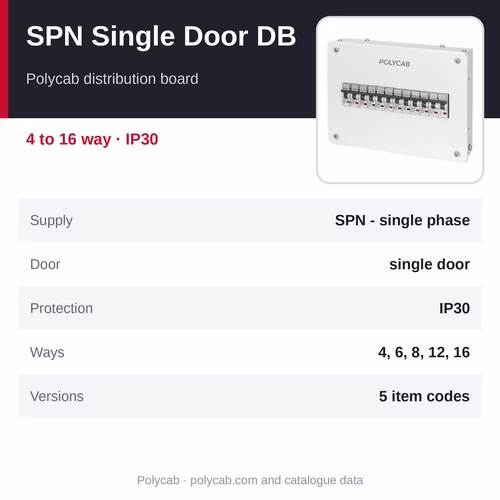

At a glance

• MRP: Rs 1,203 - 2,412 per piece (polycab.com, October 2026, inclusive of taxes)
• Product: Polycab SPN Single Door Distribution Board
• Supply: SPN - single phase and neutral
• Door: single door
• Protection: IP30 - protected against solid objects over 2.5 mm, with no protection against water
• Sizes: 4, 6, 8, 12 and 16 way
• Incoming / outgoing: double-pole incomer, single-pole outgoing MCBs
• Colour: grey white
• Item codes: GPDSN10016 to GPDSN10020

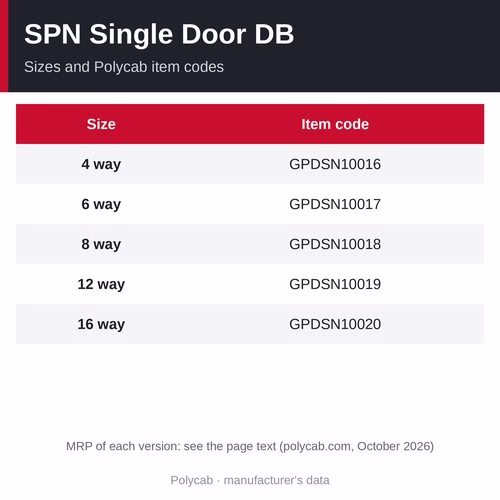

Sizes, item codes and MRP

• 4 way: item code GPDSN10016 - MRP Rs 1,203
• 6 way: item code GPDSN10017 - MRP Rs 1,332
• 8 way: item code GPDSN10018 - MRP Rs 1,439
• 12 way: item code GPDSN10019 - MRP Rs 1,949
• 16 way: item code GPDSN10020 - MRP Rs 2,412
• MRP basis: MRPs as listed on polycab.com, October 2026, inclusive of taxes; the selling price is confirmed on enquiry

Why choose the Polycab SPN Single Door Distribution Board

• IP30 protection
• Detachable gland plates
• Earthing bolt
• Insulated busbar
• Insertion marks for fitting the devices
• Flush or surface mounting
• Neutral bar and earth bar fitted
• Polycab item code and MRP for every version - GPDSN10016 to GPDSN10020

How to choose and fit it

SPN or TPN. An SPN (single phase and neutral) board is for a single-phase supply: a double-pole incomer - a DP MCB, or a DP isolator or RCCB where an MCB or fuse ahead of the board protects it - and single-pole MCBs for the outgoing circuits.

How many ways. Count the circuits you need now - lighting, sockets, air conditioners, geyser, kitchen, pump - and add a few spare ways for circuits you may add later.

Devices. Polycab lists the MCBs, RCCBs and isolators that go inside separately - see the related products below.

Protection. IP30 - protected against solid objects over 2.5 mm, with no protection against water. Install it indoors, out of direct rain.

Mounting. It can be flush-mounted in the wall or surface-mounted; the detachable gland plates take the incoming and outgoing cables.

Where it is used

• homes and flats with a single-phase supply
• shops, small offices and clinics
• sub-boards for a floor or a flat

Standard Polycab distribution boards

• Polycab SPN Single Door Distribution Board (this page) - 5 versions, MRP Rs 1,203 - 2,412
• Polycab TPN Single Door Distribution Board - 5 versions, MRP Rs 3,475 - 6,322
• Polycab SPN Double Door Distribution Board - 5 versions, MRP Rs 1,839 - 3,751
• Polycab TPN Double Door Distribution Board - 5 versions, MRP Rs 4,477 - 10,919
• Polycab SPN Acrylic Distribution Board - 5 versions, MRP Rs 2,125 - 4,744
• Polycab TPN Acrylic Distribution Board - 5 versions, MRP Rs 5,834 - 12,537
• Polycab TPN Vertical Distribution Board - 4 versions, MRP Rs 12,279 - 19,910

Related products

• Polycab TPN PPI Horizontal Distribution Board - its page lists all the special-purpose Polycab distribution boards
• Polycab Decour SPN Distribution Board - its page lists all the Polycab designer and consumer distribution boards
• Polycab Plug and Socket Distribution Board - its page lists all the Polycab MCB enclosures and plug-and-socket DBs
• Polycab 10kA C-Curve SP MCB - outgoing MCBs
• Polycab 10kA C-Curve DP MCB - incomer
• Polycab DP RCCB 30 mA - earth-leakage protection
• All Polycab switchgear

Frequently asked questions

What is the difference between an SPN and a TPN distribution board?

An SPN board is for a single-phase supply: a double-pole incomer and single-pole outgoing MCBs. A TPN board is for a three-phase supply with neutral: a four-pole incomer and single-pole outgoing MCBs on each of the three phases.

How many ways do I need?

Count the circuits you need now - lighting, sockets, air conditioners, geyser, kitchen, pump - and add a few spare ways.

What does IP30 mean?

IP30 means the enclosure is protected against solid objects over 2.5 mm, with no protection against water (IEC 60529 degrees of protection). Fit it indoors, away from water.

What is the MRP of the Polycab SPN Single Door Distribution Board, 8 way?

Rs 1,439 per piece, item code GPDSN10018 - the MRP listed on polycab.com in October 2026, inclusive of taxes. Call +91 9340081159 for the selling price and stock.

Where can I buy the Polycab SPN Single Door Distribution Board in Chhattisgarh?

From Jai Enterprises, Bhilai and Raipur, which supplies Polycab switchgear all over Chhattisgarh - Korba, Bilaspur, Raigarh, Jagdalpur, Kanker, Ambikapur and every other district - and across India. Call +91 9340081159 with the size, quantity and delivery location and we will confirm the price, stock and lead time.

How to order

Supplied by Jai Enterprises, Bhilai and Raipur, to every district of Chhattisgarh and across India. Polycab lists the SPN Single Door Distribution Board at MRP Rs 1,203 - 2,412 per piece (polycab.com, October 2026, inclusive of taxes). Call +91 9340081159 or send an enquiry from this page with the size, the quantity (pieces) and the delivery location, and we will confirm the selling price, stock and lead time.
