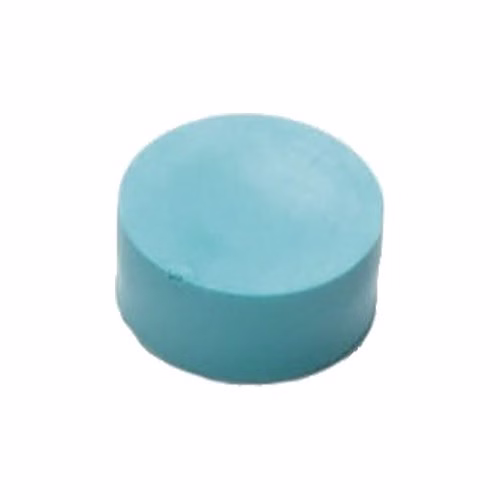

Blind Grommet for Techno IP68 Connectors - Techno 6000338GT

Blind Grommet, Ø 14.5 x 9 mm, TPE, Techno green. Techno 6000338GT closes an unused cable entry of a Techno IP68 connector, so the connector stays sealed. It is listed by Techno as compatible with the TH387 and TH391 ranges. List price Rs 80 per piece; Techno packs it in boxes of 200.

Techno s.r.l., of Guanzate near Como in Italy, designs and makes waterproof electrical connectors - the Tee Tube joints, Tee Plug plug-and-socket connectors and Tee Box junction boxes - for outdoor lighting and installations exposed to water and dust. Using the right grommet keeps the IP rating of the connector when the cable is smaller than the standard seal, or when several cables share one entry.

Is this the right one for you?

Check these three things before you order:

• Your connector is one of the TH387 and TH391 ranges.
• You need to close or blank off an entry, not to pass a cable.
• The material suits the location: TPE, Techno green, -40 °C to +60 °C.

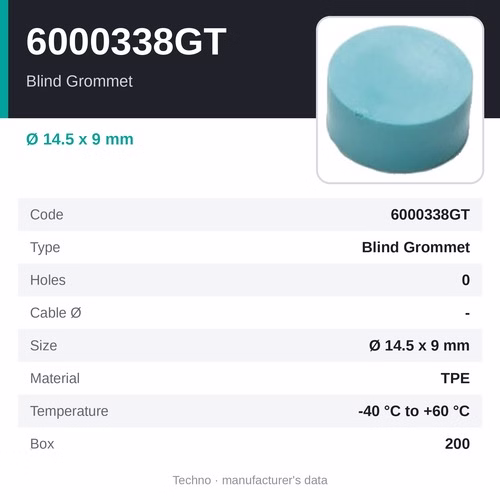

At a glance

• Price: Rs 80 per piece
• Code: 6000338GT
• Type: Blind Grommet
• Holes: 0
• Cable outside diameter: not applicable
• Size: Ø 14.5 x 9 mm
• Material: TPE, Techno green
• Fits: TH387 and TH391

Specifications

• Product: Techno 6000338GT blind grommet
• Code: 6000338GT
• Type: blind grommet (closes an unused cable entry)
• Holes: 0
• Dimensions: Ø 14.5 x 9 mm
• Material: TPE, Techno green
• Temperature range: -40 °C to +60 °C
• Properties: halogen-free and silicone-free
• Weight: 1.36 g
• Packing: box of 200
• Compatible with (Techno list): TH387 and TH391

Why use it

• Keeps the IP rating when the cable is smaller than the standard seal, or several cables share an entry
• Made for Techno glands - a precise fit
• TPE, Techno green, halogen-free and silicone-free
• Wide temperature range - -40 °C to +60 °C

How it is fitted

1. Undo the gland nut of the connector and take out the standard seal.
2. Fit the grommet or adapter in its place and pass the cable or cables through.
3. Tighten the gland nut to the torque given for the connector.

Where it is used

• Thin cables in Techno IP68 connectors
• Several cables through one connector entry
• Closing unused entries
• Spares for installers

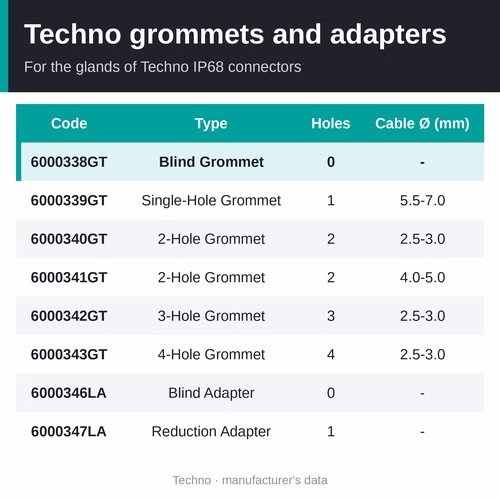

Other sizes and versions

The Techno Techno grommets and adapters overview page compares all 8 side by side.

• Techno 6000338GT - blind grommet - Rs 80 per piece (this page)
• Techno 6000339GT - single-hole cable grommet, 1 x cable diameter 5.5-7.0 mm - Rs 80 per piece
• Techno 6000340GT - 2-hole cable grommet, 2 x cable diameter 2.5-3.0 mm - Rs 80 per piece
• Techno 6000341GT - 2-hole cable grommet, 2 x cable diameter 4.0-5.0 mm - Rs 80 per piece
• Techno 6000342GT - 3-hole cable grommet, 3 x cable diameter 2.5-3.0 mm - Rs 80 per piece
• Techno 6000343GT - 4-hole cable grommet, 4 x cable diameter 2.5-3.0 mm - Rs 80 per piece
• Techno 6000346LA - blind adapter - Rs 80 per piece
• Techno 6000347LA - cable-reduction adapter - Rs 80 per piece

Related products

• Techno TH391 in-line connectors - compact IP68 cable-to-cable joints, 3 to 5 poles
• Techno TH387 mini plug-and-socket - screw-ring coupling, 3 to 5 poles
• Techno TH405 Tee Plug - bayonet plug-and-socket, 3 to 8 poles
• Techno TH219 junction box - 4-way IP68 box for resin or gel filling
• All Techno IP68 waterproof connectors

Frequently asked questions

Which connectors does 6000338GT fit?

Techno lists it as compatible with TH387 and TH391. It does not appear on the accessory lists for TH399 or TH400.

Why use a grommet instead of the standard seal?

The gland seals only on cable within its range. A grommet made for a smaller cable - or for several cables - keeps the seal tight, so the connector keeps its IP rating.

Is the price per piece?

Yes - Rs 80 for one piece; Techno packs them in boxes of 200.

Is it halogen-free?

Yes - halogen-free and silicone-free.

Where can I buy Techno 6000338GT in India?

From Jai Enterprises, Bhilai and Raipur, Chhattisgarh, which supplies Techno IP68 connectors across India. The list price is Rs 80 per piece; call +91 9340081159 with the quantity and delivery location for stock and lead time.

How to order

Supplied by Jai Enterprises, Bhilai and Raipur, Chhattisgarh, to sites across India. The list price for Techno 6000338GT is Rs 80 per piece. Call +91 9340081159 or send an enquiry from this page with the quantity and delivery location, and we will confirm stock, lead time and the delivered cost.
