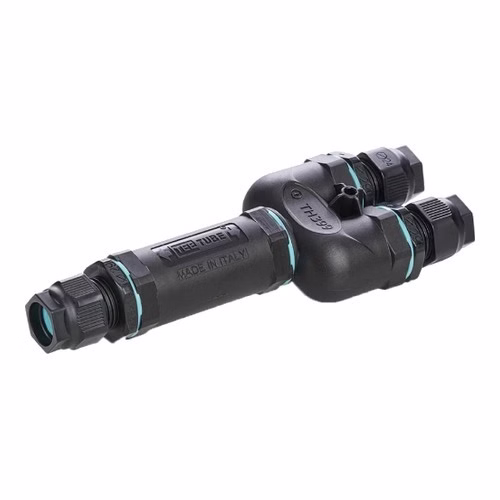

IP68 Y-Branch Cable Connector, 5-Pole, 0.5-1.5 sq mm, 32 A - Techno TH399 (THB.399.A5A)

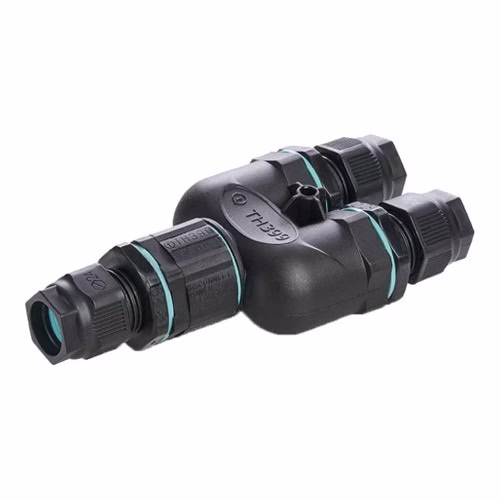

5 poles, 0.5-1.5 mm², 32 A, 450 V AC; cable diameter 7-13.5 or 8-17 mm. Techno TH399 5-pole is a "Y" branch connector with a terminal block - one cable in, two out - sealed to IP68. It is made in two versions: THB.399.A5A for cable 7-13.5 mm (Ø 34 x 65.5 x 180 mm) and THB.399.D5A for cable 8-17 mm (Ø 34 x 65.5 x 180 mm). List price Rs 2,530 per piece.

Techno s.r.l., of Guanzate near Como in Italy, designs and makes waterproof electrical connectors - the Tee Tube joints, Tee Plug plug-and-socket connectors and Tee Box junction boxes - for outdoor lighting and installations exposed to water and dust.

Is this the right one for you?

Check these five things before you order:

• You need a 5-pole connection.
• Each conductor is 0.5-1.5 mm² - flexible cords such as H05 / H07 types.
• The cable outside diameter is 7-13.5 or 8-17 mm.
• The circuit is within 32 A and 450 V AC.
• The connection needs IP68.

At a glance

• Price: Rs 2,530 per piece
• Order codes: THB.399.A5A, THB.399.D5A
• Poles: 5 (marking 1-2-L-N-E)
• Conductors: 0.5-1.5 mm²
• Rating: 32 A, 450 V AC
• Cable outside diameter: 7-13.5 or 8-17 mm
• Degree of protection: IP68 (Techno test for THB.399.D5A: 20 m / 1 h)

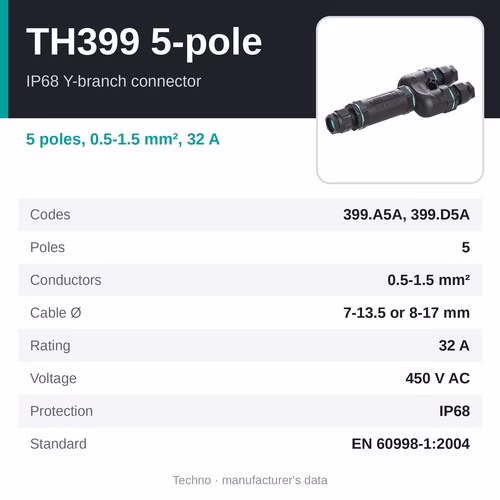

Specifications

• Product: Techno TH399 5-pole
• Poles: 5
• Contact marking: 1-2-L-N-E
• Terminals: screw
• Conductor cross-section: 0.5-1.5 mm²
• Rated current: 32 A
• Rated voltage: 450 V AC
• THB.399.A5A: cable diameter 7-13.5 mm; Ø 34 x 65.5 x 180 mm; IP68; 108 g; box of 100
• THB.399.D5A: cable diameter 8-17 mm; Ø 34 x 65.5 x 180 mm; IP68 (Techno test: 20 m / 1 h); 119.8 g; box of 100
• Configuration: 3-way "Y" branch joint with terminal block
• Installation: fixed connection, re-openable for inspection
• Terminal screws: M3, 0.8 Nm
• Impact resistance: IK07
• T-marking: T125 °C
• Tracking index: PTI 250
• Connector housing: PA66 glass-filled, UL94 V0 (body and terminal housing)
• Cable glands: PA66 UL94 V2 (7-13.5 mm version); PA6 V-2 (8-17 mm version)
• Seals: silicone
• Grommets: TPE
• Contacts: brass
• Screws: steel
• Materials: halogen-free
• Cable type: H05/H07 flexible cords
• Tightening torques: gland to body 2.5 Nm; gland nut 2.5 Nm (7-13.5 mm) or 4.0 Nm (8-17 mm)
• Corrosion: salt-mist tested to EN 60068-2-11
• Standard: EN 60998-1:2004

Why choose Techno TH399

• Y-branch in one piece - one supply in, two cables out, with a terminal block inside
• IP68 - Techno tests the 8-17 mm versions at 20 m for 1 hour
• Two cable ranges - 7-13.5 mm (A versions) or 8-17 mm (D versions)
• Screw terminals - brass contacts, M3 screws
• Re-openable for inspection
• Tough, heat-rated body - glass-filled PA66 to UL94 V0, T125 °C, IK07
• Halogen-free; built to EN 60998-1

How it is installed

1. Slide the gland nuts and seals over the cable ends, then strip the sheath and the conductors.
2. Connect each conductor to its screw terminal, following the contact marking, and tighten the terminal screws to the stated torque.
3. Screw the glands onto the body and tighten the gland nuts to the stated torques, so the seals grip the cable sheaths and the joint is sealed to IP68.

Where it is used

• Branching a lighting supply to a luminaire or bollard
• Street and park lighting columns
• Garden and facade lighting runs
• Pumps and outdoor equipment fed from one cable

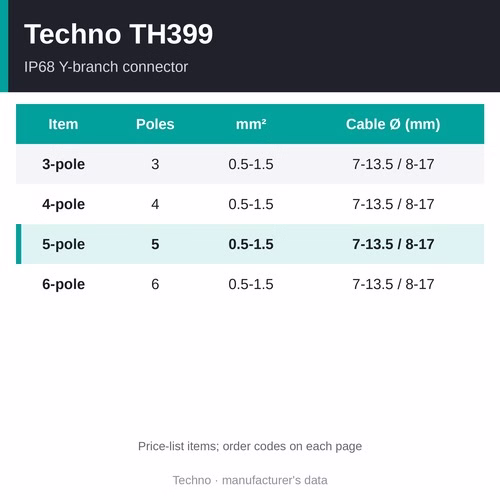

Other sizes and versions

The Techno TH399 Tee Tube "Y" overview page compares all 4 side by side.

• TH399 3-pole - 3 poles, 0.5-1.5 mm², 32 A, cable diameter 7-13.5 or 8-17 mm - Rs 2,295 per piece
• TH399 4-pole - 4 poles, 0.5-1.5 mm², 32 A, cable diameter 7-13.5 or 8-17 mm - Rs 2,405 per piece
• TH399 5-pole - 5 poles, 0.5-1.5 mm², 32 A, cable diameter 7-13.5 or 8-17 mm - Rs 2,530 per piece (this page)
• TH399 6-pole - 6 poles, 0.5-1.5 mm², 32 A, cable diameter 7-13.5 or 8-17 mm - Rs 2,785 per piece

Related products

• Techno TH402 T-branch connectors - IP68 tee joints, 3 to 6 poles
• Techno TH392 "H" distributors - IP68, one cable in and three out
• Techno TH400 in-line joints - IP68 screw joints for 7-17 mm cable
• All Techno IP68 waterproof connectors

Frequently asked questions

Which cables fit Techno TH399 5-pole?

Conductors of 0.5-1.5 mm², in cable with an outside diameter of 7-13.5 or 8-17 mm, such as H05 / H07 flexible cords.

What is the difference between THB.399.A5A and THB.399.D5A?

The cable range and body: THB.399.A5A takes cable 7-13.5 mm (Ø 34 x 65.5 x 180 mm); THB.399.D5A takes cable 8-17 mm (Ø 34 x 65.5 x 180 mm). The list price is the same.

Is the connection waterproof?

Yes - the connector is IP68: sealed against dust and protected against immersion. The page gives Techno's test depth and time where Techno states them.

Can the connector be opened again?

Yes - it is a fixed connection that can be re-opened for inspection.

Is the price for one piece?

Yes - Rs 2,530 is the list price for one connector.

Where can I buy Techno TH399 5-pole in India?

From Jai Enterprises, Bhilai and Raipur, Chhattisgarh, which supplies Techno IP68 connectors across India. The list price is Rs 2,530 per piece; call +91 9340081159 with the quantity and delivery location for stock and lead time.

How to order

Supplied by Jai Enterprises, Bhilai and Raipur, Chhattisgarh, to sites across India. The list price for Techno TH399 5-pole (THB.399.A5A, THB.399.D5A) is Rs 2,530 per piece. Call +91 9340081159 or send an enquiry from this page with the quantity and delivery location, and we will confirm stock, lead time and the delivered cost.
