TVS Plain Washers, ISO 7089 (200 to 300 HV) – M4 to M64

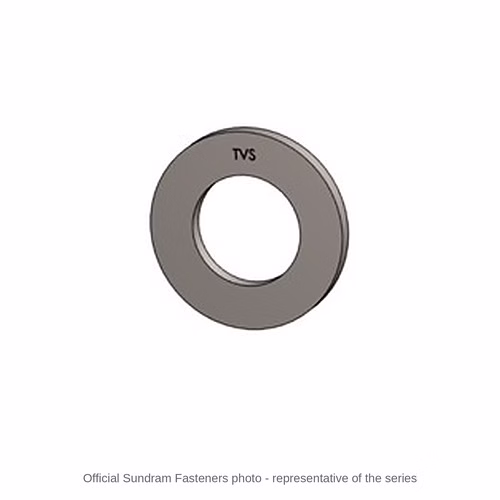

TVS Sundram Fasteners Plain Washers, ISO 7089 (200 to 300 HV) are plain steel washers made by Sundram Fasteners Limited to ISO 7089, for bolt sizes M4 to M64, of 200 to 300 HV, supplied in zinc phosphate and 4 plated or coated finishes (listed below). A plain washer spreads the load of the bolt head or nut over the joint face, protects the surface from damage as the nut turns, and gives the nut a flat, square seat.

This item is supplied at a price on request; tell us the sizes, hardness and finish you need and we will quote.

Jai Enterprises is an authorised distributor of TVS Sundram Fasteners high tensile fasteners and supplies them from Bhilai and Raipur all over Chhattisgarh - Bhilai, Raipur, Durg, Korba, Bilaspur, Raigarh, Jagdalpur, Kanker, Ambikapur and every other district - and across India.

Is this the right one for you?

Check these three things before you order:

• Your bolt size is within M4 to M64.
• You want a plain flat washer under the nut or bolt head; spring, tab and serrated washers are not in this range.
• A general-purpose washer of 200 to 300 HV is enough: bolts up to class 8.8. For 10.9 and 12.9 bolts use the 300 to 370 HV version.

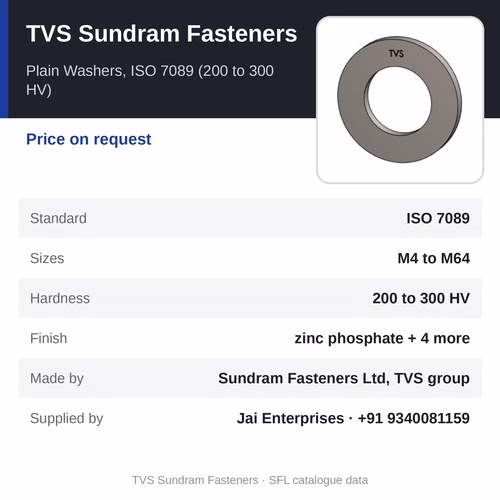

At a glance

• Brand: TVS Sundram Fasteners (Sundram Fasteners Limited, TVS group)
• Product: Plain Washers, ISO 7089 (200 to 300 HV)
• Standard: ISO 7089
• Sizes: M4 to M64
• Hardness: 200 to 300 HV
• Material: Steel
• Surface finish: zinc phosphate, trivalent iridescent, trivalent white, hot dip galvanised and zinc flake coating (Geomet / Magni / Delta)
• Price: price on request - tell us the sizes, hardness and finish
• Supplied by: Jai Enterprises, Bhilai and Raipur - to every district of Chhattisgarh and across India, +91 9340081159

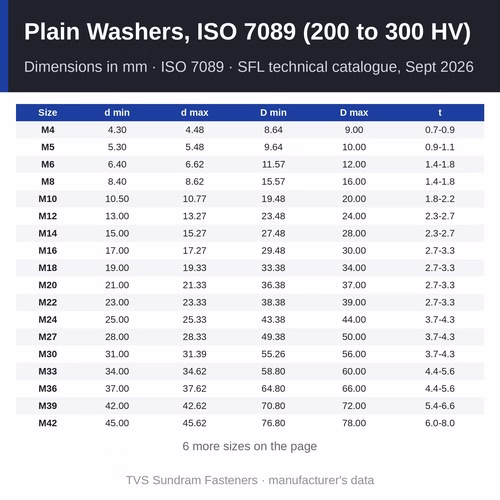

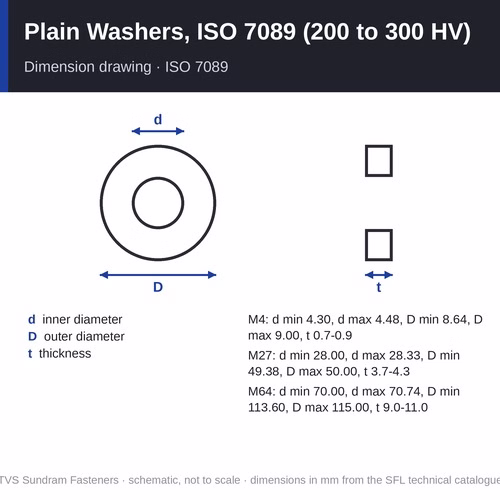

Specifications and dimensions

• Standard: ISO 7089
• Material: steel, 200 to 300 HV
• Hardness: 200 to 300 HV
• Surface finish options: zinc phosphate, trivalent iridescent, trivalent white, hot dip galvanised and zinc flake coating (Geomet / Magni / Delta)
• M4: inner diameter 4.30 to 4.48 mm, outer diameter 8.64 to 9.00 mm, thickness 0.70 to 0.90 mm
• M5: inner diameter 5.30 to 5.48 mm, outer diameter 9.64 to 10.00 mm, thickness 0.90 to 1.10 mm
• M6: inner diameter 6.40 to 6.62 mm, outer diameter 11.57 to 12.00 mm, thickness 1.40 to 1.80 mm
• M8: inner diameter 8.40 to 8.62 mm, outer diameter 15.57 to 16.00 mm, thickness 1.40 to 1.80 mm
• M10: inner diameter 10.50 to 10.77 mm, outer diameter 19.48 to 20.00 mm, thickness 1.80 to 2.20 mm
• M12: inner diameter 13.00 to 13.27 mm, outer diameter 23.48 to 24.00 mm, thickness 2.30 to 2.70 mm
• M14: inner diameter 15.00 to 15.27 mm, outer diameter 27.48 to 28.00 mm, thickness 2.30 to 2.70 mm
• M16: inner diameter 17.00 to 17.27 mm, outer diameter 29.48 to 30.00 mm, thickness 2.70 to 3.30 mm
• M18: inner diameter 19.00 to 19.33 mm, outer diameter 33.38 to 34.00 mm, thickness 2.70 to 3.30 mm
• M20: inner diameter 21.00 to 21.33 mm, outer diameter 36.38 to 37.00 mm, thickness 2.70 to 3.30 mm
• M22: inner diameter 23.00 to 23.33 mm, outer diameter 38.38 to 39.00 mm, thickness 2.70 to 3.30 mm
• M24: inner diameter 25.00 to 25.33 mm, outer diameter 43.38 to 44.00 mm, thickness 3.70 to 4.30 mm
• M27: inner diameter 28.00 to 28.33 mm, outer diameter 49.38 to 50.00 mm, thickness 3.70 to 4.30 mm
• M30: inner diameter 31.00 to 31.39 mm, outer diameter 55.26 to 56.00 mm, thickness 3.70 to 4.30 mm
• M33: inner diameter 34.00 to 34.62 mm, outer diameter 58.80 to 60.00 mm, thickness 4.40 to 5.60 mm
• M36: inner diameter 37.00 to 37.62 mm, outer diameter 64.80 to 66.00 mm, thickness 4.40 to 5.60 mm
• M39: inner diameter 42.00 to 42.62 mm, outer diameter 70.80 to 72.00 mm, thickness 5.40 to 6.60 mm
• M42: inner diameter 45.00 to 45.62 mm, outer diameter 76.80 to 78.00 mm, thickness 6.00 to 8.00 mm
• M45: inner diameter 48.00 to 48.62 mm, outer diameter 83.60 to 85.00 mm, thickness 6.00 to 8.00 mm
• M48: inner diameter 52.00 to 52.74 mm, outer diameter 90.60 to 92.00 mm, thickness 7.00 to 9.00 mm
• M52: inner diameter 56.00 to 56.74 mm, outer diameter 96.60 to 98.00 mm, thickness 7.00 to 9.00 mm
• M56: inner diameter 62.00 to 62.74 mm, outer diameter 103.60 to 105.00 mm, thickness 9.00 to 11.00 mm
• M60: inner diameter 66.00 to 66.74 mm, outer diameter 108.60 to 110.00 mm, thickness 9.00 to 11.00 mm
• M64: inner diameter 70.00 to 70.74 mm, outer diameter 113.60 to 115.00 mm, thickness 9.00 to 11.00 mm
• Note: M30, M36, M39, M42, M45 and M52: thickness limits per ISO 7089 (the printed catalogue limits for these sizes are inconsistent)
• Source: SFL's technical product catalogue (September 2026 edition) and SFL's digital product catalogue; dimensions in mm

Why choose TVS Sundram Fasteners

• Made by Sundram Fasteners Limited, a TVS group company making high tensile fasteners since 1966: first Indian company with ISO 9000, IATF 16949:2016 certified, Deming Prize 2018 for 17 plants.
• Every lot is backed by a BIS, NABL and ISO/IEC 17025 certified laboratory - tensile, fatigue, torque-tension, salt spray and coating thickness testing - as described in SFL's technical product catalogue (September 2026 edition).
• Made to a named standard - ISO 7089 - with the dimensions published in SFL's technical catalogue, so parts interchange with any other maker's to the same standard.
• A choice of finishes - zinc phosphate, trivalent iridescent, trivalent white, hot dip galvanised and zinc flake coating (Geomet / Magni / Delta) - from plain indoor use to hot dip galvanised and zinc flake coating for outdoor and corrosive service.

How to choose and fit

1. Choose the washer for the bolt size and the hole: normal series for standard clearance holes, large series for slotted or oversize holes.
2. Match the hardness to the bolt class: 200 to 300 HV with bolts up to 8.8, 300 to 370 HV with 10.9 and 12.9, and the hardened IS 6649 washer with HSFG sets.
3. Fit the washer under whichever element turns during tightening (usually the nut).

Where it is used

• under the nut or bolt head on every bolted joint
• structural steelwork
• machine assembly and maintenance

Other versions and series

• TVS Sundram Fasteners Plain Washers, ISO 7089 (300 to 370 HV) - M4 to M64, price on request
• TVS Sundram Fasteners Plain Washers Large Series, ISO 7093-1 (200 to 300 HV) - M4 to M36, price on request
• TVS Sundram Fasteners Plain Washers Large Series, ISO 7093-1 (300 to 370 HV) - M4 to M36, price on request
• TVS Sundram Fasteners Plain Hole Circular Washers, IS 6649 - M16 to M36, price on request
• TVS Sundram Fasteners Chamfered Washers, DIN EN 14399-6 - M12 to M36, price on request
• TVS Sundram Fasteners Chamfered Washers, DASt 021 - M39 to M72, price on request

Related products

• TVS Sundram Fasteners Hex Head Bolts, ISO 4014 metric - the bolts these washers go under
• TVS Sundram Fasteners Hex Nuts, ISO 4032 metric - the nuts they seat

Frequently asked questions

What is the price of Plain Washers, ISO 7089 (200 to 300 HV)?

It is supplied at a price on request. Send the sizes, grade, finish and quantity to Jai Enterprises on +91 9340081159 and we will quote from the current SFL list.

Which hardness should I pick?

ISO 7089 and ISO 7093-1 washers come in 200 to 300 HV for general use with bolts up to 8.8, and 300 to 370 HV for 10.9 and 12.9 bolts, so that the washer does not dish or embed under the higher clamp load.

Are TVS Plain Washers, ISO 7089 (200 to 300 HV) available in Chhattisgarh?

Yes. Jai Enterprises, an authorised distributor of TVS Sundram Fasteners, supplies from Bhilai and Raipur all over Chhattisgarh and across India. Call +91 9340081159 or use the enquiry form.

Can I get a different finish or a non-listed size?

Yes. The standard finishes are zinc phosphate, trivalent iridescent, trivalent white, hot dip galvanised and zinc flake coating (Geomet / Magni / Delta); other finishes and sizes or lengths outside the range are quoted on enquiry from SFL.

How to order

Call Jai Enterprises on +91 9340081159 or send an enquiry with the sizes, hardness, finish and quantity of Plain Washers, ISO 7089 (200 to 300 HV) you need; they are supplied at a price on request. We supply from Bhilai and Raipur all over Chhattisgarh - Bhilai, Raipur, Durg, Korba, Bilaspur, Raigarh, Jagdalpur, Kanker, Ambikapur and every other district - and across India.
