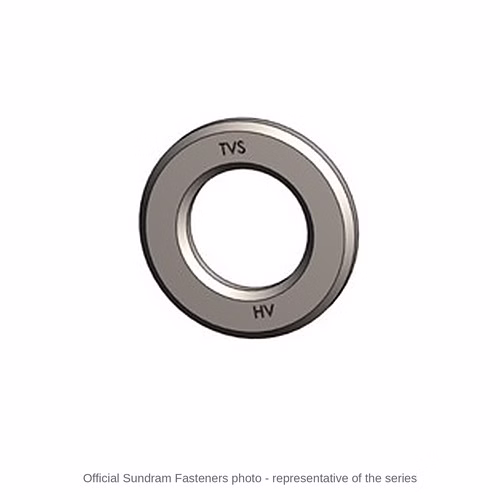

TVS Chamfered Washers, DASt 021 – M39 to M72, hardness 300 to 370 HV

TVS Sundram Fasteners Chamfered Washers, DASt 021 are hardened washers with a chamfer on one face, made by Sundram Fasteners Limited to DASt-Richtlinie 021, for bolt sizes M39 to M72, hardened to 300 to 370 HV, supplied in zinc phosphate and 4 plated or coated finishes (listed below). DASt-Richtlinie 021 extends the EN 14399 HV washer system to M39 to M72, for the largest structural bolts: the chamfer clears the radius under the bolt head, and the hardness lets the washer carry the full preload of a 10.9 bolt without embedding.

This item is supplied at a price on request; tell us the sizes, hardness and finish you need and we will quote.

Jai Enterprises is an authorised distributor of TVS Sundram Fasteners high tensile fasteners and supplies them from Bhilai and Raipur all over Chhattisgarh - Bhilai, Raipur, Durg, Korba, Bilaspur, Raigarh, Jagdalpur, Kanker, Ambikapur and every other district - and across India.

Is this the right one for you?

Check these three things before you order:

• Your bolt size is within M39 to M72.
• You want a chamfered washer for EN 14399 structural bolting; spring, tab and serrated washers are not in this range.
• You are using M39 to M72 HV sets to DASt-Richtlinie 021 and need the matching chamfered washer.

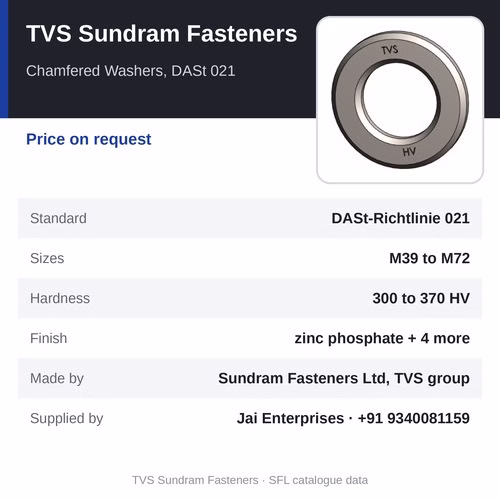

At a glance

• Brand: TVS Sundram Fasteners (Sundram Fasteners Limited, TVS group)
• Product: Chamfered Washers, DASt 021
• Standard: DASt-Richtlinie 021
• Sizes: M39 to M72
• Hardness: 300 to 370 HV
• Material: Steel
• Surface finish: zinc phosphate, trivalent iridescent, trivalent white, hot dip galvanised and zinc flake coating (Geomet / Magni / Delta)
• Price: price on request - tell us the sizes, hardness and finish
• Supplied by: Jai Enterprises, Bhilai and Raipur - to every district of Chhattisgarh and across India, +91 9340081159

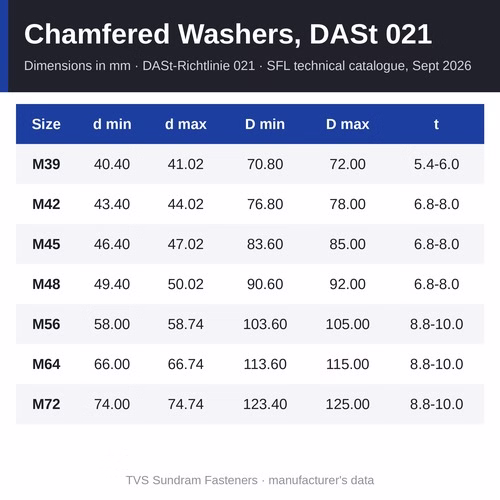

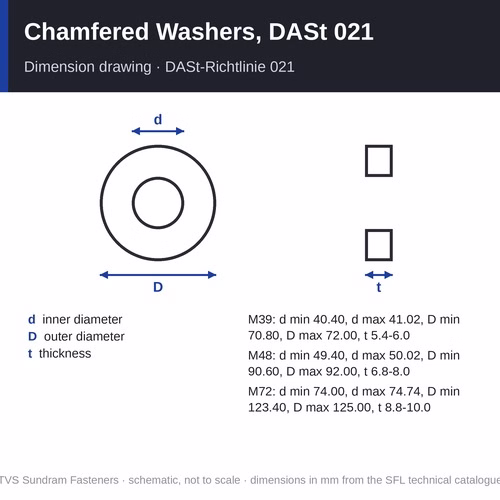

Specifications and dimensions

• Standard: DASt-Richtlinie 021
• Material: steel, hardened and tempered to the stated hardness
• Hardness: 300 to 370 HV
• Surface finish options: zinc phosphate, trivalent iridescent, trivalent white, hot dip galvanised and zinc flake coating (Geomet / Magni / Delta)
• M39: inner diameter 40.40 to 41.02 mm, outer diameter 70.80 to 72.00 mm, thickness 6.00 mm nominal (min 5.40)
• M42: inner diameter 43.40 to 44.02 mm, outer diameter 76.80 to 78.00 mm, thickness 8.00 mm nominal (min 6.80)
• M45: inner diameter 46.40 to 47.02 mm, outer diameter 83.60 to 85.00 mm, thickness 8.00 mm nominal (min 6.80)
• M48: inner diameter 49.40 to 50.02 mm, outer diameter 90.60 to 92.00 mm, thickness 8.00 mm nominal (min 6.80)
• M56: inner diameter 58.00 to 58.74 mm, outer diameter 103.60 to 105.00 mm, thickness 10.00 mm nominal (min 8.80)
• M64: inner diameter 66.00 to 66.74 mm, outer diameter 113.60 to 115.00 mm, thickness 10.00 mm nominal (min 8.80)
• M72: inner diameter 74.00 to 74.74 mm, outer diameter 123.40 to 125.00 mm, thickness 10.00 mm nominal (min 8.80)
• Source: SFL's technical product catalogue (September 2026 edition) and SFL's digital product catalogue; dimensions in mm

Why choose TVS Sundram Fasteners

• Made by Sundram Fasteners Limited, a TVS group company making high tensile fasteners since 1966: first Indian company with ISO 9000, IATF 16949:2016 certified, Deming Prize 2018 for 17 plants.
• Every lot is backed by a BIS, NABL and ISO/IEC 17025 certified laboratory - tensile, fatigue, torque-tension, salt spray and coating thickness testing - as described in SFL's technical product catalogue (September 2026 edition).
• Made to a named standard - DASt-Richtlinie 021 - with the dimensions published in SFL's technical catalogue, so parts interchange with any other maker's to the same standard.
• A choice of finishes - zinc phosphate, trivalent iridescent, trivalent white, hot dip galvanised and zinc flake coating (Geomet / Magni / Delta) - from plain indoor use to hot dip galvanised and zinc flake coating for outdoor and corrosive service.

How to choose and fit

1. Choose the washer for the bolt size; use it under the nut and, where the design or the set standard says so, under the bolt head as well.
2. Use it only with the bolting system it belongs to: the IS 6649 washer with IS 3757 / IS 6623 HSFG sets, the EN 14399-6 and DASt 021 washers with EN 14399 HV / HR and tension control sets.
3. Fit the washer under whichever element turns during tightening; a chamfered washer goes with its chamfer towards the bolt head under the head, or towards the nut under the nut, so that it clears the under-head radius.

Where it is used

• steel bridges, flyovers and plant structures bolted with M39 to M72 HV sets to DASt 021
• transmission towers and substations
• pre-engineered buildings and crane girders

Other versions and series

• TVS Sundram Fasteners Plain Washers, ISO 7089 (200 to 300 HV) - M4 to M64, price on request
• TVS Sundram Fasteners Plain Washers, ISO 7089 (300 to 370 HV) - M4 to M64, price on request
• TVS Sundram Fasteners Plain Washers Large Series, ISO 7093-1 (200 to 300 HV) - M4 to M36, price on request
• TVS Sundram Fasteners Plain Washers Large Series, ISO 7093-1 (300 to 370 HV) - M4 to M36, price on request
• TVS Sundram Fasteners Plain Hole Circular Washers, IS 6649 - M16 to M36, price on request
• TVS Sundram Fasteners Chamfered Washers, DIN EN 14399-6 - M12 to M36, price on request

Related products

• TVS Sundram Fasteners Hex Head Bolts, ISO 4014 metric - the bolts these washers go under
• TVS Sundram Fasteners Hex Nuts, ISO 4032 metric - the nuts they seat
• TVS Sundram Fasteners HSFG Bolts, IS 3757 - HSFG bolts
• TVS Sundram Fasteners Tension Control Bolt Assembly - tension control bolts

Frequently asked questions

What is the price of Chamfered Washers, DASt 021?

It is supplied at a price on request. Send the sizes, grade, finish and quantity to Jai Enterprises on +91 9340081159 and we will quote from the current SFL list.

Why a chamfered washer?

These washers follow the EN 14399-6 pattern in the M39 to M72 sizes covered by DASt-Richtlinie 021: hardened to 300 to 370 HV to carry the preload of a 10.9 structural bolt, with the chamfer clearing the radius under the bolt head so the head seats squarely.

Are TVS Chamfered Washers, DASt 021 available in Chhattisgarh?

Yes. Jai Enterprises, an authorised distributor of TVS Sundram Fasteners, supplies from Bhilai and Raipur all over Chhattisgarh and across India. Call +91 9340081159 or use the enquiry form.

Can I get a different finish or a non-listed size?

Yes. The standard finishes are zinc phosphate, trivalent iridescent, trivalent white, hot dip galvanised and zinc flake coating (Geomet / Magni / Delta); other finishes and sizes or lengths outside the range are quoted on enquiry from SFL.

How to order

Call Jai Enterprises on +91 9340081159 or send an enquiry with the sizes, hardness, finish and quantity of Chamfered Washers, DASt 021 you need; they are supplied at a price on request. We supply from Bhilai and Raipur all over Chhattisgarh - Bhilai, Raipur, Durg, Korba, Bilaspur, Raigarh, Jagdalpur, Kanker, Ambikapur and every other district - and across India.
