Indoor 11kV(E) Termination Kit - Model HST
Raychem RPG 11kV(E) Indoor Termination Kits. 24 part codes, Rs 1,910 - 8,080 per unit.
Rs 1,910 - 8,080

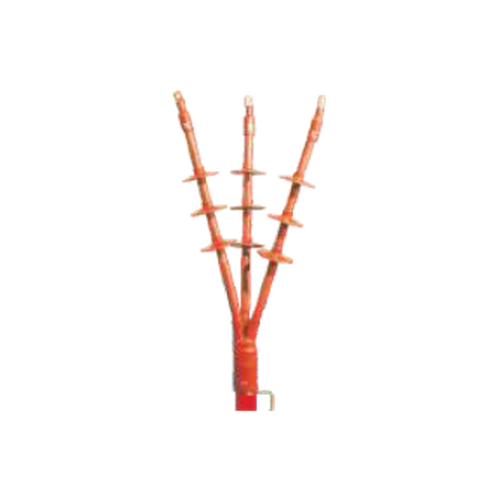

Indoor 11kV(E) Termination Kit - Model HST is an 11 kV indoor cable termination kit range from Raychem RPG. It is supplied as 24 separate items, one for each cable size and core count, covering 35 to 1000 sq mm. Each item has its own part code and its own price - Rs 1,910 to Rs 8,080 across the range, list prices effective 01-04-2026 and exclusive of GST.
Find your cable size in the table below and open that item for its full specification, price and availability. If you are not sure which one you need, send us the cable specification and we will confirm it - call +91 7300249139 or email support@jaient.in.
Key Features
- Conforms to IS 13573-2
- Conforms to IS 13573-2
- Suitable for voltage upto 11 kV,
- Suitable for voltage upto 11 kV, cable range of 35 - 1000 Sq. mm.
- Suitable for XLPE Power Cables
- Suitable for XLPE Power Cables
- Built-in Tin plated Cu earthing braid
- Built-in Tin plated Cu earthing braid
- Connector Type - Al Crimp
- Connector Type - Al Crimp
- Sleeve type: Tubular
- Sleeve type: Tubular
All 24 items in this range
| Cable size (sq. mm) | Configuration | Part code (PCN) | List price (INR) | Open item |
|---|---|---|---|---|
| 35 | 1 Core | AAA3417020 | 1,910 | View AAA3417020 |
| 35 | 3 Core | AAA4417054 | 5,360 | View AAA4417054 |
| 50 | 1 Core | AAA3419016 | 2,000 | View AAA3419016 |
| 50 | 3 Core | AAA4419054 | 5,750 | View AAA4419054 |
| 70 | 1 Core | AAA3421016 | 2,030 | View AAA3421016 |
| 70 | 3 Core | AAA4421059 | 5,830 | View AAA4421059 |
| 95 | 1 Core | AAA3423024 | 2,150 | View AAA3423024 |
| 95 | 3 Core | AAA4423093 | 5,930 | View AAA4423093 |
| 120 | 1 Core | AAA3425022 | 2,180 | View AAA3425022 |
| 120 | 3 Core | AAA4425096 | 5,970 | View AAA4425096 |
| 150 | 1 Core | AAA3427022 | 2,210 | View AAA3427022 |
| 150 | 3 Core | AAA4427083 | 6,120 | View AAA4427083 |
| 185 | 1 Core | AAA3429024 | 2,360 | View AAA3429024 |
| 185 | 3 Core | AAA4429145 | 6,270 | View AAA4429145 |
| 240 | 1 Core | AAA3433030 | 2,450 | View AAA3433030 |
| 240 | 3 Core | AAA4433137 | 6,360 | View AAA4433137 |
| 300 | 1 Core | AAA3435030 | 2,730 | View AAA3435030 |
| 300 | 3 Core | AAA4435171 | 6,780 | View AAA4435171 |
| 400 | 1 Core | AAA3437034 | 3,060 | View AAA3437034 |
| 400 | 3 Core | AAA4437098 | 8,080 | View AAA4437098 |
| 500 | 1 Core | AAA3439036 | 3,420 | View AAA3439036 |
| 630 | 1 Core | AAA3441057 | 4,030 | View AAA3441057 |
| 800 | 1 Core | AAA3443018 | 4,420 | View AAA3443018 |
| 1000 | 1 Core | AAA3445038 | 5,780 | View AAA3445038 |
Applications
Used in Commercial, Power and Network, Renewable energy, Utility, Oil and Gas Petrochemical, Railways.
Related products
- Outdoor 11kV(E) Termination Kit - Model HST — the outdoor version of the same kit
- Indoor 11kV(E) Termination Kit - Model EPKT-S — the Model EPKT-S variant
- Indoor 11kV(E) Termination Kit - Model EPKT-C — the Model EPKT-C variant
- Indoor 11kV(E) Termination Kit - Model EPKT-C-CU — the Model EPKT-C-CU variant
- Indoor 11kV(E) Termination Kit - Model HVT-M — the Model HVT-M variant
Frequently Asked Questions
How do I choose the right Indoor 11kV(E) Termination Kit for my cable?
Match the conductor cross-section to the range in the ordering table — the sizes here run from 35 to 1000 sq mm. Each size has its own part code; order the one whose range brackets your cable. The kit differs by core count as well — 1 Core and 3 Core are separate part codes at different prices.
Raychem RPG list prices in INR, effective 01-04-2026, exclusive of taxes. Catalogue page 24.
Applications
Availability: Enquiry-based — contact us for stock and lead time.
