Indoor 11kV(E) Termination Kit - Model HVT-M
Raychem RPG 11kV(E) Indoor Termination Kits. 24 part codes, Rs 2,830 - 11,800 per unit.
Rs 2,830 - 11,800

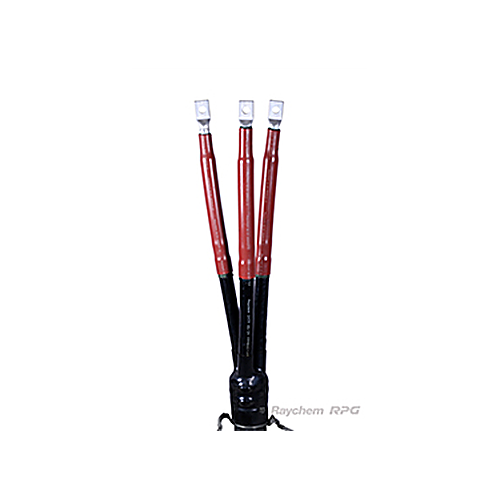

Indoor 11kV(E) Termination Kit - Model HVT-M is an 11 kV indoor cable termination kit range from Raychem RPG. It is supplied as 24 separate items, one for each cable size and core count, covering 35 to 1000 sq mm. Each item has its own part code and its own price - Rs 2,830 to Rs 11,800 across the range, list prices effective 01-04-2026 and exclusive of GST.
Find your cable size in the table below and open that item for its full specification, price and availability. If you are not sure which one you need, send us the cable specification and we will confirm it - call +91 7300249139 or email support@jaient.in.
Key Features
- Conforms to IS 13573-2
- Conforms to IS 13573-2
- Suitable for voltage upto 11 kV,
- Suitable for voltage upto 11 kV, cable range of 35 - 1000 Sq. mm.
- Suitable for XLPE Power Cables
- Suitable for XLPE Power Cables
- Built-in Tin plated Cu earthing braid
- Built-in Tin plated Cu earthing braid
- Connector Type - Al Crimp
- Connector Type - Al Crimp
- Sleeve type: Tubular
- Sleeve type: Tubular
All 24 items in this range
| Cable size (sq. mm) | Configuration | Part code (PCN) | List price (INR) | Open item |
|---|---|---|---|---|
| 35 | 1 Core | AAA3417019 | 2,830 | View AAA3417019 |
| 35 | 3 Core | AAA4417049 | 7,860 | View AAA4417049 |
| 50 | 1 Core | AAA3419014 | 2,890 | View AAA3419014 |
| 50 | 3 Core | AAA4419051 | 7,950 | View AAA4419051 |
| 70 | 1 Core | AAA3421015 | 2,920 | View AAA3421015 |
| 70 | 3 Core | AAA4421057 | 8,030 | View AAA4421057 |
| 95 | 1 Core | AAA3423022 | 2,980 | View AAA3423022 |
| 95 | 3 Core | AAA4423084 | 8,140 | View AAA4423084 |
| 120 | 1 Core | AAA3425021 | 3,040 | View AAA3425021 |
| 120 | 3 Core | AAA4425087 | 8,170 | View AAA4425087 |
| 150 | 1 Core | AAA3427021 | 3,120 | View AAA3427021 |
| 150 | 3 Core | AAA4427078 | 8,720 | View AAA4427078 |
| 185 | 1 Core | AAA3429021 | 3,270 | View AAA3429021 |
| 185 | 3 Core | AAA4429135 | 8,820 | View AAA4429135 |
| 240 | 1 Core | AAA3433028 | 3,760 | View AAA3433028 |
| 240 | 3 Core | AAA4433130 | 8,900 | View AAA4433130 |
| 300 | 1 Core | AAA3435029 | 3,820 | View AAA3435029 |
| 300 | 3 Core | AAA4435156 | 9,780 | View AAA4435156 |
| 400 | 1 Core | AAA3437033 | 4,130 | View AAA3437033 |
| 400 | 3 Core | AAA4437091 | 11,800 | View AAA4437091 |
| 500 | 1 Core | AAA3439030 | 4,740 | View AAA3439030 |
| 630 | 1 Core | AAA3441051 | 5,470 | View AAA3441051 |
| 800 | 1 Core | AAA3443014 | 5,950 | View AAA3443014 |
| 1000 | 1 Core | AAA3445035 | 7,510 | View AAA3445035 |
Applications
Used in Commercial, Power and Network, Renewable energy, Utility, Oil and Gas Petrochemical, Railways.
Related products
- Outdoor 11kV(E) Termination Kit - Model HVT-M — the outdoor version of the same kit
- Indoor 33kV(E) Termination Kit - Model HVT-M — the same kit at another voltage class
- Outdoor 33kV(E) Termination Kit - Model HVT-M — the same kit at another voltage class
- Indoor 11kV(E) Termination Kit - Model EPKT-S — the Model EPKT-S variant
- Indoor 11kV(E) Termination Kit - Model EPKT-C — the Model EPKT-C variant
- Indoor 11kV(E) Termination Kit - Model EPKT-C-CU — the Model EPKT-C-CU variant
Frequently Asked Questions
How do I choose the right Indoor 11kV(E) Termination Kit for my cable?
Match the conductor cross-section to the range in the ordering table — the sizes here run from 35 to 1000 sq mm. Each size has its own part code; order the one whose range brackets your cable. The kit differs by core count as well — 1 Core and 3 Core are separate part codes at different prices.
Raychem RPG list prices in INR, effective 01-04-2026, exclusive of taxes. Catalogue page 24.
Applications
Availability: Enquiry-based — contact us for stock and lead time.
