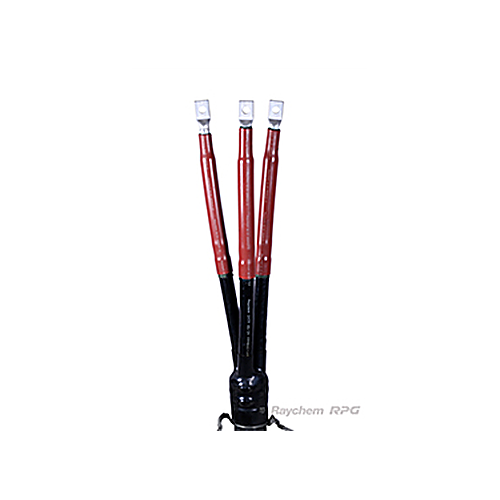

Outdoor 33kV(E) Termination Kit - Model HVT-M
Raychem RPG 33kV(E) Outdoor Termination Kits. 24 part codes, Rs 7,140 - 29,250 per unit.
Rs 7,140 - 29,250
Outdoor 33kV(E) Termination Kit - Model HVT-M is a 33 kV outdoor cable termination kit range from Raychem RPG. It is supplied as 24 separate items, one for each cable size and core count, covering 35 to 1000 sq mm. Each item has its own part code and its own price - Rs 7,140 to Rs 29,250 across the range, list prices effective 01-04-2026 and exclusive of GST.
Find your cable size in the table below and open that item for its full specification, price and availability. If you are not sure which one you need, send us the cable specification and we will confirm it - call +91 7300249139 or email support@jaient.in.
Key Features
- Conforms to IS 13573-2
- Suitable for voltage upto 33 kV, cable range of 35 - 1000 Sq. mm.
- Suitable for XLPE Power Cables
- Built-in Tin plated Cu earthing braid
- Connector Type - Al Crimp
- Sleeve type: Tubular
- Indoor & Outdoor both versions come with rain skirts
All 24 items in this range
| Cable size (sq. mm) | Configuration | Part code (PCN) | List price (INR) | Open item |
|---|---|---|---|---|
| 35 | 1 Core | AAA5717007 | 7,140 | View AAA5717007 |
| 35 | 3 Core | AAA6717017 | 20,550 | View AAA6717017 |
| 50 | 1 Core | AAA5719014 | 7,340 | View AAA5719014 |
| 50 | 3 Core | AAA6719013 | 21,150 | View AAA6719013 |
| 70 | 1 Core | AAA5721010 | 7,430 | View AAA5721010 |
| 70 | 3 Core | AAA6721015 | 22,900 | View AAA6721015 |
| 95 | 1 Core | AAA5723016 | 7,480 | View AAA5723016 |
| 95 | 3 Core | AAA6723024 | 24,050 | View AAA6723024 |
| 120 | 1 Core | AAA5725020 | 7,540 | View AAA5725020 |
| 120 | 3 Core | AAA6725019 | 24,200 | View AAA6725019 |
| 150 | 1 Core | AAA5727015 | 7,600 | View AAA5727015 |
| 150 | 3 Core | AAA6727019 | 24,350 | View AAA6727019 |
| 185 | 1 Core | AAA5729025 | 7,670 | View AAA5729025 |
| 185 | 3 Core | AAA6729031 | 24,450 | View AAA6729031 |
| 240 | 1 Core | AAA5733020 | 7,790 | View AAA5733020 |
| 240 | 3 Core | AAA6733034 | 24,900 | View AAA6733034 |
| 300 | 1 Core | AAA5735027 | 9,280 | View AAA5735027 |
| 300 | 3 Core | AAA6735057 | 25,750 | View AAA6735057 |
| 400 | 1 Core | AAA5737027 | 9,620 | View AAA5737027 |
| 400 | 3 Core | AAA6737122 | 29,250 | View AAA6737122 |
| 500 | 1 Core | AAA5739024 | 11,450 | View AAA5739024 |
| 630 | 1 Core | AAA5741031 | 11,450 | View AAA5741031 |
| 800 | 1 Core | AAA5743012 | 12,700 | View AAA5743012 |
| 1000 | 1 Core | AAA5745023 | 15,100 | View AAA5745023 |
Applications
Used in Commercial, Power and Network, Renewable energy, Utility, Oil and Gas Petrochemical, Railways.
Related products
- Indoor 33kV(E) Termination Kit - Model HVT-M — the indoor version of the same kit
- Indoor 11kV(E) Termination Kit - Model HVT-M — the same kit at another voltage class
- Outdoor 11kV(E) Termination Kit - Model HVT-M — the same kit at another voltage class
- Outdoor 33kV(E) Termination Kit - Model EPKT-S — the Model EPKT-S variant
- Outdoor 33kV(E) Termination Kit - Model EPKT-C — the Model EPKT-C variant
- Outdoor 33kV(E) Termination Kit - Model EPKT-C-CU — the Model EPKT-C-CU variant
Frequently Asked Questions
How do I choose the right Outdoor 33kV(E) Termination Kit for my cable?
Match the conductor cross-section to the range in the ordering table — the sizes here run from 35 to 1000 sq mm. Each size has its own part code; order the one whose range brackets your cable. The kit differs by core count as well — 1 Core and 3 Core are separate part codes at different prices.
Raychem RPG list prices in INR, effective 01-04-2026, exclusive of taxes. Catalogue page 30.
Applications
Availability: Enquiry-based — contact us for stock and lead time.
