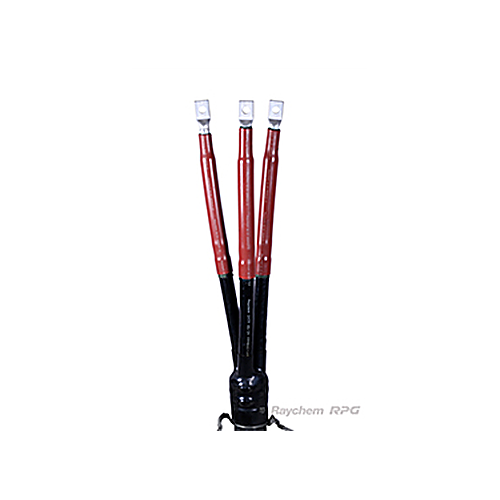

Outdoor 33kV(E) Termination Kit - Model EPKT-S
Raychem RPG 33kV(E) Outdoor Termination Kits. 24 part codes, Rs 9,380 - 44,900 per unit.
Rs 9,380 - 44,900
Outdoor 33kV(E) Termination Kit - Model EPKT-S is a 33 kV outdoor cable termination kit range from Raychem RPG. It is supplied as 24 separate items, one for each cable size and core count, covering 35 to 1000 sq mm. Each item has its own part code and its own price - Rs 9,380 to Rs 44,900 across the range, list prices effective 01-04-2026 and exclusive of GST.
Find your cable size in the table below and open that item for its full specification, price and availability. If you are not sure which one you need, send us the cable specification and we will confirm it - call +91 7300249139 or email support@jaient.in.
Key Features
- Conforms to IS 13573-2
- Suitable for voltage upto 33 kV, cable range of 35 - 1000 Sq. mm.
- Suitable for XLPE Power Cables
- Built-in Tin plated Cu earthing braid
- Connector Type - Al Crimp
- Sleeve type: Tubular
- Indoor & Outdoor both versions come with rain skirts
All 24 items in this range
| Cable size (sq. mm) | Configuration | Part code (PCN) | List price (INR) | Open item |
|---|---|---|---|---|
| 35 | 1 Core | AAA5717005 | 9,380 | View AAA5717005 |
| 35 | 3 Core | AAA6717015 | 31,200 | View AAA6717015 |
| 50 | 1 Core | AAA5719012 | 9,460 | View AAA5719012 |
| 50 | 3 Core | AAA6719011 | 33,400 | View AAA6719011 |
| 70 | 1 Core | AAA5721008 | 9,660 | View AAA5721008 |
| 70 | 3 Core | AAA6721013 | 33,450 | View AAA6721013 |
| 95 | 1 Core | AAA5723014 | 9,710 | View AAA5723014 |
| 95 | 3 Core | AAA6723022 | 33,750 | View AAA6723022 |
| 120 | 1 Core | AAA5725018 | 9,790 | View AAA5725018 |
| 120 | 3 Core | AAA6725017 | 35,050 | View AAA6725017 |
| 150 | 1 Core | AAA5727013 | 9,850 | View AAA5727013 |
| 150 | 3 Core | AAA6727017 | 35,100 | View AAA6727017 |
| 185 | 1 Core | AAA5729023 | 9,900 | View AAA5729023 |
| 185 | 3 Core | AAA6729029 | 35,400 | View AAA6729029 |
| 240 | 1 Core | AAA5733019 | 10,650 | View AAA5733019 |
| 240 | 3 Core | AAA6733032 | 35,650 | View AAA6733032 |
| 300 | 1 Core | AAA5735025 | 12,900 | View AAA5735025 |
| 300 | 3 Core | AAA6735055 | 42,300 | View AAA6735055 |
| 400 | 1 Core | AAA5737025 | 13,300 | View AAA5737025 |
| 400 | 3 Core | AAA6737120 | 44,900 | View AAA6737120 |
| 500 | 1 Core | AAA5739022 | 13,850 | View AAA5739022 |
| 630 | 1 Core | AAA5741029 | 15,950 | View AAA5741029 |
| 800 | 1 Core | AAA5743010 | 16,150 | View AAA5743010 |
| 1000 | 1 Core | AAA5745021 | 18,050 | View AAA5745021 |
Applications
Used in Commercial, Power and Network, Renewable energy, Utility, Oil and Gas Petrochemical, Railways.
Related products
- Indoor 33kV(E) Termination Kit - Model EPKT-S — the indoor version of the same kit
- Indoor 11kV(E) Termination Kit - Model EPKT-S — the same kit at another voltage class
- Outdoor 11kV(E) Termination Kit - Model EPKT-S — the same kit at another voltage class
- Outdoor 33kV(E) Termination Kit - Model EPKT-C — the Model EPKT-C variant
- Outdoor 33kV(E) Termination Kit - Model EPKT-C-CU — the Model EPKT-C-CU variant
- Outdoor 33kV(E) Termination Kit - Model HVT-M — the Model HVT-M variant
Frequently Asked Questions
How do I choose the right Outdoor 33kV(E) Termination Kit for my cable?
Match the conductor cross-section to the range in the ordering table — the sizes here run from 35 to 1000 sq mm. Each size has its own part code; order the one whose range brackets your cable. The kit differs by core count as well — 1 Core and 3 Core are separate part codes at different prices.
Raychem RPG list prices in INR, effective 01-04-2026, exclusive of taxes. Catalogue page 28.
Applications
Availability: Enquiry-based — contact us for stock and lead time.
