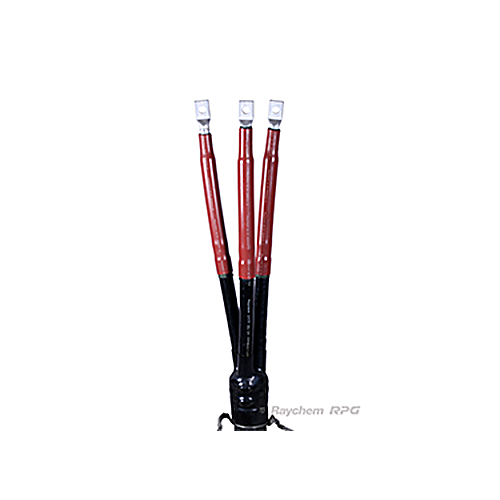

Outdoor 11kV(E) Termination Kit - Model EPKT-S
Raychem RPG 11kV(E) Outdoor Termination Kits. 24 part codes, Rs 5,010 - 25,450 per unit.
Rs 5,010 - 25,450
Outdoor 11kV(E) Termination Kit - Model EPKT-S is an 11 kV outdoor cable termination kit range from Raychem RPG. It is supplied as 24 separate items, one for each cable size and core count, covering 35 to 1000 sq mm. Each item has its own part code and its own price - Rs 5,010 to Rs 25,450 across the range, list prices effective 01-04-2026 and exclusive of GST.
Find your cable size in the table below and open that item for its full specification, price and availability. If you are not sure which one you need, send us the cable specification and we will confirm it - call +91 7300249139 or email support@jaient.in.
Key Features
- Conforms to IS 13573-2
- Suitable for voltage upto 11 kV cable range of 35 - 1000 Sq. mm.
- Suitable for XLPE Power Cables
- Built-in Tin plated Cu earthing braid
- Connector Type - Al Crimp
- Sleeve Type: Tubular
All 24 items in this range
| Cable size (sq. mm) | Configuration | Part code (PCN) | List price (INR) | Open item |
|---|---|---|---|---|
| 35 | 1 Core | AAA5417009 | 5,010 | View AAA5417009 |
| 35 | 3 Core | AAA6417053 | 15,450 | View AAA6417053 |
| 50 | 1 Core | AAA5419013 | 6,190 | View AAA5419013 |
| 50 | 3 Core | AAA6419043 | 19,600 | View AAA6419043 |
| 70 | 1 Core | AAA5421013 | 6,470 | View AAA5421013 |
| 70 | 3 Core | AAA6421046 | 19,650 | View AAA6421046 |
| 95 | 1 Core | AAA5423029 | 6,660 | View AAA5423029 |
| 95 | 3 Core | AAA6423076 | 19,950 | View AAA6423076 |
| 120 | 1 Core | AAA5425023 | 6,740 | View AAA5425023 |
| 120 | 3 Core | AAA6425079 | 20,850 | View AAA6425079 |
| 150 | 1 Core | AAA5427017 | 6,800 | View AAA5427017 |
| 150 | 3 Core | AAA6427060 | 21,000 | View AAA6427060 |
| 185 | 1 Core | AAA5443004 | 6,850 | View AAA5443004 |
| 185 | 3 Core | AAA6429093 | 22,350 | View AAA6429093 |
| 240 | 1 Core | AAA5433017 | 7,240 | View AAA5433017 |
| 240 | 3 Core | AAA6433085 | 23,150 | View AAA6433085 |
| 300 | 1 Core | AAA5435012 | 7,430 | View AAA5435012 |
| 300 | 3 Core | AAA6435119 | 23,600 | View AAA6435119 |
| 400 | 1 Core | AAA5437011 | 7,900 | View AAA5437011 |
| 400 | 3 Core | AAA6437059 | 25,450 | View AAA6437059 |
| 500 | 1 Core | AAA5439009 | 7,950 | View AAA5439009 |
| 630 | 1 Core | AAA5441015 | 9,790 | View AAA5441015 |
| 800 | 1 Core | AAA5443005 | 11,200 | View AAA5443005 |
| 1000 | 1 Core | AAA5445017 | 11,900 | View AAA5445017 |
Applications
Used in Commercial, Power and Network, Renewable energy, Utility, Oil and Gas Petrochemical, Railways.
Related products
- Indoor 11kV(E) Termination Kit - Model EPKT-S — the indoor version of the same kit
- Indoor 33kV(E) Termination Kit - Model EPKT-S — the same kit at another voltage class
- Outdoor 33kV(E) Termination Kit - Model EPKT-S — the same kit at another voltage class
- Outdoor 11kV(E) Termination Kit - Model EPKT-C — the Model EPKT-C variant
- Outdoor 11kV(E) Termination Kit - Model EPKT-C-CU — the Model EPKT-C-CU variant
- Outdoor 11kV(E) Termination Kit - Model HVT-M — the Model HVT-M variant
Frequently Asked Questions
How do I choose the right Outdoor 11kV(E) Termination Kit for my cable?
Match the conductor cross-section to the range in the ordering table — the sizes here run from 35 to 1000 sq mm. Each size has its own part code; order the one whose range brackets your cable. The kit differs by core count as well — 1 Core and 3 Core are separate part codes at different prices.
Raychem RPG list prices in INR, effective 01-04-2026, exclusive of taxes. Catalogue page 22.
Applications
Availability: Enquiry-based — contact us for stock and lead time.
