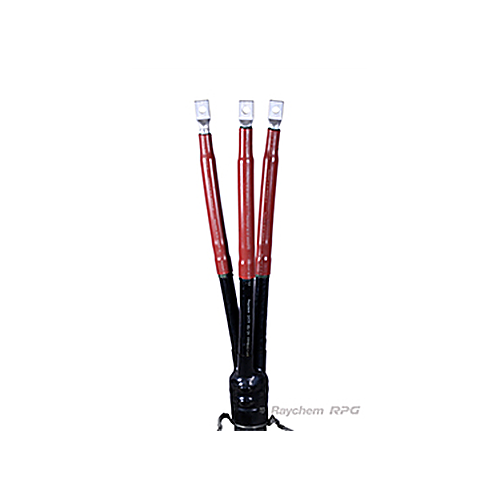

Outdoor 11kV(E) Termination Kit - Model EPKT-C
Raychem RPG 11kV(E) Outdoor Termination Kits. 24 part codes, Rs 4,730 - 21,900 per unit.
Rs 4,730 - 21,900
Outdoor 11kV(E) Termination Kit - Model EPKT-C is an 11 kV outdoor cable termination kit range from Raychem RPG. It is supplied as 24 separate items, one for each cable size and core count, covering 35 to 1000 sq mm. Each item has its own part code and its own price - Rs 4,730 to Rs 21,900 across the range, list prices effective 01-04-2026 and exclusive of GST.
Find your cable size in the table below and open that item for its full specification, price and availability. If you are not sure which one you need, send us the cable specification and we will confirm it - call +91 7300249139 or email support@jaient.in.
Key Features
- Conforms to IS 13573-2
- Suitable for voltage upto 11 kV cable range of 35 - 1000 Sq. mm.
- Suitable for XLPE Power Cables
- Built-in Tin plated Cu earthing braid
- Connector Type - Al Crimp
- Sleeve Type: Tubular
All 24 items in this range
| Cable size (sq. mm) | Configuration | Part code (PCN) | List price (INR) | Open item |
|---|---|---|---|---|
| 35 | 1 Core | AAA5417008 | 4,730 | View AAA5417008 |
| 35 | 3 Core | AAA6417052 | 15,450 | View AAA6417052 |
| 50 | 1 Core | AAA5419012 | 4,760 | View AAA5419012 |
| 50 | 3 Core | AAA6419042 | 15,600 | View AAA6419042 |
| 70 | 1 Core | AAA5421012 | 4,790 | View AAA5421012 |
| 70 | 3 Core | AAA6421045 | 15,650 | View AAA6421045 |
| 95 | 1 Core | AAA5423028 | 4,980 | View AAA5423028 |
| 95 | 3 Core | AAA6423075 | 16,550 | View AAA6423075 |
| 120 | 1 Core | AAA5425022 | 5,060 | View AAA5425022 |
| 120 | 3 Core | AAA6425078 | 16,550 | View AAA6425078 |
| 150 | 1 Core | AAA5427016 | 5,060 | View AAA5427016 |
| 150 | 3 Core | AAA6427059 | 16,700 | View AAA6427059 |
| 185 | 1 Core | AAA5429014 | 5,200 | View AAA5429014 |
| 185 | 3 Core | AAA6429092 | 17,000 | View AAA6429092 |
| 240 | 1 Core | AAA5433016 | 5,750 | View AAA5433016 |
| 240 | 3 Core | AAA6433084 | 18,300 | View AAA6433084 |
| 300 | 1 Core | AAA5435011 | 6,080 | View AAA5435011 |
| 300 | 3 Core | AAA6435117 | 19,100 | View AAA6435117 |
| 400 | 1 Core | AAA5437010 | 6,520 | View AAA5437010 |
| 400 | 3 Core | AAA6437058 | 21,900 | View AAA6437058 |
| 500 | 1 Core | AAA5439008 | 6,850 | View AAA5439008 |
| 630 | 1 Core | AAA5441014 | 7,900 | View AAA5441014 |
| 800 | 1 Core | AAA5443003 | 8,940 | View AAA5443003 |
| 1000 | 1 Core | AAA5445016 | 10,450 | View AAA5445016 |
Applications
Used in Commercial, Power and Network, Renewable energy, Utility, Oil and Gas Petrochemical, Railways.
Related products
- Indoor 11kV(E) Termination Kit - Model EPKT-C — the indoor version of the same kit
- Indoor 33kV(E) Termination Kit - Model EPKT-C — the same kit at another voltage class
- Outdoor 33kV(E) Termination Kit - Model EPKT-C — the same kit at another voltage class
- Outdoor 11kV(E) Termination Kit - Model EPKT-S — the Model EPKT-S variant
- Outdoor 11kV(E) Termination Kit - Model EPKT-C-CU — the Model EPKT-C-CU variant
- Outdoor 11kV(E) Termination Kit - Model HVT-M — the Model HVT-M variant
Frequently Asked Questions
How do I choose the right Outdoor 11kV(E) Termination Kit for my cable?
Match the conductor cross-section to the range in the ordering table — the sizes here run from 35 to 1000 sq mm. Each size has its own part code; order the one whose range brackets your cable. The kit differs by core count as well — 1 Core and 3 Core are separate part codes at different prices.
Raychem RPG list prices in INR, effective 01-04-2026, exclusive of taxes. Catalogue page 22.
Applications
Availability: Enquiry-based — contact us for stock and lead time.
