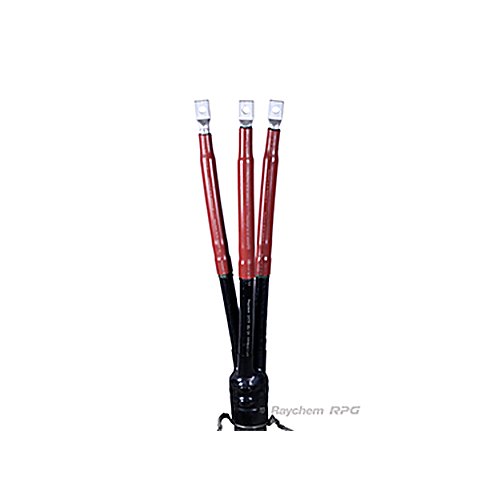

Indoor 33kV(E) Termination Kit - Model EPKT-C
Raychem RPG 33kV(E) Indoor Termination Kits. 24 part codes, Rs 5,340 - 27,200 per unit.
Rs 5,340 - 27,200
Indoor 33kV(E) Termination Kit - Model EPKT-C is a 33 kV indoor cable termination kit range from Raychem RPG. It is supplied as 24 separate items, one for each cable size and core count, covering 35 to 1000 sq mm. Each item has its own part code and its own price - Rs 5,340 to Rs 27,200 across the range, list prices effective 01-04-2026 and exclusive of GST.
Find your cable size in the table below and open that item for its full specification, price and availability. If you are not sure which one you need, send us the cable specification and we will confirm it - call +91 7300249139 or email support@jaient.in.
Key Features
- Conforms to IS 13573-2
- Suitable for voltage upto 33 kV, cable range of 35 - 1000 Sq. mm.
- Suitable for XLPE Power Cables
- Built-in Tin plated Cu earthing braid
- Connector Type - Al Crimp
- Sleeve type: Tubular
- Indoor & Outdoor both versions come with rain skirts
All 24 items in this range
| Cable size (sq. mm) | Configuration | Part code (PCN) | List price (INR) | Open item |
|---|---|---|---|---|
| 35 | 1 Core | AAA3717007 | 5,340 | View AAA3717007 |
| 35 | 3 Core | AAA4717010 | 17,000 | View AAA4717010 |
| 50 | 1 Core | AAA3719013 | 5,480 | View AAA3719013 |
| 50 | 3 Core | AAA4719018 | 17,600 | View AAA4719018 |
| 70 | 1 Core | AAA3721011 | 5,810 | View AAA3721011 |
| 70 | 3 Core | AAA4721014 | 18,500 | View AAA4721014 |
| 95 | 1 Core | AAA3723023 | 6,050 | View AAA3723023 |
| 95 | 3 Core | AAA4723025 | 20,300 | View AAA4723025 |
| 120 | 1 Core | AAA3725016 | 6,080 | View AAA3725016 |
| 120 | 3 Core | AAA4725024 | 21,450 | View AAA4725024 |
| 150 | 1 Core | AAA3727016 | 6,160 | View AAA3727016 |
| 150 | 3 Core | AAA4727021 | 21,550 | View AAA4727021 |
| 185 | 1 Core | AAA3729027 | 6,220 | View AAA3729027 |
| 185 | 3 Core | AAA4729032 | 22,050 | View AAA4729032 |
| 240 | 1 Core | AAA3733030 | 6,410 | View AAA3733030 |
| 240 | 3 Core | AAA4733037 | 22,100 | View AAA4733037 |
| 300 | 1 Core | AAA3735042 | 7,100 | View AAA3735042 |
| 300 | 3 Core | AAA4735066 | 25,850 | View AAA4735066 |
| 400 | 1 Core | AAA3737036 | 7,570 | View AAA3737036 |
| 400 | 3 Core | AAA4737106 | 27,200 | View AAA4737106 |
| 500 | 1 Core | AAA3739032 | 8,960 | View AAA3739032 |
| 630 | 1 Core | AAA3741049 | 11,000 | View AAA3741049 |
| 800 | 1 Core | AAA3743016 | 11,300 | View AAA3743016 |
| 1000 | 1 Core | AAA3745021 | 12,900 | View AAA3745021 |
Applications
Used in Commercial, Power and Network, Renewable energy, Utility, Oil and Gas Petrochemical, Railways.
Related products
- Outdoor 33kV(E) Termination Kit - Model EPKT-C — the outdoor version of the same kit
- Indoor 11kV(E) Termination Kit - Model EPKT-C — the same kit at another voltage class
- Outdoor 11kV(E) Termination Kit - Model EPKT-C — the same kit at another voltage class
- Indoor 33kV(E) Termination Kit - Model EPKT-S — the Model EPKT-S variant
- Indoor 33kV(E) Termination Kit - Model EPKT-C-CU — the Model EPKT-C-CU variant
- Indoor 33kV(E) Termination Kit - Model HVT-M — the Model HVT-M variant
Frequently Asked Questions
How do I choose the right Indoor 33kV(E) Termination Kit for my cable?
Match the conductor cross-section to the range in the ordering table — the sizes here run from 35 to 1000 sq mm. Each size has its own part code; order the one whose range brackets your cable. The kit differs by core count as well — 1 Core and 3 Core are separate part codes at different prices.
Raychem RPG list prices in INR, effective 01-04-2026, exclusive of taxes. Catalogue page 28.
Applications
Availability: Enquiry-based — contact us for stock and lead time.
