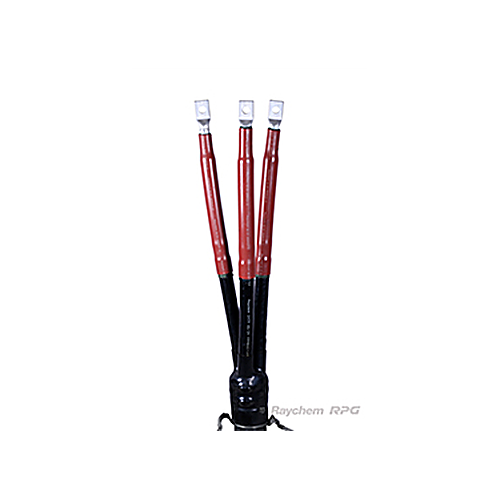

Indoor 33kV(E) Termination Kit - Model EPKT-S
Raychem RPG 33kV(E) Indoor Termination Kits. 24 part codes, Rs 6,470 - 31,250 per unit.
Rs 6,470 - 31,250
Indoor 33kV(E) Termination Kit - Model EPKT-S is a 33 kV indoor cable termination kit range from Raychem RPG. It is supplied as 24 separate items, one for each cable size and core count, covering 35 to 1000 sq mm. Each item has its own part code and its own price - Rs 6,470 to Rs 31,250 across the range, list prices effective 01-04-2026 and exclusive of GST.
Find your cable size in the table below and open that item for its full specification, price and availability. If you are not sure which one you need, send us the cable specification and we will confirm it - call +91 7300249139 or email support@jaient.in.
Key Features
- Conforms to IS 13573-2
- Suitable for voltage upto 33 kV, cable range of 35 - 1000 Sq. mm.
- Suitable for XLPE Power Cables
- Built-in Tin plated Cu earthing braid
- Connector Type - Al Crimp
- Sleeve type: Tubular
- Indoor & Outdoor both versions come with rain skirts
All 24 items in this range
| Cable size (sq. mm) | Configuration | Part code (PCN) | List price (INR) | Open item |
|---|---|---|---|---|
| 35 | 1 Core | AAA3717006 | 6,470 | View AAA3717006 |
| 35 | 3 Core | AAA4717009 | 20,700 | View AAA4717009 |
| 50 | 1 Core | AAA3719012 | 6,520 | View AAA3719012 |
| 50 | 3 Core | AAA4719017 | 22,500 | View AAA4719017 |
| 70 | 1 Core | AAA3721010 | 6,850 | View AAA3721010 |
| 70 | 3 Core | AAA4721013 | 22,800 | View AAA4721013 |
| 95 | 1 Core | AAA3723022 | 6,930 | View AAA3723022 |
| 95 | 3 Core | AAA4723024 | 23,000 | View AAA4723024 |
| 120 | 1 Core | AAA3725015 | 6,990 | View AAA3725015 |
| 120 | 3 Core | AAA4725023 | 23,700 | View AAA4725023 |
| 150 | 1 Core | AAA3727015 | 7,040 | View AAA3727015 |
| 150 | 3 Core | AAA4727020 | 24,000 | View AAA4727020 |
| 185 | 1 Core | AAA3729026 | 7,150 | View AAA3729026 |
| 185 | 3 Core | AAA4729031 | 24,350 | View AAA4729031 |
| 240 | 1 Core | AAA3733029 | 7,950 | View AAA3733029 |
| 240 | 3 Core | AAA4733036 | 25,450 | View AAA4733036 |
| 300 | 1 Core | AAA3735041 | 8,360 | View AAA3735041 |
| 300 | 3 Core | AAA4735065 | 28,950 | View AAA4735065 |
| 400 | 1 Core | AAA3737035 | 9,520 | View AAA3737035 |
| 400 | 3 Core | AAA4737105 | 31,250 | View AAA4737105 |
| 500 | 1 Core | AAA3739031 | 10,100 | View AAA3739031 |
| 630 | 1 Core | AAA3741048 | 12,200 | View AAA3741048 |
| 800 | 1 Core | AAA3743015 | 12,550 | View AAA3743015 |
| 1000 | 1 Core | AAA3745020 | 14,550 | View AAA3745020 |
Applications
Used in Commercial, Power and Network, Renewable energy, Utility, Oil and Gas Petrochemical, Railways.
Related products
- Outdoor 33kV(E) Termination Kit - Model EPKT-S — the outdoor version of the same kit
- Indoor 11kV(E) Termination Kit - Model EPKT-S — the same kit at another voltage class
- Outdoor 11kV(E) Termination Kit - Model EPKT-S — the same kit at another voltage class
- Indoor 33kV(E) Termination Kit - Model EPKT-C — the Model EPKT-C variant
- Indoor 33kV(E) Termination Kit - Model EPKT-C-CU — the Model EPKT-C-CU variant
- Indoor 33kV(E) Termination Kit - Model HVT-M — the Model HVT-M variant
Frequently Asked Questions
How do I choose the right Indoor 33kV(E) Termination Kit for my cable?
Match the conductor cross-section to the range in the ordering table — the sizes here run from 35 to 1000 sq mm. Each size has its own part code; order the one whose range brackets your cable. The kit differs by core count as well — 1 Core and 3 Core are separate part codes at different prices.
Raychem RPG list prices in INR, effective 01-04-2026, exclusive of taxes. Catalogue page 28.
Applications
Availability: Enquiry-based — contact us for stock and lead time.
