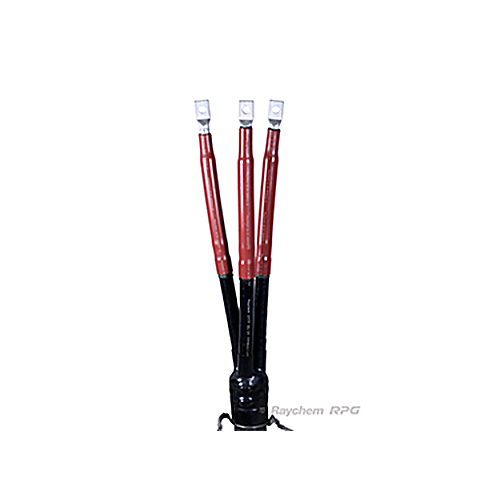

Indoor 11kV(E) Termination Kit - Model EPKT-S
Raychem RPG 11kV(E) Indoor Termination Kits. 24 part codes, Rs 3,830 - 17,350 per unit.
Rs 3,830 - 17,350
Indoor 11kV(E) Termination Kit - Model EPKT-S is an 11 kV indoor cable termination kit range from Raychem RPG. It is supplied as 24 separate items, one for each cable size and core count, covering 35 to 1000 sq mm. Each item has its own part code and its own price - Rs 3,830 to Rs 17,350 across the range, list prices effective 01-04-2026 and exclusive of GST.
Find your cable size in the table below and open that item for its full specification, price and availability. If you are not sure which one you need, send us the cable specification and we will confirm it - call +91 7300249139 or email support@jaient.in.
Key Features
- Conforms to IS 13573-2
- Suitable for voltage upto 11 kV cable range of 35 - 1000 Sq. mm.
- Suitable for XLPE Power Cables
- Built-in Tin plated Cu earthing braid
- Connector Type - Al Crimp
- Sleeve Type: Tubular
All 24 items in this range
| Cable size (sq. mm) | Configuration | Part code (PCN) | List price (INR) | Open item |
|---|---|---|---|---|
| 35 | 1 Core | AAA3417018 | 3,830 | View AAA3417018 |
| 35 | 3 Core | AAA4417048 | 10,850 | View AAA4417048 |
| 50 | 1 Core | AAA3419013 | 3,850 | View AAA3419013 |
| 50 | 3 Core | AAA4419050 | 11,300 | View AAA4419050 |
| 70 | 1 Core | AAA4421056 | 4,100 | View AAA4421056 |
| 70 | 3 Core | AAA4421055 | 11,450 | View AAA4421055 |
| 95 | 1 Core | AAA3423021 | 4,270 | View AAA3423021 |
| 95 | 3 Core | AAA4423083 | 11,700 | View AAA4423083 |
| 120 | 1 Core | AAA3425020 | 4,350 | View AAA3425020 |
| 120 | 3 Core | AAA4425086 | 12,600 | View AAA4425086 |
| 150 | 1 Core | AAA3427020 | 4,400 | View AAA3427020 |
| 150 | 3 Core | AAA4427077 | 12,750 | View AAA4427077 |
| 185 | 1 Core | AAA3429020 | 4,680 | View AAA3429020 |
| 185 | 3 Core | AAA4429134 | 14,250 | View AAA4429134 |
| 240 | 1 Core | AAA3433027 | 5,090 | View AAA3433027 |
| 240 | 3 Core | AAA4433129 | 15,050 | View AAA4433129 |
| 300 | 1 Core | AAA3435028 | 5,200 | View AAA3435028 |
| 300 | 3 Core | AAA4435155 | 15,550 | View AAA4435155 |
| 400 | 1 Core | AAA3437032 | 5,700 | View AAA3437032 |
| 400 | 3 Core | AAA4437090 | 17,350 | View AAA4437090 |
| 500 | 1 Core | AAA3439029 | 6,050 | View AAA3439029 |
| 630 | 1 Core | AAA3441049 | 7,790 | View AAA3441049 |
| 800 | 1 Core | AAA3443013 | 8,200 | View AAA3443013 |
| 1000 | 1 Core | AAA3445034 | 9,200 | View AAA3445034 |
Applications
Used in Commercial, Power and Network, Renewable energy, Utility, Oil and Gas Petrochemical, Railways.
Related products
- Outdoor 11kV(E) Termination Kit - Model EPKT-S — the outdoor version of the same kit
- Indoor 33kV(E) Termination Kit - Model EPKT-S — the same kit at another voltage class
- Outdoor 33kV(E) Termination Kit - Model EPKT-S — the same kit at another voltage class
- Indoor 11kV(E) Termination Kit - Model EPKT-C — the Model EPKT-C variant
- Indoor 11kV(E) Termination Kit - Model EPKT-C-CU — the Model EPKT-C-CU variant
- Indoor 11kV(E) Termination Kit - Model HVT-M — the Model HVT-M variant
Frequently Asked Questions
How do I choose the right Indoor 11kV(E) Termination Kit for my cable?
Match the conductor cross-section to the range in the ordering table — the sizes here run from 35 to 1000 sq mm. Each size has its own part code; order the one whose range brackets your cable. The kit differs by core count as well — 1 Core and 3 Core are separate part codes at different prices.
Raychem RPG list prices in INR, effective 01-04-2026, exclusive of taxes. Catalogue page 22.
Applications
Availability: Enquiry-based — contact us for stock and lead time.
