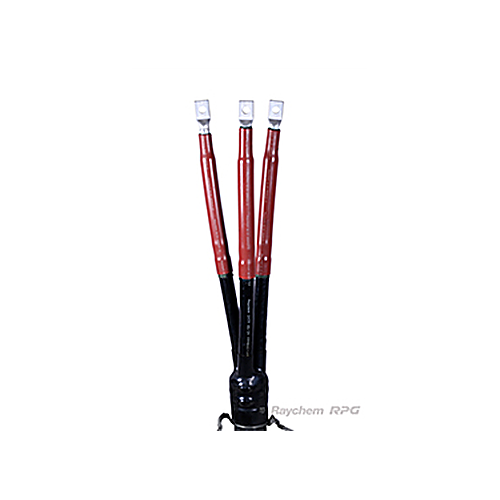

Indoor 11kV(E) Termination Kit - Model EPKT-C
Raychem RPG 11kV(E) Indoor Termination Kits. 24 part codes, Rs 3,300 - 15,750 per unit.
Rs 3,300 - 15,750
Indoor 11kV(E) Termination Kit - Model EPKT-C is an 11 kV indoor cable termination kit range from Raychem RPG. It is supplied as 24 separate items, one for each cable size and core count, covering 35 to 1000 sq mm. Each item has its own part code and its own price - Rs 3,300 to Rs 15,750 across the range, list prices effective 01-04-2026 and exclusive of GST.
Find your cable size in the table below and open that item for its full specification, price and availability. If you are not sure which one you need, send us the cable specification and we will confirm it - call +91 7300249139 or email support@jaient.in.
Key Features
- Conforms to IS 13573-2
- Suitable for voltage upto 11 kV cable range of 35 - 1000 Sq. mm.
- Suitable for XLPE Power Cables
- Built-in Tin plated Cu earthing braid
- Connector Type - Al Crimp
- Sleeve Type: Tubular
All 24 items in this range
| Cable size (sq. mm) | Configuration | Part code (PCN) | List price (INR) | Open item |
|---|---|---|---|---|
| 35 | 1 Core | AAA3417017 | 3,300 | View AAA3417017 |
| 35 | 3 Core | AAA4417047 | 10,600 | View AAA4417047 |
| 50 | 1 Core | AAA3419012 | 3,330 | View AAA3419012 |
| 50 | 3 Core | AAA4419047 | 10,650 | View AAA4419047 |
| 70 | 1 Core | AAA3421013 | 3,360 | View AAA3421013 |
| 70 | 3 Core | AAA4421054 | 10,800 | View AAA4421054 |
| 95 | 1 Core | AAA3423020 | 3,550 | View AAA3423020 |
| 95 | 3 Core | AAA4423082 | 11,100 | View AAA4423082 |
| 120 | 1 Core | AAA3425019 | 3,610 | View AAA3425019 |
| 120 | 3 Core | AAA4425085 | 11,650 | View AAA4425085 |
| 150 | 1 Core | AAA3427019 | 3,660 | View AAA3427019 |
| 150 | 3 Core | AAA4427076 | 11,800 | View AAA4427076 |
| 185 | 1 Core | AAA3429019 | 3,770 | View AAA3429019 |
| 185 | 3 Core | AAA4429133 | 12,150 | View AAA4429133 |
| 240 | 1 Core | AAA3433026 | 4,070 | View AAA3433026 |
| 240 | 3 Core | AAA4433128 | 12,650 | View AAA4433128 |
| 300 | 1 Core | AAA3435027 | 4,490 | View AAA3435027 |
| 300 | 3 Core | AAA4435153 | 13,400 | View AAA4435153 |
| 400 | 1 Core | AAA3437031 | 4,820 | View AAA3437031 |
| 400 | 3 Core | AAA4437088 | 15,750 | View AAA4437088 |
| 500 | 1 Core | AAA3439028 | 5,390 | View AAA3439028 |
| 630 | 1 Core | AAA3441048 | 6,410 | View AAA3441048 |
| 800 | 1 Core | AAA3443012 | 7,040 | View AAA3443012 |
| 1000 | 1 Core | AAA3445033 | 8,530 | View AAA3445033 |
Applications
Used in Commercial, Power and Network, Renewable energy, Utility, Oil and Gas Petrochemical, Railways.
Related products
- Outdoor 11kV(E) Termination Kit - Model EPKT-C — the outdoor version of the same kit
- Indoor 33kV(E) Termination Kit - Model EPKT-C — the same kit at another voltage class
- Outdoor 33kV(E) Termination Kit - Model EPKT-C — the same kit at another voltage class
- Indoor 11kV(E) Termination Kit - Model EPKT-S — the Model EPKT-S variant
- Indoor 11kV(E) Termination Kit - Model EPKT-C-CU — the Model EPKT-C-CU variant
- Indoor 11kV(E) Termination Kit - Model HVT-M — the Model HVT-M variant
Frequently Asked Questions
How do I choose the right Indoor 11kV(E) Termination Kit for my cable?
Match the conductor cross-section to the range in the ordering table — the sizes here run from 35 to 1000 sq mm. Each size has its own part code; order the one whose range brackets your cable. The kit differs by core count as well — 1 Core and 3 Core are separate part codes at different prices.
Raychem RPG list prices in INR, effective 01-04-2026, exclusive of taxes. Catalogue page 22.
Applications
Availability: Enquiry-based — contact us for stock and lead time.
