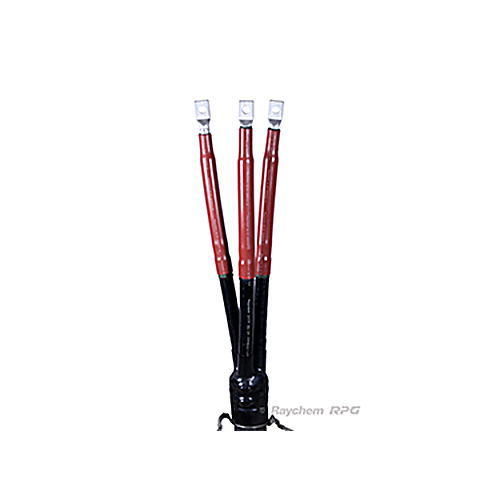

Outdoor 33kV(E) Termination Kit - Model EPKT-C
Raychem RPG 33kV(E) Outdoor Termination Kits. 24 part codes, Rs 7,140 - 34,350 per unit.
Rs 7,140 - 34,350
Outdoor 33kV(E) Termination Kit - Model EPKT-C is a 33 kV outdoor cable termination kit range from Raychem RPG. It is supplied as 24 separate items, one for each cable size and core count, covering 35 to 1000 sq mm. Each item has its own part code and its own price - Rs 7,140 to Rs 34,350 across the range, list prices effective 01-04-2026 and exclusive of GST.
Find your cable size in the table below and open that item for its full specification, price and availability. If you are not sure which one you need, send us the cable specification and we will confirm it - call +91 7300249139 or email support@jaient.in.
Key Features
- Conforms to IS 13573-2
- Suitable for voltage upto 33 kV, cable range of 35 - 1000 Sq. mm.
- Suitable for XLPE Power Cables
- Built-in Tin plated Cu earthing braid
- Connector Type - Al Crimp
- Sleeve type: Tubular
- Indoor & Outdoor both versions come with rain skirts
All 24 items in this range
| Cable size (sq. mm) | Configuration | Part code (PCN) | List price (INR) | Open item |
|---|---|---|---|---|
| 35 | 1 Core | AAA5717006 | 7,140 | View AAA5717006 |
| 35 | 3 Core | AAA6717016 | 22,450 | View AAA6717016 |
| 50 | 1 Core | AAA5719013 | 7,340 | View AAA5719013 |
| 50 | 3 Core | AAA6719012 | 23,000 | View AAA6719012 |
| 70 | 1 Core | AAA5721009 | 7,430 | View AAA5721009 |
| 70 | 3 Core | AAA6721014 | 25,300 | View AAA6721014 |
| 95 | 1 Core | AAA5723015 | 7,950 | View AAA5723015 |
| 95 | 3 Core | AAA6723023 | 27,100 | View AAA6723023 |
| 120 | 1 Core | AAA5725019 | 8,010 | View AAA5725019 |
| 120 | 3 Core | AAA6725018 | 27,400 | View AAA6725018 |
| 150 | 1 Core | AAA5727014 | 8,060 | View AAA5727014 |
| 150 | 3 Core | AAA6727018 | 27,600 | View AAA6727018 |
| 185 | 1 Core | AAA5729024 | 8,090 | View AAA5729024 |
| 185 | 3 Core | AAA6729030 | 27,650 | View AAA6729030 |
| 240 | 1 Core | AAA5833012 | 8,120 | View AAA5833012 |
| 240 | 3 Core | AAA6733033 | 27,900 | View AAA6733033 |
| 300 | 1 Core | AAA5735026 | 9,280 | View AAA5735026 |
| 300 | 3 Core | AAA6735056 | 31,650 | View AAA6735056 |
| 400 | 1 Core | AAA5737026 | 10,200 | View AAA5737026 |
| 400 | 3 Core | AAA6737121 | 34,350 | View AAA6737121 |
| 500 | 1 Core | AAA5739023 | 11,450 | View AAA5739023 |
| 630 | 1 Core | AAA5741030 | 13,150 | View AAA5741030 |
| 800 | 1 Core | AAA5743011 | 13,450 | View AAA5743011 |
| 1000 | 1 Core | AAA5745022 | 15,100 | View AAA5745022 |
Applications
Used in Commercial, Power and Network, Renewable energy, Utility, Oil and Gas Petrochemical, Railways.
Related products
- Indoor 33kV(E) Termination Kit - Model EPKT-C — the indoor version of the same kit
- Indoor 11kV(E) Termination Kit - Model EPKT-C — the same kit at another voltage class
- Outdoor 11kV(E) Termination Kit - Model EPKT-C — the same kit at another voltage class
- Outdoor 33kV(E) Termination Kit - Model EPKT-S — the Model EPKT-S variant
- Outdoor 33kV(E) Termination Kit - Model EPKT-C-CU — the Model EPKT-C-CU variant
- Outdoor 33kV(E) Termination Kit - Model HVT-M — the Model HVT-M variant
Frequently Asked Questions
How do I choose the right Outdoor 33kV(E) Termination Kit for my cable?
Match the conductor cross-section to the range in the ordering table — the sizes here run from 35 to 1000 sq mm. Each size has its own part code; order the one whose range brackets your cable. The kit differs by core count as well — 1 Core and 3 Core are separate part codes at different prices.
Raychem RPG list prices in INR, effective 01-04-2026, exclusive of taxes. Catalogue page 28.
Applications
Availability: Enquiry-based — contact us for stock and lead time.
