Indoor 33kV(E) Termination Kit - Model HVT-M
Raychem RPG 33kV(E) Indoor Termination Kits. 24 part codes, Rs 5,090 - 22,800 per unit.
Rs 5,090 - 22,800

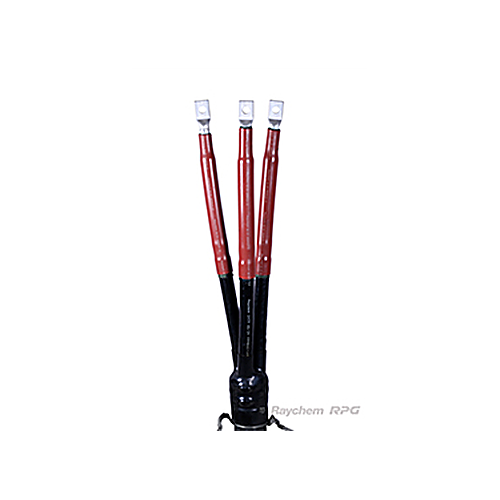

Indoor 33kV(E) Termination Kit - Model HVT-M is a 33 kV indoor cable termination kit range from Raychem RPG. It is supplied as 24 separate items, one for each cable size and core count, covering 35 to 1000 sq mm. Each item has its own part code and its own price - Rs 5,090 to Rs 22,800 across the range, list prices effective 01-04-2026 and exclusive of GST.
Find your cable size in the table below and open that item for its full specification, price and availability. If you are not sure which one you need, send us the cable specification and we will confirm it - call +91 7300249139 or email support@jaient.in.
Key Features
- Conforms to IS 13573-2
- Suitable for voltage upto 33 kV, cable range of 35 - 1000 Sq. mm.
- Suitable for XLPE Power Cables
- Built-in Tin plated Cu earthing braid
- Connector Type - Al Crimp
- Sleeve type: Tubular
- Indoor & Outdoor both versions come with rain skirts
All 24 items in this range
| Cable size (sq. mm) | Configuration | Part code (PCN) | List price (INR) | Open item |
|---|---|---|---|---|
| 35 | 1 Core | AAA3717008 | 5,090 | View AAA3717008 |
| 35 | 3 Core | AAA4717011 | 15,550 | View AAA4717011 |
| 50 | 1 Core | AAA3719014 | 5,350 | View AAA3719014 |
| 50 | 3 Core | AAA4719019 | 16,150 | View AAA4719019 |
| 70 | 1 Core | AAA3721012 | 5,580 | View AAA3721012 |
| 70 | 3 Core | AAA4721015 | 17,550 | View AAA4721015 |
| 95 | 1 Core | AAA3723024 | 5,640 | View AAA3723024 |
| 95 | 3 Core | AAA4723026 | 18,750 | View AAA4723026 |
| 120 | 1 Core | AAA3725017 | 5,690 | View AAA3725017 |
| 120 | 3 Core | AAA4725025 | 18,900 | View AAA4725025 |
| 150 | 1 Core | AAA3727017 | 5,750 | View AAA3727017 |
| 150 | 3 Core | AAA4727022 | 18,950 | View AAA4727022 |
| 185 | 1 Core | AAA3729028 | 5,840 | View AAA3729028 |
| 185 | 3 Core | AAA4729033 | 19,250 | View AAA4729033 |
| 240 | 1 Core | AAA3733031 | 6,180 | View AAA3733031 |
| 240 | 3 Core | AAA4733038 | 19,550 | View AAA4733038 |
| 300 | 1 Core | AAA3735043 | 6,930 | View AAA3735043 |
| 300 | 3 Core | AAA4735067 | 21,200 | View AAA4735067 |
| 400 | 1 Core | AAA3737037 | 7,200 | View AAA3737037 |
| 400 | 3 Core | AAA4737107 | 22,800 | View AAA4737107 |
| 500 | 1 Core | AAA3739033 | 8,960 | View AAA3739033 |
| 630 | 1 Core | AAA3741050 | 9,570 | View AAA3741050 |
| 800 | 1 Core | AAA3743018 | 10,200 | View AAA3743018 |
| 1000 | 1 Core | AAA3745022 | 12,650 | View AAA3745022 |
Applications
Used in Commercial, Power and Network, Renewable energy, Utility, Oil and Gas Petrochemical, Railways.
Related products
- Outdoor 33kV(E) Termination Kit - Model HVT-M — the outdoor version of the same kit
- Indoor 11kV(E) Termination Kit - Model HVT-M — the same kit at another voltage class
- Outdoor 11kV(E) Termination Kit - Model HVT-M — the same kit at another voltage class
- Indoor 33kV(E) Termination Kit - Model EPKT-S — the Model EPKT-S variant
- Indoor 33kV(E) Termination Kit - Model EPKT-C — the Model EPKT-C variant
- Indoor 33kV(E) Termination Kit - Model EPKT-C-CU — the Model EPKT-C-CU variant
Frequently Asked Questions
How do I choose the right Indoor 33kV(E) Termination Kit for my cable?
Match the conductor cross-section to the range in the ordering table — the sizes here run from 35 to 1000 sq mm. Each size has its own part code; order the one whose range brackets your cable. The kit differs by core count as well — 1 Core and 3 Core are separate part codes at different prices.
Raychem RPG list prices in INR, effective 01-04-2026, exclusive of taxes. Catalogue page 30.
Applications
Availability: Enquiry-based — contact us for stock and lead time.
