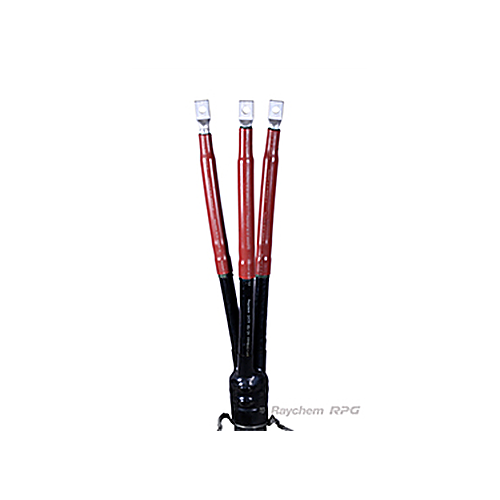

Outdoor 11kV(E) Termination Kit - Model HVT-M
Raychem RPG 11kV(E) Outdoor Termination Kits. 24 part codes, Rs 3,700 - 15,100 per unit.
Rs 3,700 - 15,100
Outdoor 11kV(E) Termination Kit - Model HVT-M is an 11 kV outdoor cable termination kit range from Raychem RPG. It is supplied as 24 separate items, one for each cable size and core count, covering 35 to 1000 sq mm. Each item has its own part code and its own price - Rs 3,700 to Rs 15,100 across the range, list prices effective 01-04-2026 and exclusive of GST.
Find your cable size in the table below and open that item for its full specification, price and availability. If you are not sure which one you need, send us the cable specification and we will confirm it - call +91 7300249139 or email support@jaient.in.
Key Features
- Conforms to IS 13573-2
- Conforms to IS 13573-2
- Suitable for voltage upto 11 kV,
- Suitable for voltage upto 11 kV, cable range of 35 - 1000 Sq. mm.
- Suitable for XLPE Power Cables
- Suitable for XLPE Power Cables
- Built-in Tin plated Cu earthing braid
- Built-in Tin plated Cu earthing braid
- Connector Type - Al Crimp
- Connector Type - Al Crimp
- Sleeve type: Tubular
- Sleeve type: Tubular
All 24 items in this range
| Cable size (sq. mm) | Configuration | Part code (PCN) | List price (INR) | Open item |
|---|---|---|---|---|
| 35 | 1 Core | AAA5417010 | 3,700 | View AAA5417010 |
| 35 | 3 Core | AAA6417054 | 10,400 | View AAA6417054 |
| 50 | 1 Core | AAA5419014 | 3,760 | View AAA5419014 |
| 50 | 3 Core | AAA6419044 | 10,550 | View AAA6419044 |
| 70 | 1 Core | AAA5421014 | 3,820 | View AAA5421014 |
| 70 | 3 Core | AAA6421047 | 10,750 | View AAA6421047 |
| 95 | 1 Core | AAA5423030 | 3,850 | View AAA5423030 |
| 95 | 3 Core | AAA6423077 | 10,850 | View AAA6423077 |
| 120 | 1 Core | AAA5425024 | 3,930 | View AAA5425024 |
| 120 | 3 Core | AAA6425080 | 11,100 | View AAA6425080 |
| 150 | 1 Core | AAA5427018 | 4,050 | View AAA5427018 |
| 150 | 3 Core | AAA6427061 | 11,300 | View AAA6427061 |
| 185 | 1 Core | AAA5429015 | 4,130 | View AAA5429015 |
| 185 | 3 Core | AAA6429094 | 11,950 | View AAA6429094 |
| 240 | 1 Core | AAA5433018 | 4,910 | View AAA5433018 |
| 240 | 3 Core | AAA6433086 | 12,500 | View AAA6433086 |
| 300 | 1 Core | AAA5435013 | 4,970 | View AAA5435013 |
| 300 | 3 Core | AAA6435120 | 13,400 | View AAA6435120 |
| 400 | 1 Core | AAA5437012 | 5,120 | View AAA5437012 |
| 400 | 3 Core | AAA6437060 | 15,100 | View AAA6437060 |
| 500 | 1 Core | AAA5439010 | 5,660 | View AAA5439010 |
| 630 | 1 Core | AAA5441016 | 6,530 | View AAA5441016 |
| 800 | 1 Core | AAA5443006 | 7,200 | View AAA5443006 |
| 1000 | 1 Core | AAA5445018 | 8,780 | View AAA5445018 |
Applications
Used in Commercial, Power and Network, Renewable energy, Utility, Oil and Gas Petrochemical, Railways.
Related products
- Indoor 11kV(E) Termination Kit - Model HVT-M — the indoor version of the same kit
- Indoor 33kV(E) Termination Kit - Model HVT-M — the same kit at another voltage class
- Outdoor 33kV(E) Termination Kit - Model HVT-M — the same kit at another voltage class
- Outdoor 11kV(E) Termination Kit - Model EPKT-S — the Model EPKT-S variant
- Outdoor 11kV(E) Termination Kit - Model EPKT-C — the Model EPKT-C variant
- Outdoor 11kV(E) Termination Kit - Model EPKT-C-CU — the Model EPKT-C-CU variant
Frequently Asked Questions
How do I choose the right Outdoor 11kV(E) Termination Kit for my cable?
Match the conductor cross-section to the range in the ordering table — the sizes here run from 35 to 1000 sq mm. Each size has its own part code; order the one whose range brackets your cable. The kit differs by core count as well — 1 Core and 3 Core are separate part codes at different prices.
Raychem RPG list prices in INR, effective 01-04-2026, exclusive of taxes. Catalogue page 24.
Applications
Availability: Enquiry-based — contact us for stock and lead time.
