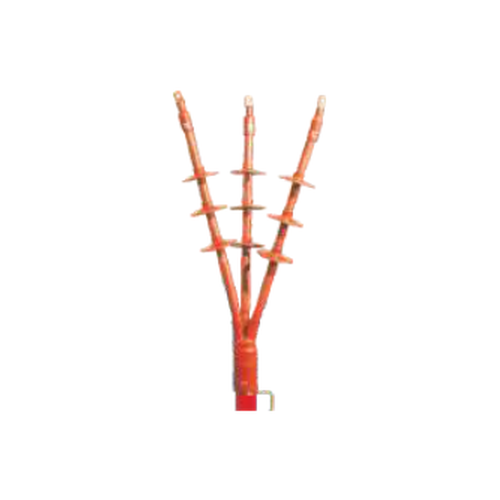

Outdoor 11kV(E) Termination Kit - Model HST
Raychem RPG 11kV(E) Outdoor Termination Kits. 24 part codes, Rs 2,550 - 10,200 per unit.
Rs 2,550 - 10,200
Outdoor 11kV(E) Termination Kit - Model HST is an 11 kV outdoor cable termination kit range from Raychem RPG. It is supplied as 24 separate items, one for each cable size and core count, covering 35 to 1000 sq mm. Each item has its own part code and its own price - Rs 2,550 to Rs 10,200 across the range, list prices effective 01-04-2026 and exclusive of GST.
Find your cable size in the table below and open that item for its full specification, price and availability. If you are not sure which one you need, send us the cable specification and we will confirm it - call +91 7300249139 or email support@jaient.in.
Key Features
- Conforms to IS 13573-2
- Conforms to IS 13573-2
- Suitable for voltage upto 11 kV,
- Suitable for voltage upto 11 kV, cable range of 35 - 1000 Sq. mm.
- Suitable for XLPE Power Cables
- Suitable for XLPE Power Cables
- Built-in Tin plated Cu earthing braid
- Built-in Tin plated Cu earthing braid
- Connector Type - Al Crimp
- Connector Type - Al Crimp
- Sleeve type: Tubular
- Sleeve type: Tubular
All 24 items in this range
| Cable size (sq. mm) | Configuration | Part code (PCN) | List price (INR) | Open item |
|---|---|---|---|---|
| 35 | 1 Core | AAA5417012 | 2,550 | View AAA5417012 |
| 35 | 3 Core | AAA6417058 | 7,260 | View AAA6417058 |
| 50 | 1 Core | AAA5419016 | 2,670 | View AAA5419016 |
| 50 | 3 Core | AAA6419047 | 7,390 | View AAA6419047 |
| 70 | 1 Core | AAA5421016 | 2,730 | View AAA5421016 |
| 70 | 3 Core | AAA6421049 | 7,640 | View AAA6421049 |
| 95 | 1 Core | AAA5423033 | 2,850 | View AAA5423033 |
| 95 | 3 Core | AAA6423083 | 8,080 | View AAA6423083 |
| 120 | 1 Core | AAA5425026 | 2,910 | View AAA5425026 |
| 120 | 3 Core | AAA6425083 | 8,140 | View AAA6425083 |
| 150 | 1 Core | AAA5427021 | 2,940 | View AAA5427021 |
| 150 | 3 Core | AAA6427065 | 8,320 | View AAA6427065 |
| 185 | 1 Core | AAA5429018 | 3,090 | View AAA5429018 |
| 185 | 3 Core | AAA6429097 | 8,380 | View AAA6429097 |
| 240 | 1 Core | AAA5433019 | 3,210 | View AAA5433019 |
| 240 | 3 Core | AAA6433090 | 8,420 | View AAA6433090 |
| 300 | 1 Core | AAA5435015 | 3,390 | View AAA5435015 |
| 300 | 3 Core | AAA6435127 | 8,900 | View AAA6435127 |
| 400 | 1 Core | AAA5437013 | 3,530 | View AAA5437013 |
| 400 | 3 Core | AAA6437064 | 10,200 | View AAA6437064 |
| 500 | 1 Core | AAA5439015 | 4,210 | View AAA5439015 |
| 630 | 1 Core | AAA5441018 | 4,750 | View AAA5441018 |
| 800 | 1 Core | AAA5443008 | 5,390 | View AAA5443008 |
| 1000 | 1 Core | AAA5445020 | 6,810 | View AAA5445020 |
Applications
Used in Commercial, Power and Network, Renewable energy, Utility, Oil and Gas Petrochemical, Railways.
Related products
- Indoor 11kV(E) Termination Kit - Model HST — the indoor version of the same kit
- Outdoor 11kV(E) Termination Kit - Model EPKT-S — the Model EPKT-S variant
- Outdoor 11kV(E) Termination Kit - Model EPKT-C — the Model EPKT-C variant
- Outdoor 11kV(E) Termination Kit - Model EPKT-C-CU — the Model EPKT-C-CU variant
- Outdoor 11kV(E) Termination Kit - Model HVT-M — the Model HVT-M variant
Frequently Asked Questions
How do I choose the right Outdoor 11kV(E) Termination Kit for my cable?
Match the conductor cross-section to the range in the ordering table — the sizes here run from 35 to 1000 sq mm. Each size has its own part code; order the one whose range brackets your cable. The kit differs by core count as well — 1 Core and 3 Core are separate part codes at different prices.
Raychem RPG list prices in INR, effective 01-04-2026, exclusive of taxes. Catalogue page 24.
Applications
Availability: Enquiry-based — contact us for stock and lead time.
