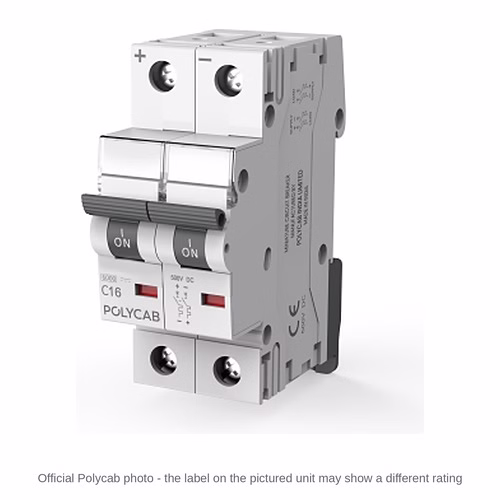

Polycab DC MCB DP (2 pole) – C-Curve 6 kA DC Miniature Circuit Breaker, 0.5 A to 63 A, 250 V DC per Pole

The Polycab DC MCB DP is a double-pole DC miniature circuit breaker with a C tripping curve and 6 kA breaking capacity, made to IEC 60947-2 and rated 250 V DC per pole. Polycab lists it in 15 ratings - 0.5, 1, 2, 3, 4, 5, 6, 10, 16, 20, 25, 32, 40, 50 and 63 A - at MRP Rs 1,154 to Rs 1,575 per piece (polycab.com, October 2026).

Polycab India Limited is India's largest manufacturer of wires and cables, with 27 manufacturing facilities, 4,300+ authorised distributors, 2,00,000+ retailers and an export presence in 84 countries (polycab.com, October 2026). Its switchgear range covers MCBs, RCCBs, RCBOs, isolators, changeover switches, ACCLs and distribution boards. Jai Enterprises supplies Polycab MCBs from Bhilai and Raipur all over Chhattisgarh - Bhilai, Raipur, Durg, Korba, Bilaspur, Raigarh, Jagdalpur, Kanker, Ambikapur and every other district - and across India.

Is this the right one for you?

Check these three things before you order:

• The circuit is DC - a solar string, battery bank, inverter or other DC supply. AC MCBs are not meant for DC circuits.
• You want both DC conductors switched - the usual choice for solar strings and floating (unearthed) DC systems. Each pole is rated 250 V DC; for a higher system voltage, send us the voltage and earthing and we will confirm whether the DP or the FP fits.
• The rating you need is 0.5, 1, 2, 3, 4, 5, 6, 10, 16, 20, 25, 32, 40, 50 or 63 A.

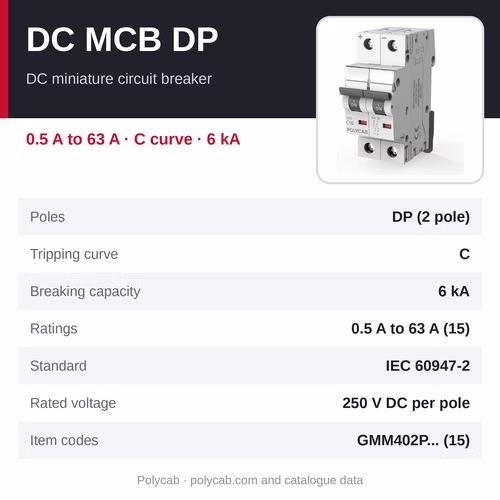

At a glance

• MRP: Rs 1,154 - 1,575 per piece (polycab.com, October 2026, inclusive of taxes)
• Product: Polycab DC MCB DP
• Type: double-pole DC MCB, C curve, 6 kA, 250 V DC per pole
• Poles: DP - two poles, usually one in each DC conductor so that both conductors are switched
• Tripping curve: C
• Breaking capacity: 6 kA
• Ratings: 0.5, 1, 2, 3, 4, 5, 6, 10, 16, 20, 25, 32, 40, 50 and 63 A
• Item codes: GMM402P001 to GMM402P008 and GMM402P012 to GMM402P018
• Standard: IEC 60947-2
• Rated voltage: 250 V DC per pole
• Warranty: 7 years (as listed by Polycab)

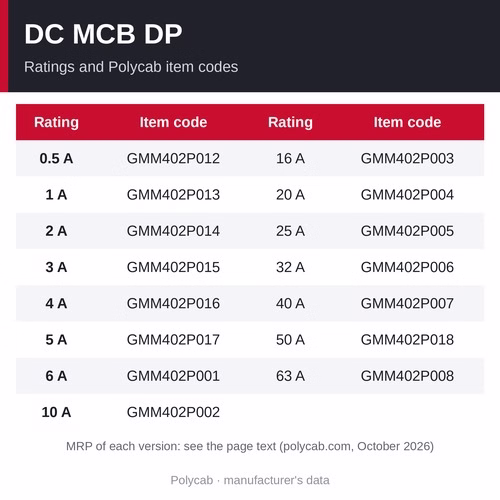

Ratings, item codes and MRP

• 0.5 A: item code GMM402P012 - MRP Rs 1,327
• 1 A: item code GMM402P013 - MRP Rs 1,327
• 2 A: item code GMM402P014 - MRP Rs 1,327
• 3 A: item code GMM402P015 - MRP Rs 1,327
• 4 A: item code GMM402P016 - MRP Rs 1,327
• 5 A: item code GMM402P017 - MRP Rs 1,327
• 6 A: item code GMM402P001 - MRP Rs 1,154
• 10 A: item code GMM402P002 - MRP Rs 1,154
• 16 A: item code GMM402P003 - MRP Rs 1,154
• 20 A: item code GMM402P004 - MRP Rs 1,154
• 25 A: item code GMM402P005 - MRP Rs 1,154
• 32 A: item code GMM402P006 - MRP Rs 1,154
• 40 A: item code GMM402P007 - MRP Rs 1,575
• 50 A: item code GMM402P018 - MRP Rs 1,575
• 63 A: item code GMM402P008 - MRP Rs 1,575
• MRP basis: MRPs as listed on polycab.com, October 2026, inclusive of taxes; the selling price is confirmed on enquiry
• 0.5 to 5 A ratings: for control circuits, indicator and instrument supplies and other small loads

Why choose the Polycab DC MCB DP

• Easy removal from the DIN rail
• Positive contact position indication - the handle shows whether the contacts are really open
• Finger-proof IP20 terminals
• Air-flow channels to keep the breaker cool
• Label holder to mark the circuit
• 7-year warranty listed by Polycab
• High-quality contact tips
• Large terminals that take copper or aluminium conductors
• Rated 250 V DC per pole with a 6 kA breaking capacity, made to IEC 60947-2 (Polycab catalogue)
• Polycab item code and MRP for every rating, so the order matches the drawing - GMM402P001 to GMM402P008 and GMM402P012 to GMM402P018

How to choose and fit it

Why a DC breaker. A DC arc does not pass through zero like an AC arc, so it is harder to break. Use a DC-rated MCB such as this one on solar strings, battery banks and other DC circuits, not an AC MCB.

Voltage and poles. Polycab rates its DC MCBs at 250 V DC per pole. For higher DC voltages the poles are connected in series according to the manufacturer's wiring instructions - send us the system voltage and current and we will confirm which version fits.

This version. The DP version has two poles, usually one in each DC conductor so that both conductors are switched. Polycab lists the DC MCB in SP, DP and FP.

Rating. Choose a rating above the normal DC current of the circuit (for a solar string, the string current with the usual safety margin) and within the current-carrying capacity of the DC cable.

Mounting. It clips on a standard DIN rail in a DC combiner box or enclosure.

Where it is used

• solar PV strings and arrays in DC combiner boxes, wired as Polycab's diagram shows for the string voltage and earthing
• battery banks, inverters and UPS DC circuits
• telecom and other DC power supplies

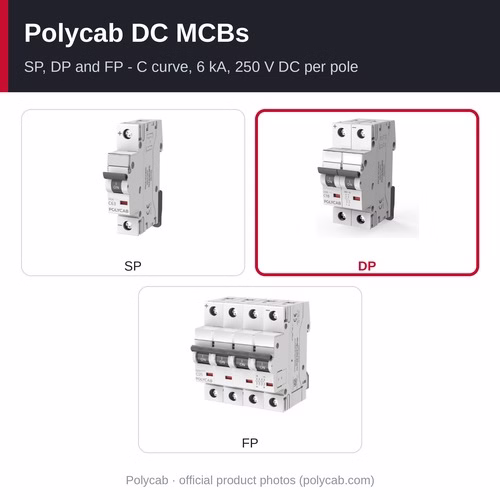

Other Polycab DC and mini MCBs

• Polycab DC MCB SP - for DC circuits, 0.5 A to 63 A, MRP Rs 554 - 738
• Polycab DC MCB DP (this page) - for DC circuits, 0.5 A to 63 A, MRP Rs 1,154 - 1,575
• Polycab DC MCB FP - for DC circuits, 0.5 A to 63 A, MRP Rs 2,365 - 3,149
• Polycab Mini DP MCB with Enclosure - AC, 3 kA, in its own enclosure - 16 A to 32 A, MRP Rs 629

Related products

• Polycab 10kA C-Curve DP MCB - the AC MCB for the AC side of an inverter
• All Polycab switchgear

Frequently asked questions

Can I use an ordinary AC MCB in a solar or battery circuit?

No. A DC arc is harder to break than an AC arc, so DC circuits need a DC-rated breaker such as the Polycab DC MCB, made to IEC 60947-2.

What voltage is the Polycab DC MCB rated for?

250 V DC per pole, as Polycab's catalogue states. For higher DC voltages the poles are wired in series according to the manufacturer's wiring instructions - send us the system voltage and we will confirm the right version.

Which pole count do I need?

SP where only one conductor of a DC circuit within 250 V DC needs switching, for example where the other is earthed; DP to switch both conductors - the usual choice for solar strings and floating (unearthed) DC systems; FP where the system voltage needs poles in series, for example two in each conductor. Each pole is rated 250 V DC, so tell us the system voltage, current and earthing and we will confirm the version.

Which ratings are available?

0.5, 1, 2, 3, 4, 5, 6, 10, 16, 20, 25, 32, 40, 50 and 63 A, all C curve and 6 kA, in SP, DP and FP versions.

What is the MRP of the Polycab 32 A DC MCB DP?

Rs 1,154 per piece, item code GMM402P006 - the MRP listed on polycab.com in October 2026, inclusive of taxes. Call +91 9340081159 for the selling price and stock.

Where can I buy the Polycab DC MCB DP in Chhattisgarh?

From Jai Enterprises, Bhilai and Raipur, which supplies Polycab switchgear all over Chhattisgarh - Korba, Bilaspur, Raigarh, Jagdalpur, Kanker, Ambikapur and every other district - and across India. Call +91 9340081159 with the rating, quantity and delivery location and we will confirm the price, stock and lead time.

How to order

Supplied by Jai Enterprises, Bhilai and Raipur, to every district of Chhattisgarh and across India. Polycab lists the DC MCB DP at MRP Rs 1,154 - 1,575 per piece (polycab.com, October 2026, inclusive of taxes). Call +91 9340081159 or send an enquiry from this page with the rating, the quantity (pieces) and the delivery location, and we will confirm the selling price, stock and lead time.
