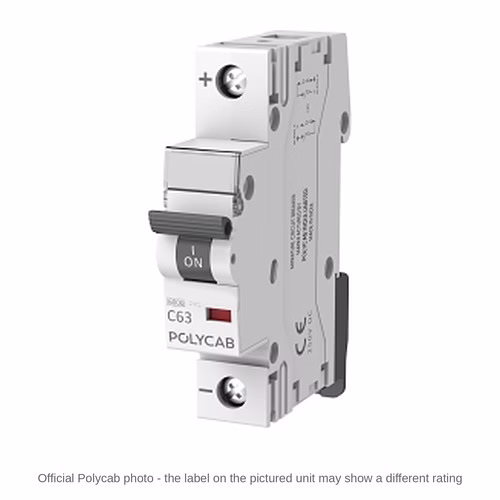

Polycab DC MCB SP (1 pole) – C-Curve 6 kA DC Miniature Circuit Breaker, 0.5 A to 63 A, 250 V DC per Pole

The Polycab DC MCB SP is a single-pole DC miniature circuit breaker with a C tripping curve and 6 kA breaking capacity, made to IEC 60947-2 and rated 250 V DC per pole. Polycab lists it in 15 ratings - 0.5, 1, 2, 3, 4, 5, 6, 10, 16, 20, 25, 32, 40, 50 and 63 A - at MRP Rs 554 to Rs 738 per piece (polycab.com, October 2026).

Polycab India Limited is India's largest manufacturer of wires and cables, with 27 manufacturing facilities, 4,300+ authorised distributors, 2,00,000+ retailers and an export presence in 84 countries (polycab.com, October 2026). Its switchgear range covers MCBs, RCCBs, RCBOs, isolators, changeover switches, ACCLs and distribution boards. Jai Enterprises supplies Polycab MCBs from Bhilai and Raipur all over Chhattisgarh - Bhilai, Raipur, Durg, Korba, Bilaspur, Raigarh, Jagdalpur, Kanker, Ambikapur and every other district - and across India.

Is this the right one for you?

Check these three things before you order:

• The circuit is DC - a battery bank, inverter or other DC supply. AC MCBs are not meant for DC circuits.
• The DC circuit is within 250 V DC and only one conductor needs switching - for example where the other is earthed. Solar strings and floating (unearthed) DC systems normally need both conductors switched - use the DP or FP.
• The rating you need is 0.5, 1, 2, 3, 4, 5, 6, 10, 16, 20, 25, 32, 40, 50 or 63 A.

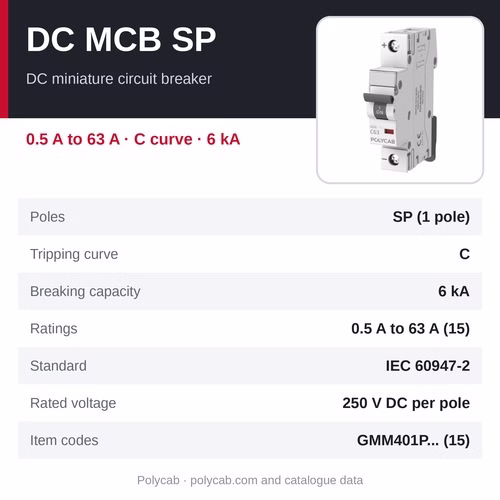

At a glance

• MRP: Rs 554 - 738 per piece (polycab.com, October 2026, inclusive of taxes)
• Product: Polycab DC MCB SP
• Type: single-pole DC MCB, C curve, 6 kA, 250 V DC per pole
• Poles: SP - one pole, which switches one conductor of a DC circuit within 250 V DC
• Tripping curve: C
• Breaking capacity: 6 kA
• Ratings: 0.5, 1, 2, 3, 4, 5, 6, 10, 16, 20, 25, 32, 40, 50 and 63 A
• Item codes: GMM401P001 to GMM401P008 and GMM401P012 to GMM401P018
• Standard: IEC 60947-2
• Rated voltage: 250 V DC per pole
• Warranty: 7 years (as listed by Polycab)

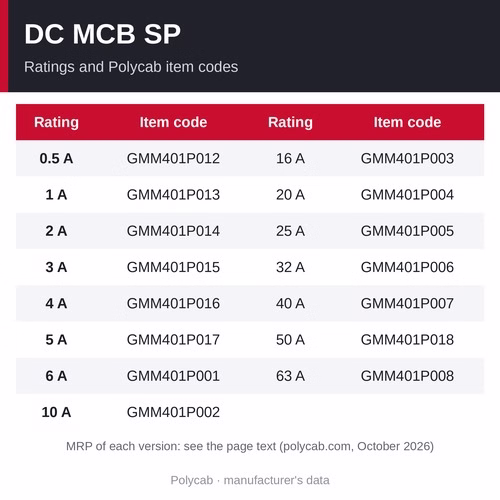

Ratings, item codes and MRP

• 0.5 A: item code GMM401P012 - MRP Rs 669
• 1 A: item code GMM401P013 - MRP Rs 669
• 2 A: item code GMM401P014 - MRP Rs 669
• 3 A: item code GMM401P015 - MRP Rs 669
• 4 A: item code GMM401P016 - MRP Rs 669
• 5 A: item code GMM401P017 - MRP Rs 669
• 6 A: item code GMM401P001 - MRP Rs 554
• 10 A: item code GMM401P002 - MRP Rs 554
• 16 A: item code GMM401P003 - MRP Rs 554
• 20 A: item code GMM401P004 - MRP Rs 554
• 25 A: item code GMM401P005 - MRP Rs 554
• 32 A: item code GMM401P006 - MRP Rs 554
• 40 A: item code GMM401P007 - MRP Rs 738
• 50 A: item code GMM401P018 - MRP Rs 738
• 63 A: item code GMM401P008 - MRP Rs 738
• MRP basis: MRPs as listed on polycab.com, October 2026, inclusive of taxes; the selling price is confirmed on enquiry
• 0.5 to 5 A ratings: for control circuits, indicator and instrument supplies and other small loads

Why choose the Polycab DC MCB SP

• Easy removal from the DIN rail
• Positive contact position indication - the handle shows whether the contacts are really open
• Finger-proof IP20 terminals
• Air-flow channels to keep the breaker cool
• Label holder to mark the circuit
• 7-year warranty listed by Polycab
• High-quality contact tips
• Large terminals that take copper or aluminium conductors
• Rated 250 V DC per pole with a 6 kA breaking capacity, made to IEC 60947-2 (Polycab catalogue)
• Polycab item code and MRP for every rating, so the order matches the drawing - GMM401P001 to GMM401P008 and GMM401P012 to GMM401P018

How to choose and fit it

Why a DC breaker. A DC arc does not pass through zero like an AC arc, so it is harder to break, and DC circuits need a DC-rated MCB, not an AC MCB. This SP version suits circuits where one conductor is earthed; for solar strings and floating DC systems use the DP or FP.

Voltage and poles. Polycab rates its DC MCBs at 250 V DC per pole. For higher DC voltages the poles are connected in series according to the manufacturer's wiring instructions - send us the system voltage and current and we will confirm which version fits.

This version. The SP version has one pole, which switches one conductor of a DC circuit within 250 V DC. Polycab lists the DC MCB in SP, DP and FP.

Rating. Choose a rating above the normal DC current of the circuit (for a battery circuit, its maximum charge or discharge current) and within the current-carrying capacity of the DC cable.

Mounting. It clips on a standard DIN rail in a DC combiner box or enclosure.

Where it is used

• DC circuits within 250 V DC where only one conductor is switched - for example where the other conductor is earthed
• battery, inverter and UPS DC circuits within 250 V DC
• DC control and auxiliary circuits

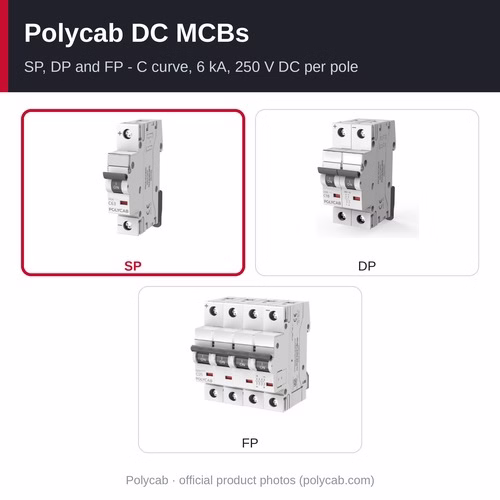

Other Polycab DC and mini MCBs

• Polycab DC MCB SP (this page) - for DC circuits, 0.5 A to 63 A, MRP Rs 554 - 738
• Polycab DC MCB DP - for DC circuits, 0.5 A to 63 A, MRP Rs 1,154 - 1,575
• Polycab DC MCB FP - for DC circuits, 0.5 A to 63 A, MRP Rs 2,365 - 3,149
• Polycab Mini DP MCB with Enclosure - AC, 3 kA, in its own enclosure - 16 A to 32 A, MRP Rs 629

Related products

• Polycab 10kA C-Curve DP MCB - the AC MCB for the AC side of an inverter
• All Polycab switchgear

Frequently asked questions

Can I use an ordinary AC MCB in a solar or battery circuit?

No. A DC arc is harder to break than an AC arc, so DC circuits need a DC-rated breaker such as the Polycab DC MCB, made to IEC 60947-2.

What voltage is the Polycab DC MCB rated for?

250 V DC per pole, as Polycab's catalogue states. For higher DC voltages the poles are wired in series according to the manufacturer's wiring instructions - send us the system voltage and we will confirm the right version.

Which pole count do I need?

SP where only one conductor of a DC circuit within 250 V DC needs switching, for example where the other is earthed; DP to switch both conductors - the usual choice for solar strings and floating (unearthed) DC systems; FP where the system voltage needs poles in series, for example two in each conductor. Each pole is rated 250 V DC, so tell us the system voltage, current and earthing and we will confirm the version.

Which ratings are available?

0.5, 1, 2, 3, 4, 5, 6, 10, 16, 20, 25, 32, 40, 50 and 63 A, all C curve and 6 kA, in SP, DP and FP versions.

What is the MRP of the Polycab 32 A DC MCB SP?

Rs 554 per piece, item code GMM401P006 - the MRP listed on polycab.com in October 2026, inclusive of taxes. Call +91 9340081159 for the selling price and stock.

Where can I buy the Polycab DC MCB SP in Chhattisgarh?

From Jai Enterprises, Bhilai and Raipur, which supplies Polycab switchgear all over Chhattisgarh - Korba, Bilaspur, Raigarh, Jagdalpur, Kanker, Ambikapur and every other district - and across India. Call +91 9340081159 with the rating, quantity and delivery location and we will confirm the price, stock and lead time.

How to order

Supplied by Jai Enterprises, Bhilai and Raipur, to every district of Chhattisgarh and across India. Polycab lists the DC MCB SP at MRP Rs 554 - 738 per piece (polycab.com, October 2026, inclusive of taxes). Call +91 9340081159 or send an enquiry from this page with the rating, the quantity (pieces) and the delivery location, and we will confirm the selling price, stock and lead time.
