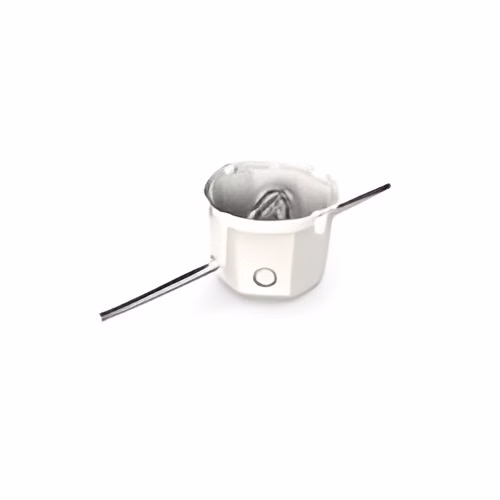

Polycab PVC Fan Box with Rod – Ceiling-Fan Box with Hanging Rod for RCC Slabs, 20 / 25 mm Conduit, CFT3020001

Polycab PVC Fan Box with Rod is a PVC fan box supplied with a metal rod through it, cast into the RCC slab at a ceiling-fan point, for 20 / 25 mm conduit. The rod runs through the box and into the slab concrete on both sides, so the fan hanging point is set when the slab is poured. It is listed as one code for 20 / 25 mm conduit.

Polycab India Limited is India's largest manufacturer of wires and cables, with 27 manufacturing facilities, 4,300+ authorised distributors, 2,00,000+ retailers and an export presence in 84 countries (polycab.com, October 2026). Polycab is ISO 9001:2015 certified and makes its conduits to IS 9537 (Part 3) and its conduit fittings to IS 3419, from what its catalogue calls "the highest grade of waterproof and fire-resistant polymers". Jai Enterprises supplies Polycab conduit fittings from Bhilai and Raipur all over Chhattisgarh - Bhilai, Raipur, Durg, Korba, Bilaspur, Raigarh, Jagdalpur, Kanker, Ambikapur and every other district - and across India; price on request.

Is this the right one for you?

Check these three things before you order:

• You want the fan box and its hanging rod to go into the slab together.
• Your conduit is 20 or 25 mm outside diameter (the box is listed for 20 / 25 mm).
• Fittings to IS 3419 are wanted or specified.

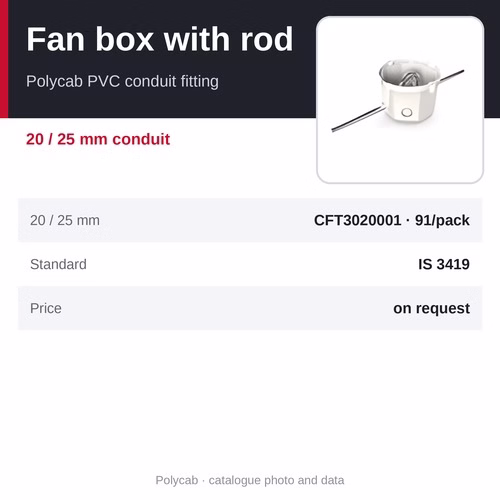

At a glance

• Price: on request - call +91 9340081159
• Product: Polycab PVC Fan Box with Rod
• Type: a PVC fan box supplied with a metal rod through it, cast into the RCC slab at a ceiling-fan point
• Sizes: 20 / 25 mm conduit
• Product codes: CFT3020001
• Packs: 20 / 25 mm - 91 per pack, 91 per transport pack
• Standard: IS 3419
• Material: PVC (Polycab uPVC conduit fittings range)

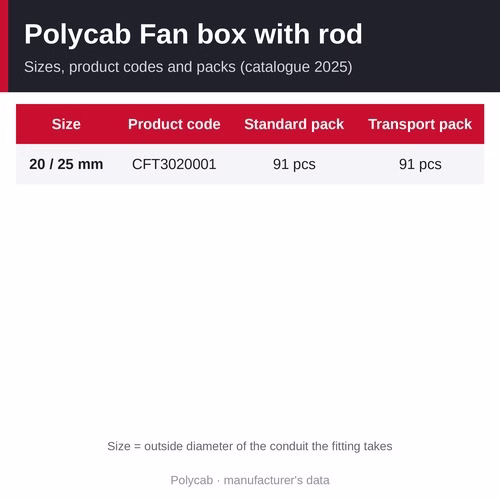

Sizes, codes and packs

• 20 / 25 mm: code CFT3020001; 91 pcs per standard pack, 91 pcs per transport pack
• Pack terms: standard pack = pieces per pack; transport pack = pieces per transport pack (catalogue figures)
• Source: Polycab B2B all-products catalogue (2025), uPVC conduits and fittings section

Why choose the Polycab PVC Fan Box with Rod

• Box and rod in one - the rod is in place before the slab is poured
• For 20 / 25 mm conduit - one code, CFT3020001
• Made to IS 3419
• Alternatives - the standard and large fan boxes without rod

Installation notes

Place the box at the fan point on the slab shuttering with the rod lying across the reinforcement, and connect the conduit runs.

Close the open face and unused entries before the pour, and check the box position and the rod before concreting.

Confirm with the structural engineer that the hanging arrangement suits the fan's weight.

Where it is used

• Ceiling-fan points in new RCC slabs
• Housing projects and flats
• Offices, schools and hotels
• Contractors who want box and rod in one item

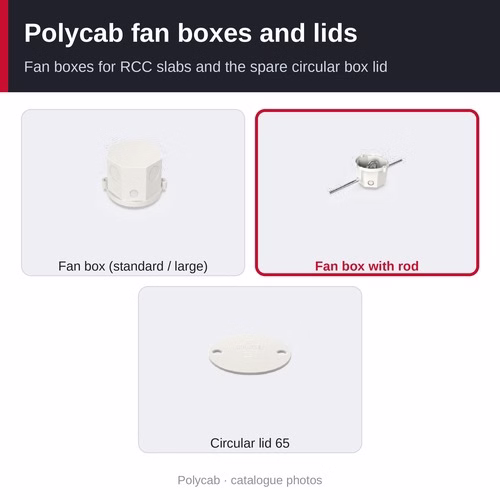

Polycab fan boxes and lids

• Polycab PVC Fan Box (Standard) - 20 and 25 mm conduit
• Polycab PVC Fan Box (Large) - 20 and 25 mm conduit
• Polycab PVC Fan Box with Rod (this page) - 20 / 25 mm conduit
• Polycab Circular Lid 65 with Screws - one standard size

Related products

• Polycab circular boxes (ISI), Polycab deep circular boxes, Polycab couplers, reducers and saddles, Polycab bends, tees and elbows, Polycab non-ISI PP circular boxes and lid - the rest of the Polycab conduit fittings
• Polycab MMS FRLS uPVC conduit pipe and HMS FRLS conduit pipe - the pipes these fittings join
• All conduit fittings and all uPVC conduits

Frequently asked questions

What is the rod for?

It passes through the box and is cast into the slab, giving the ceiling fan a hanging point at the box.

Which conduit size does it take?

The catalogue lists it for 20 / 25 mm conduit under the single code CFT3020001.

Which sizes and codes are available for the fan box with rod?

20 / 25 mm - CFT3020001.

How is it packed?

20 / 25 mm - 91 per pack, 91 per transport pack. Tell us the number of pieces or packs you need.

Where can I buy Polycab PVC Fan Box with Rod in Chhattisgarh?

From Jai Enterprises, Bhilai and Raipur, which supplies Polycab conduits and fittings across Chhattisgarh - Korba, Bilaspur, Raigarh, Jagdalpur, Kanker, Ambikapur and every other district - and across India. Call +91 9340081159 with the size, quantity and delivery location and we will confirm the price, availability and lead time.

How to order

Supplied by Jai Enterprises, Bhilai and Raipur, to every district of Chhattisgarh and across India. To request a price for Polycab PVC Fan Box with Rod, call +91 9340081159 or send an enquiry from this page with the size, the quantity (pieces or packs) and the delivery location, and we will confirm the price, stock and lead time.
