Polycab PVC Inspection Bend – 90-Degree Conduit Bend with Inspection Cover, 20 and 25 mm, IS 3419

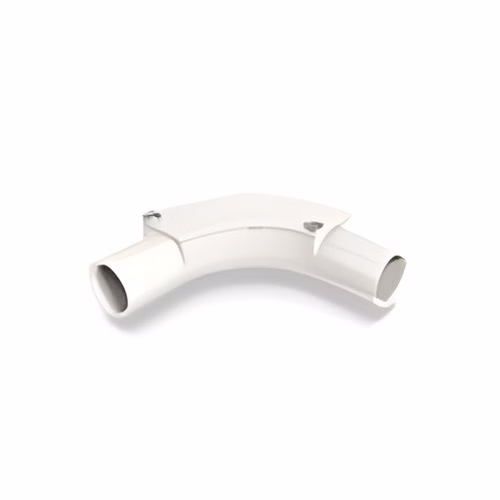

Polycab PVC Inspection Bend is a PVC 90-degree conduit bend with a screw-fixed inspection cover on the outside of the curve, for 20 and 25 mm conduit. The cover comes off so the wires can be pulled round the turn and checked later - it doubles as a pull point on long runs.

Polycab India Limited is India's largest manufacturer of wires and cables, with 27 manufacturing facilities, 4,300+ authorised distributors, 2,00,000+ retailers and an export presence in 84 countries (polycab.com, October 2026). Polycab is ISO 9001:2015 certified and makes its conduits to IS 9537 (Part 3) and its conduit fittings to IS 3419, from what its catalogue calls "the highest grade of waterproof and fire-resistant polymers". Jai Enterprises supplies Polycab conduit fittings from Bhilai and Raipur all over Chhattisgarh - Bhilai, Raipur, Durg, Korba, Bilaspur, Raigarh, Jagdalpur, Kanker, Ambikapur and every other district - and across India; price on request.

Is this the right one for you?

Check these three things before you order:

• The run turns through 90 degrees and you want access at the bend for pulling and inspection.
• Your conduit is 20 or 25 mm outside diameter - the fitting size is the conduit size.
• Fittings to IS 3419 are wanted or specified.

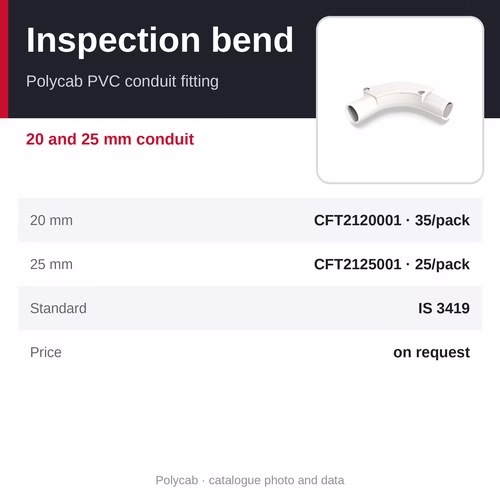

At a glance

• Price: on request - call +91 9340081159
• Product: Polycab PVC Inspection Bend
• Type: a PVC 90-degree conduit bend with a screw-fixed inspection cover on the outside of the curve
• Sizes: 20 and 25 mm conduit
• Product codes: CFT2120001, CFT2125001
• Packs: 20 mm - 35 per pack, 630 per transport pack; 25 mm - 25 per pack, 375 per transport pack
• Standard: IS 3419
• Material: PVC (Polycab uPVC conduit fittings range)

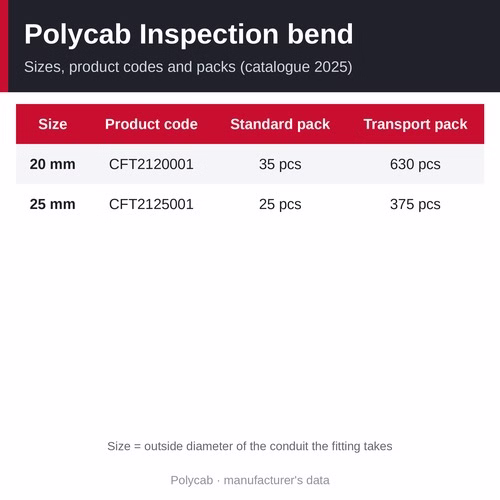

Sizes, codes and packs

• 20 mm: code CFT2120001; 35 pcs per standard pack, 630 pcs per transport pack
• 25 mm: code CFT2125001; 25 pcs per standard pack, 375 pcs per transport pack
• Pack terms: standard pack = pieces per pack; transport pack = pieces per transport pack (catalogue figures)
• Source: Polycab B2B all-products catalogue (2025), uPVC conduits and fittings section

Why choose the Polycab PVC Inspection Bend

• Removable inspection cover - pull the wires round the bend and inspect them later
• Acts as a pull point - on long runs with several bends
• For 20 and 25 mm conduit - codes CFT2120001 and CFT2125001
• Made to IS 3419

Installation notes

Fit with the cover facing outwards where it can be reached; keep it accessible - never plaster over it.

Push the conduit fully into each socket - with PVC solvent cement in concealed work - and refit the cover screws after pulling the wires.

Where it is used

• Surface conduit turns that need access
• Long runs that need a pull point at a bend
• Ceiling-to-wall turns on surface runs
• Industrial and commercial surface wiring

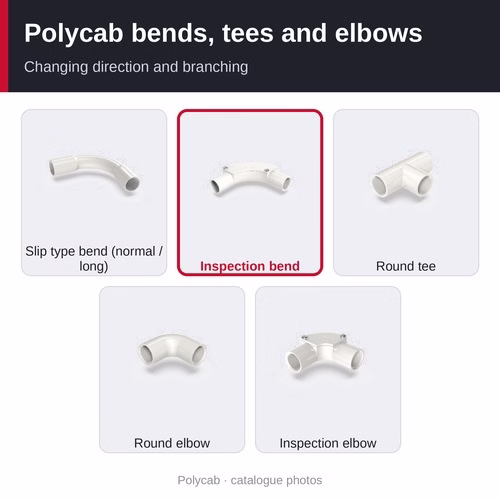

Polycab bends, tees and elbows

• Polycab PVC Slip Type Bend Normal - 19, 20 and 25 mm conduit
• Polycab PVC Slip Type Bend Long - 19, 20, 25, 32, 40 and 50 mm conduit
• Polycab PVC Inspection Bend (this page) - 20 and 25 mm conduit
• Polycab PVC Round Tee - 20 and 25 mm conduit
• Polycab PVC Inspection Tee - 20 and 25 mm conduit
• Polycab PVC Round Elbow - 20 and 25 mm conduit
• Polycab PVC Inspection Elbow - 20 and 25 mm conduit

Related products

• Polycab circular boxes (ISI), Polycab deep circular boxes, Polycab fan boxes and lids, Polycab couplers, reducers and saddles, Polycab non-ISI PP circular boxes and lid - the rest of the Polycab conduit fittings
• Polycab MMS FRLS uPVC conduit pipe and HMS FRLS conduit pipe - the pipes these fittings join
• All conduit fittings and all uPVC conduits

Frequently asked questions

Why use an inspection bend instead of a plain bend?

Its cover gives access at the turn, so the wires can be pulled round in two easy stages and inspected later; a plain bend is sealed.

Can it be concealed?

Only where the cover stays accessible; for fully concealed turns use a slip type bend or a box.

Which sizes and codes are available for the inspection bend?

20 mm - CFT2120001; 25 mm - CFT2125001.

How is it packed?

20 mm - 35 per pack, 630 per transport pack; 25 mm - 25 per pack, 375 per transport pack. Tell us the number of pieces or packs you need.

Where can I buy Polycab PVC Inspection Bend in Chhattisgarh?

From Jai Enterprises, Bhilai and Raipur, which supplies Polycab conduits and fittings across Chhattisgarh - Korba, Bilaspur, Raigarh, Jagdalpur, Kanker, Ambikapur and every other district - and across India. Call +91 9340081159 with the size, quantity and delivery location and we will confirm the price, availability and lead time.

How to order

Supplied by Jai Enterprises, Bhilai and Raipur, to every district of Chhattisgarh and across India. To request a price for Polycab PVC Inspection Bend, call +91 9340081159 or send an enquiry from this page with the size, the quantity (pieces or packs) and the delivery location, and we will confirm the price, stock and lead time.
