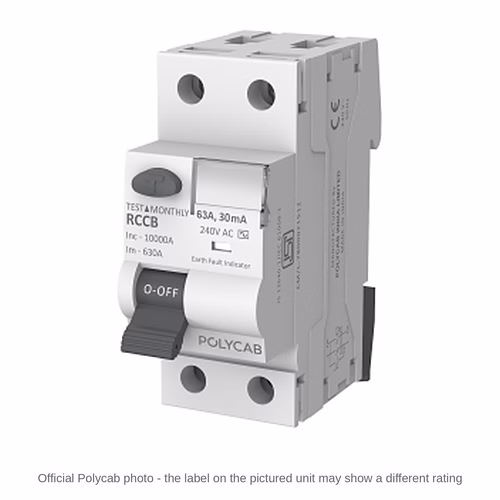

Polycab DP RCCB 100 mA – 2 Pole Residual Current Circuit Breaker, 25 / 40 / 63 A, IS 12640-1
2 pole RCCB, Type AC, 100 mA sensitivity, 25 / 40 / 63 A. MRP Rs 3,182 - 4,381 per piece.
MRP Rs 3,182 - 4,381 per piece
The Polycab DP RCCB 100 mA is a double pole (2 pole) Type AC residual current circuit breaker (RCCB) with 100 mA sensitivity, made to IS 12640-1 / IEC 61008-1 for a single-phase supply - phase and neutral. It switches the supply off when current leaks to earth through damaged insulation or faulty equipment; for protection of people against electric shock, use the 30 mA version. Polycab lists it in 25, 40 and 63 A at MRP Rs 3,182 to Rs 4,381 per piece (polycab.com, October 2026).
Polycab India Limited is India's largest manufacturer of wires and cables, with 27 manufacturing facilities, 4,300+ authorised distributors, 2,00,000+ retailers and an export presence in 84 countries (polycab.com, October 2026). Its switchgear range covers MCBs, RCCBs, RCBOs, isolators, changeover switches, ACCLs and distribution boards. Jai Enterprises supplies Polycab RCCBs from Bhilai and Raipur all over Chhattisgarh - Bhilai, Raipur, Durg, Korba, Bilaspur, Raigarh, Jagdalpur, Kanker, Ambikapur and every other district - and across India.
Is this the right one for you?
Check these six things before you order:
- You need earth-leakage protection for a single-phase supply - phase and neutral (double pole).
- 100 mA suits the job: equipment and circuit-group protection.
- An MCB or fuse upstream gives the overload and short-circuit protection - an RCCB does not.
- Its rated current (25, 40 or 63 A) is at least equal to the rating of the MCB that protects it.
- Circuits where people need shock protection will have their own 30 mA RCCBs or RCBOs.
- Type AC suits the circuits - it is designed for sinusoidal AC leakage and may not trip on pulsating DC. For circuits that feed single-phase appliances with electronic components - inverter air conditioners, washing machines, induction cooktops, computers - choose the Polycab DP RCCB Type A (price on request), unless the appliance maker specifies Type F or Type B.

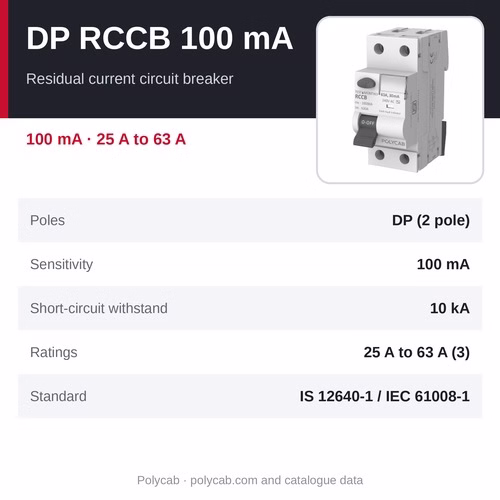

At a glance
- MRP: Rs 3,182 - 4,381 per piece (polycab.com, October 2026, inclusive of taxes)
- Product: Polycab DP RCCB 100 mA
- Type: residual current circuit breaker (RCCB), Type AC, electromechanical
- Poles: DP - double pole (2 pole)
- Sensitivity: 100 mA
- Rated currents: 25, 40 and 63 A
- Conditional short-circuit current (Inc): 10 kA (Polycab catalogue), with a suitable MCB or fuse ahead of it
- Standard: IS 12640-1 / IEC 61008-1
- Item codes: GMR502P009, GMR502P011 and GMR502P012

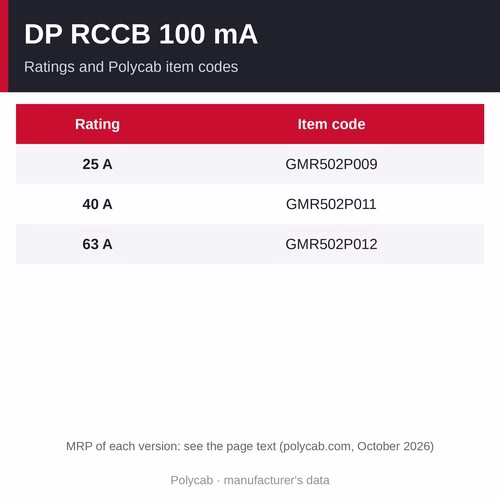

Ratings, item codes and MRP
- 25 A: item code GMR502P009 - MRP Rs 3,182
- 40 A: item code GMR502P011 - MRP Rs 3,467
- 63 A: item code GMR502P012 - MRP Rs 4,381
- MRP basis: MRPs as listed on polycab.com, October 2026, inclusive of taxes; the selling price is confirmed on enquiry
Why choose the Polycab DP RCCB 100 mA
- Larger terminals
- Real trip indicator - shows when it has tripped on a fault
- Test button to check the device
- Lockable knob for safe maintenance
- Air-flow channels
- Functionally independent of line voltage (electromechanical) - it does not depend on the supply voltage to trip
- Busbar or cable termination on both sides
- Line-load reversibility - it can be fed from the top or the bottom
- Label holder to identify the load
- Terminal shutter that stops a wire going into the wrong place during installation
- Combi-head screws and neutral marking (Polycab catalogue)
- Polycab item code and MRP for every rating - GMR502P009, GMR502P011 and GMR502P012
How to choose and fit it
Sensitivity. 100 mA is used for protection of equipment and groups of circuits, where several small leakage currents can add up; it does not give people the shock protection of a 30 mA device. Polycab makes this RCCB in 30, 100 and 300 mA.
It does not replace the MCB. An RCCB detects earth leakage only. It has no overload or short-circuit protection, so it is always used with an MCB or fuse - usually the incomer MCB of the distribution board ahead of it.
Rated current. 25, 40 or 63 A is the current the RCCB can carry continuously. Choose a rating at least equal to the MCB that protects it.
Poles. The double pole version is for a single-phase supply - phase and neutral. For a three-phase supply use the four-pole version.
Type AC or Type A. Polycab's technical catalogue lists this RCCB as Type AC, designed for sinusoidal AC leakage currents. Many homes and offices now have appliances with electronic components - inverter air conditioners, washing machines, induction cooktops, computers - whose leakage can include pulsating DC; for those circuits Polycab makes a Type A version in the same ratings (price on request). Type AC is not suitable for EV chargers, solar inverters or three-phase drives, which can leak smooth DC: Type A suits them only where their maker allows it, and otherwise they need a Type B device. Do not feed such equipment through this Type AC RCCB - smooth DC leakage can stop it tripping, even on an ordinary AC fault.
Testing. Press the test button regularly - many electricians advise once a month - to check that it still trips.
Where it is used
- equipment and groups of circuits where small leakage currents add up - machines, pumps and commercial installations
- used together with 30 mA RCCBs or RCBOs on the circuits where people need shock protection - it has no time delay, so a heavy earth fault on one of those circuits can trip it as well; selectivity needs a time-delayed (Type S) RCCB upstream

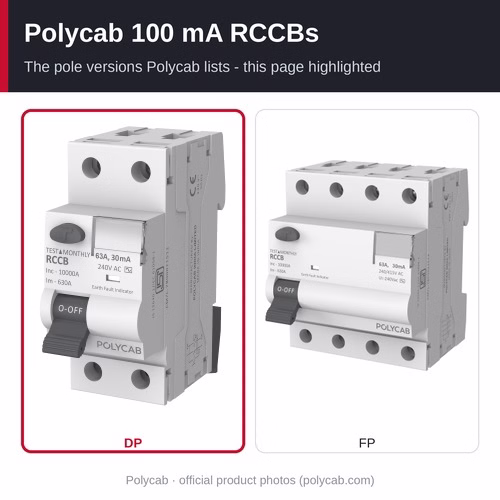

Other Polycab RCCBs
- Polycab DP RCCB 30 mA - Type AC, 25 A to 63 A, MRP Rs 3,075 - 4,333
- Polycab DP RCCB 100 mA (this page) - Type AC, 25 A to 63 A, MRP Rs 3,182 - 4,381
- Polycab DP RCCB 300 mA - Type AC, 25 A to 63 A, MRP Rs 3,182 - 4,381
- Polycab FP RCCB 30 mA - Type AC, 25 A to 63 A, MRP Rs 4,025 - 4,571
- Polycab FP RCCB 100 mA - Type AC, 25 A to 63 A, MRP Rs 4,096 - 4,630
- Polycab FP RCCB 300 mA - Type AC, 25 A to 63 A, MRP Rs 4,096 - 4,630
- Polycab DP RCCB Type A - also detects pulsating DC leakage; 25 A to 63 A, 30 / 100 / 300 mA, price on request
- Polycab FP RCCB Type A - also detects pulsating DC leakage; 25 A to 63 A, 30 / 100 / 300 mA, price on request
Related products
- Polycab SPN RCBO 100 mA - earth-leakage and overcurrent protection in one device
- Polycab 10kA C-Curve DP MCB - the incomer MCB that protects the RCCB (no larger than the RCCB's rating)
- Polycab SPN double-door distribution board
- All Polycab switchgear
Frequently asked questions
What does 100 mA mean on an RCCB?
It is the leakage current at which the RCCB trips. A 100 mA RCCB is used for protection of equipment and groups of circuits, where several small leakage currents can add up; it does not give people the shock protection of a 30 mA device.
Does an RCCB protect against overload and short circuit?
No. An RCCB only detects current leaking to earth. Use it with an MCB or fuse for overload and short-circuit protection, or use an RCBO, which does both.
Which rated current should I choose - 25, 40 or 63 A?
At least the rating of the MCB that protects the RCCB. For example, behind a 32 A incomer MCB choose a 40 A RCCB; behind a 63 A incomer choose 63 A.
Why does my RCCB trip?
Usually because current is leaking to earth - from damp wiring, a faulty appliance or a damaged cable. Switch off the circuits, reset the RCCB and switch them on one at a time to find the faulty one; ask an electrician to check it.
Type AC or Type A - which do I need?
This RCCB is Type AC, for sinusoidal AC leakage; it may not trip on pulsating DC. Where the circuits feed single-phase appliances with electronic components - inverter air conditioners, washing machines, induction cooktops, computers - choose Type A for those circuits, and follow the appliance maker's instructions and your electrician's advice. Type AC is not for EV chargers, solar inverters or three-phase drives that can leak smooth DC, and they should not be fed through it - smooth DC leakage can stop it tripping. Type A suits them only where their maker allows it; otherwise they need a Type B device. The Type A versions - Polycab DP RCCB Type A and Polycab FP RCCB Type A - come in 25, 40 and 63 A and 30, 100 and 300 mA, at a price on request.
What is the MRP of the Polycab DP RCCB 40 A 100 mA?
Rs 3,467 per piece, item code GMR502P011 - the MRP listed on polycab.com in October 2026, inclusive of taxes. Call +91 9340081159 for the selling price and stock.
Where can I buy the Polycab DP RCCB 100 mA in Chhattisgarh?
From Jai Enterprises, Bhilai and Raipur, which supplies Polycab switchgear all over Chhattisgarh - Korba, Bilaspur, Raigarh, Jagdalpur, Kanker, Ambikapur and every other district - and across India. Call +91 9340081159 with the rating, quantity and delivery location and we will confirm the price, stock and lead time.
How to order
Supplied by Jai Enterprises, Bhilai and Raipur, to every district of Chhattisgarh and across India. Polycab lists the DP RCCB 100 mA at MRP Rs 3,182 - 4,381 per piece (polycab.com, October 2026, inclusive of taxes). Call +91 9340081159 or send an enquiry from this page with the rating, the quantity (pieces) and the delivery location, and we will confirm the selling price, stock and lead time.
