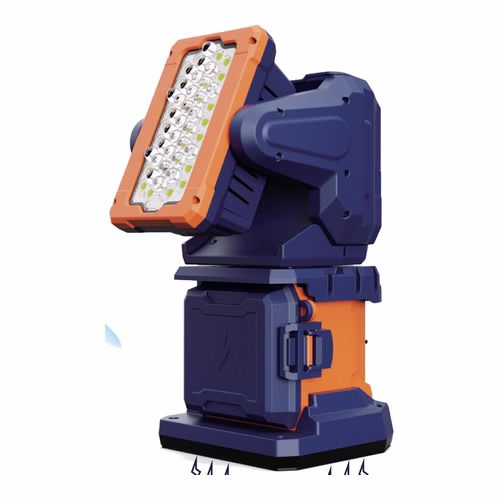

PT-200 Remote Control Magnetic PTZ Light - 12,000 Lumen, 4.4 kg

A magnetic work light you aim from 30 metres away. The PT-200 is a remote control magnetic PTZ light that runs on its own lithium iron phosphate battery packs, so it lights a site with no generator, no fuel and no cable run - silently, with no exhaust, and with nothing on site that can catch fire the way stored diesel can. It gives 12,000 lumens and runs 2 to 20 hours between charges. It weighs 4.4 kg. Price on application - Jai Enterprises supplies it across India from Bhilai and Raipur, Chhattisgarh. Call +91 9340081159 or email support@jaient.in for a quotation, stock and lead time.

Is this the right one for you?

Check these six things against the job in front of you. If any of them is wrong for your site, another model in the range will fit - they are listed further down.

• Light output - 12,000 lumens.
• Runtime - 2 to 20 hours on a charge.
• Weight - 4.4 kg, so one person can carry it.
• Weather rating - IP66.
• How it mounts - a magnetic base that clamps onto steel; it is not free-standing on the ground.
• Battery and charger - it takes the D24-100 pack, charged on the MC-1, MC-2 or TKC-9.

Specifications

• Model - PT-200
• Product type - Remote Control Magnetic PTZ Light
• Battery system - 24 V
• Light output - 12,000 lumens
• Runtime - 2 to 20 hours per charge
• Weight - 4.4 kg
• Ingress protection - IP66
• Remote control range - 30 m
• Head rotation - 360 degrees horizontal, 180 degrees vertical
• Battery pack - D24-100
• Chargers - MC-1, MC-2, TKC-9
• Solar charging - FS2-40, FS4-100, FS2-150
• List price - On application
• Supplied by - Jai Enterprises
• Despatched from - Bhilai and Raipur, Chhattisgarh - across India

Key features

• Aimed by remote control from up to 30 m away - nobody has to climb to move the beam
• Rotates 360 degrees horizontally and 180 degrees vertically under power
• Magnetic base clamps straight onto steel - mining trucks, fire trucks, ships, military vehicles, steel structures and scaffolding
• IP66 rated against dust and powerful water jets
• 12,000 lumens from the battery, for 2 to 20 hours depending on output

Where it is used

Machinery lighting, firefighting, mining, emergency repair, law enforcement and police work.

Why battery, not diesel

• Sustainable - nothing is burned, so there are no exhaust emissions and no carbon at the point of use, and no fuel has to be trucked to site. The lithium iron phosphate packs are rechargeable for hundreds of cycles and can be topped up from a folding solar panel instead of the grid.
• Ultra portable - it weighs 4.4 kg and has no mast to raise - set it down where the work is and pick it up when the work moves.
• Noise free - it runs at 0 dB. There is no engine, so it can work beside housing, hospital wards, hotels and station platforms through the night without a noise objection, and people can talk normally next to it.
• No fuel on site, so no fuel fire risk - a diesel set brings a tank, jerricans, spills and a hot exhaust to the work face. This remote control magnetic PTZ light brings none of that: nothing to store, nothing to spill and nothing to ignite near dry ground, fuel handling or confined spaces. The cells are lithium iron phosphate, the most thermally stable of the common lithium chemistries.

Other lights in the range

• PS-200 Portable Site Light - 6,000 Lumen, 2 kg
• TL-200 Portable Light Tower - 2.3 m Mast, 12,000 Lumen
• PL-200 Petal Light Tower - 2.5 m Mast, 12,000 Lumen
• PT-200H Remote Control PTZ Light - 2.3 m Mast, 12,000 Lumen
• TL-300 Portable Light Tower - 3.1 m Mast, 14,000 Lumen
• PL-300 Petal Light Tower - 3.4 m Mast, 14,000 Lumen

Batteries and power for it

• D24-100 LFP Battery Pack - 24 V Lithium Iron Phosphate for the Portable Lights and Stands
• MC-1 Lithium Battery Charger - Single Bay AC Charger for One D24-100 Pack
• MC-2 Dual Bay Battery Charger - Charges Two D24-100 Packs at Once

See the full remote control PTZ light range - every model, side by side.

Frequently Asked Questions

How bright is the PT-200?

12,000 lumens.

How long does the PT-200 run on one charge?

2 to 20 hours. The short figure is full output and the long figure is the lowest setting, so real runtime sits between the two depending on how much light you ask for.

Can the PT-200 be charged from solar?

Yes. It charges from the FS2-40, FS4-100, FS2-150 foldable solar panels; the FS2-150 needs a dedicated S24-150 MPPT controller.

Does the PT-200 make noise or need fuel?

No. It is battery powered, so it runs at 0 dB with no diesel, no exhaust and no engine to service. That is what lets it work overnight beside housing, hospitals and platforms where a diesel tower would not be allowed.

Is the PT-200 safer around fuel, dry ground or confined spaces?

There is no diesel with it - no tank, no jerricans, no spills and no hot exhaust - so it does not bring the fuel fire risk a generator set brings to a refinery, a fuel farm, dry vegetation or an enclosed space. It also produces no exhaust fumes, which is what rules a diesel set out indoors. The cells are lithium iron phosphate, the most thermally stable of the common lithium chemistries. Site rules still apply - check them for your location.

What does the PT-200 cost and who supplies it in India?

Price is on application - it is quoted against quantity and delivery location. Jai Enterprises supplies it across India from Bhilai and Raipur, Chhattisgarh. Call +91 9340081159 or email support@jaient.in with the model and quantity and we will confirm price, stock and lead time.

Specifications are taken from the manufacturer catalogue. Price on application - list prices are quoted against quantity and delivery location. Supplied across India by Jai Enterprises, from Bhilai and Raipur in Chhattisgarh.
