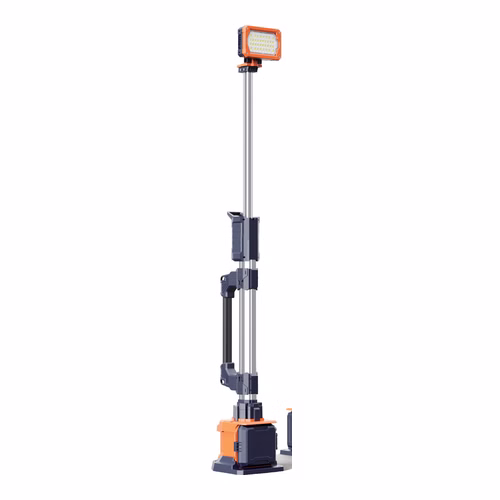

TL-100 Portable Light Tower - 1.4 m Mast, 4,000 Lumen

The smallest tower in the range - 3 kg, and open in two seconds. The TL-100 is a portable light tower that runs on its own lithium iron phosphate battery packs, so it lights a site with no generator, no fuel and no cable run - silently, with no exhaust, and with nothing on site that can catch fire the way stored diesel can. The mast telescopes from 0.9 m folded to 1.4 m working, in about 2 seconds. It gives 4,000 lumens and runs 4 to 44 hours between charges. It weighs 3 kg. Price on application - Jai Enterprises supplies it across India from Bhilai and Raipur, Chhattisgarh. Call +91 9340081159 or email support@jaient.in for a quotation, stock and lead time.

Is this the right one for you?

Check these six things against the job in front of you. If any of them is wrong for your site, another model in the range will fit - they are listed further down.

• Working height - the mast reaches 1.4 m and folds down to 0.9 m for transport.
• Light output - 4,000 lumens.
• Runtime - 4 to 44 hours on a charge, from 1 battery pack on board.
• Weight - 3 kg, so one person can carry it.
• Battery and charger - it takes the D24-100 pack, charged on the MC-1, MC-2 or TKC-9.
• Mains option - the X1-75 lets it run straight off an AC supply instead of the battery.

Specifications

• Model - TL-100
• Product type - Portable Light Tower
• Battery system - 24 V
• Working height - 0.9 m folded to 1.4 m extended
• Deploy / fold time - 2 seconds
• Light output - 4,000 lumens
• Runtime - 4 to 44 hours per charge (1 battery pack)
• Weight - 3 kg
• Battery pack - D24-100
• Chargers - MC-1, MC-2, TKC-9
• Mains accessory - X1-75
• Solar charging - FS2-40, FS4-100, FS2-150
• List price - On application
• Supplied by - Jai Enterprises
• Despatched from - Bhilai and Raipur, Chhattisgarh - across India

Key features

• Deploys and folds in about 2 seconds - pull it up and it is lit
• Only 3 kg, so it goes in a tool bag rather than a van rack
• One replaceable battery pack gives up to 44 hours of light
• Telescopic mast lifts the beam to 1.4 m, clear of benches and machinery

Where it is used

Electrical work, railway maintenance, agriculture, road construction, inspection and auto repair.

Why battery, not diesel

• Sustainable - nothing is burned, so there are no exhaust emissions and no carbon at the point of use, and no fuel has to be trucked to site. The lithium iron phosphate packs are rechargeable for hundreds of cycles and can be topped up from a folding solar panel instead of the grid.
• Ultra portable - it folds to 0.9 m and weighs 3 kg, so one person carries it to the work face and back - no trailer, no towing vehicle and no licence.
• Noise free - it runs at 0 dB. There is no engine, so it can work beside housing, hospital wards, hotels and station platforms through the night without a noise objection, and people can talk normally next to it.
• No fuel on site, so no fuel fire risk - a diesel set brings a tank, jerricans, spills and a hot exhaust to the work face. This portable light tower brings none of that: nothing to store, nothing to spill and nothing to ignite near dry ground, fuel handling or confined spaces. The cells are lithium iron phosphate, the most thermally stable of the common lithium chemistries.

Other lights in the range

• TL-400 Portable Light Tower - 2.2 m Mast, 17,000 Lumen
• TL-200 Portable Light Tower - 2.3 m Mast, 12,000 Lumen
• PT-200H Remote Control PTZ Light - 2.3 m Mast, 12,000 Lumen
• PL-200 Petal Light Tower - 2.5 m Mast, 12,000 Lumen
• TL-300 Portable Light Tower - 3.1 m Mast, 14,000 Lumen
• PL-300 Petal Light Tower - 3.4 m Mast, 14,000 Lumen

Batteries and power for it

• D24-100 LFP Battery Pack - 24 V Lithium Iron Phosphate for the Portable Lights and Stands
• MC-1 Lithium Battery Charger - Single Bay AC Charger for One D24-100 Pack
• MC-2 Dual Bay Battery Charger - Charges Two D24-100 Packs at Once
• X1-75 AC Driver - Mains Plug-In Power Supply for the Portable Lights

See the full battery light tower range - every model, side by side.

Frequently Asked Questions

How high does the TL-100 go?

The mast extends to 1.4 metres and folds down to 0.9 metres for transport. It takes about 2 seconds to raise or fold.

How bright is the TL-100?

4,000 lumens.

How long does the TL-100 run on one charge?

4 to 44 hours, from 1 D24-100 battery pack on board. The short figure is full output and the long figure is the lowest setting, so real runtime sits between the two depending on how much light you ask for.

Can the TL-100 run on mains instead of the battery?

Yes. The X1-75 is a plug-in accessory that runs it straight off an AC supply between 100 V and 277 V, which covers Indian 230 V single phase.

Can the TL-100 be charged from solar?

Yes. It charges from the FS2-40, FS4-100, FS2-150 foldable solar panels; the FS2-150 needs a dedicated S24-150 MPPT controller.

Does the TL-100 make noise or need fuel?

No. It is battery powered, so it runs at 0 dB with no diesel, no exhaust and no engine to service. That is what lets it work overnight beside housing, hospitals and platforms where a diesel tower would not be allowed.

Is the TL-100 safer around fuel, dry ground or confined spaces?

There is no diesel with it - no tank, no jerricans, no spills and no hot exhaust - so it does not bring the fuel fire risk a generator set brings to a refinery, a fuel farm, dry vegetation or an enclosed space. It also produces no exhaust fumes, which is what rules a diesel set out indoors. The cells are lithium iron phosphate, the most thermally stable of the common lithium chemistries. Site rules still apply - check them for your location.

What does the TL-100 cost and who supplies it in India?

Price is on application - it is quoted against quantity and delivery location. Jai Enterprises supplies it across India from Bhilai and Raipur, Chhattisgarh. Call +91 9340081159 or email support@jaient.in with the model and quantity and we will confirm price, stock and lead time.

Specifications are taken from the manufacturer catalogue. Price on application - list prices are quoted against quantity and delivery location. Supplied across India by Jai Enterprises, from Bhilai and Raipur in Chhattisgarh.
