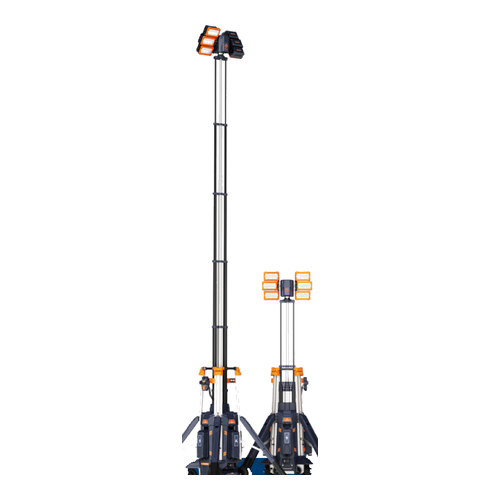

TL-600 Mobile Light Tower - 6 m Mast, 105,000 Lumen

The biggest tower in the range - a direct replacement for a towed diesel light tower. The TL-600 is a mobile light tower that runs on its own lithium iron phosphate battery packs, so it lights a site with no generator, no fuel and no cable run - silently, with no exhaust, and with nothing on site that can catch fire the way stored diesel can. The mast telescopes from 1.6 m folded to 6 m working. It gives 105,000 lumens and runs 10 to 70 hours between charges. It weighs 82 kg. Price on application - Jai Enterprises supplies it across India from Bhilai and Raipur, Chhattisgarh. Call +91 9340081159 or email support@jaient.in for a quotation, stock and lead time.

Is this the right one for you?

Check these six things against the job in front of you. If any of them is wrong for your site, another model in the range will fit - they are listed further down.

• Working height - the mast reaches 6 m and folds down to 1.6 m for transport.
• Light output - 105,000 lumens.
• Runtime - 10 to 70 hours on a charge, from 3 battery packs on board.
• Weight - 82 kg, so one person can wheel and raise it, but it is not a one-hand carry.
• Battery and charger - it takes the D70-1000 pack, charged on the TKC-3.
• Mains option - the XVE550 lets it run straight off an AC supply instead of the battery.

Specifications

• Model - TL-600
• Product type - Mobile Light Tower
• Battery system - 70 V
• Working height - 1.6 m folded to 6 m extended
• Light output - 105,000 lumens
• Runtime - 10 to 70 hours per charge (3 battery packs)
• Weight - 82 kg
• Battery pack - D70-1000
• Chargers - TKC-3
• Mains accessory - XVE550
• Solar charging - FS2-150
• List price - On application
• Supplied by - Jai Enterprises
• Despatched from - Bhilai and Raipur, Chhattisgarh - across India

Key features

• Runs silently at 0 dB - no engine, so it can work overnight next to housing, wards and platforms
• No diesel to buy, no fuel to carry and no refuelling stop in the middle of a shift
• Zero carbon emissions and zero exhaust fumes at the work face
• No engine servicing, oil changes or filters - maintenance cost is effectively nil
• No trailer and no towing vehicle needed, so there is no trailer cost or licence to manage
• Remote lamp aiming - the head is aimed from the ground with the remote, with no lowering and no manual adjustment
• Lamp head covers 270 degrees on each side and a full 360 degrees around the mast

Where it is used

Mining and quarrying, municipal works, disaster relief, refining and petrochemical plants, power maintenance and night sports and events.

Why battery, not diesel

• Sustainable - nothing is burned, so there are no exhaust emissions and no carbon at the point of use, and no fuel has to be trucked to site. The lithium iron phosphate packs are rechargeable for hundreds of cycles and can be topped up from a folding solar panel instead of the grid.
• Ultra portable - it folds to 1.6 m and one person wheels, raises and loads it. It fits a standard vehicle, so there is no trailer to tow and no trailer cost.
• Noise free - it runs at 0 dB. There is no engine, so it can work beside housing, hospital wards, hotels and station platforms through the night without a noise objection, and people can talk normally next to it.
• No fuel on site, so no fuel fire risk - a diesel set brings a tank, jerricans, spills and a hot exhaust to the work face. This mobile light tower brings none of that: nothing to store, nothing to spill and nothing to ignite near dry ground, fuel handling or confined spaces. The cells are lithium iron phosphate, the most thermally stable of the common lithium chemistries.

Other lights in the range

• TL-500 Mobile Light Tower - 5.3 m Mast, 65,000 Lumen
• TL-500 Mobile Light Tower - 4.2 m Mast, 62,000 Lumen
• PL-300 Petal Light Tower - 3.4 m Mast, 14,000 Lumen
• TL-300 Portable Light Tower - 3.1 m Mast, 14,000 Lumen
• PL-200 Petal Light Tower - 2.5 m Mast, 12,000 Lumen
• TL-200 Portable Light Tower - 2.3 m Mast, 12,000 Lumen

Batteries and power for it

• D70-1000 LFP Battery Pack - 70 V Lithium Iron Phosphate for TL-600
• TKC-3 Battery Backup Case - Charges 3 x D70-1000 Packs
• XVE550 AC Adapter - Mains Supply for the TL-600 with Simultaneous Charging

See the full battery light tower range - every model, side by side.

Frequently Asked Questions

How high does the TL-600 go?

The mast extends to 6 metres and folds down to 1.6 metres for transport.

How bright is the TL-600?

105,000 lumens.

How long does the TL-600 run on one charge?

10 to 70 hours, from 3 D70-1000 battery packs on board. The short figure is full output and the long figure is the lowest setting, so real runtime sits between the two depending on how much light you ask for.

Can the TL-600 run on mains instead of the battery?

Yes. The XVE550 is a plug-in accessory that runs it straight off an AC supply between 100 V and 277 V, which covers Indian 230 V single phase.

Can the TL-600 be charged from solar?

Yes. It charges from the FS2-150 foldable solar panel; the FS2-150 needs a dedicated S70-150, S70-750 MPPT controller.

Does the TL-600 make noise or need fuel?

No. It is battery powered, so it runs at 0 dB with no diesel, no exhaust and no engine to service. That is what lets it work overnight beside housing, hospitals and platforms where a diesel tower would not be allowed.

Is the TL-600 safer around fuel, dry ground or confined spaces?

There is no diesel with it - no tank, no jerricans, no spills and no hot exhaust - so it does not bring the fuel fire risk a generator set brings to a refinery, a fuel farm, dry vegetation or an enclosed space. It also produces no exhaust fumes, which is what rules a diesel set out indoors. The cells are lithium iron phosphate, the most thermally stable of the common lithium chemistries. Site rules still apply - check them for your location.

What does the TL-600 cost and who supplies it in India?

Price is on application - it is quoted against quantity and delivery location. Jai Enterprises supplies it across India from Bhilai and Raipur, Chhattisgarh. Call +91 9340081159 or email support@jaient.in with the model and quantity and we will confirm price, stock and lead time.

Specifications are taken from the manufacturer catalogue. Price on application - list prices are quoted against quantity and delivery location. Supplied across India by Jai Enterprises, from Bhilai and Raipur in Chhattisgarh.
