Polycab 10kA C-Curve FP MCB – Four Pole Miniature Circuit Breaker, 0.5 A to 125 A
Four pole MCB, C curve, 10 kA, 0.5 A to 125 A. MRP Rs 1,871 - 2,784 per piece; 80 to 125 A: price on request.
MRP Rs 1,871 - 2,784 per piece (0.5 to 63 A)

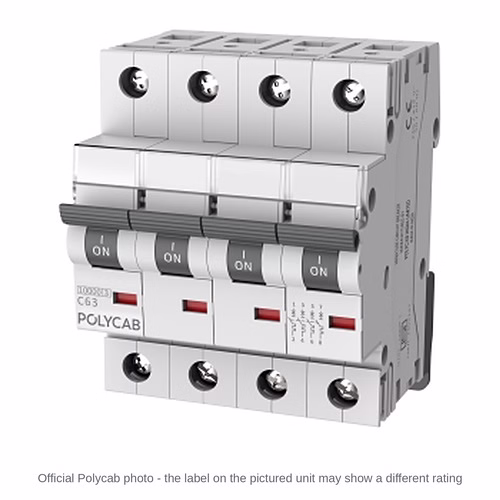

The Polycab 10kA C-Curve FP MCB is a four pole (4 pole) miniature circuit breaker with a C tripping curve and 10 kA breaking capacity. Its 14 ratings from 0.5 to 63 A - 0.5, 1, 2, 3, 4, 5, 6, 10, 16, 20, 25, 32, 40 and 63 A - are made to IS/IEC 60898-1 for 240/415 V AC, 50 Hz, at MRP Rs 1,871 to Rs 2,784 per piece (polycab.com, October 2026). Polycab's switchgear technical catalogue (October 2024 edition) also lists 80, 100 and 125 A versions - C curve, 10 kA, made to IS/IEC 60947-2 - at a price on request.
Polycab India Limited is India's largest manufacturer of wires and cables, with 27 manufacturing facilities, 4,300+ authorised distributors, 2,00,000+ retailers and an export presence in 84 countries (polycab.com, October 2026). Its switchgear range covers MCBs, RCCBs, RCBOs, isolators, changeover switches, ACCLs and distribution boards. Jai Enterprises supplies Polycab MCBs from Bhilai and Raipur all over Chhattisgarh - Bhilai, Raipur, Durg, Korba, Bilaspur, Raigarh, Jagdalpur, Kanker, Ambikapur and every other district - and across India.
Is this the right one for you?
Check these five things before you order:
- It will be the incomer of a TPN distribution board - Polycab makes its TPN boards for an FP incoming MCB - or switch all four conductors of another three-phase circuit with neutral (four pole).
- Your load suits a C curve: three-phase pumps, compressors, motors and mixed three-phase loads.
- The prospective short-circuit current where the MCB is fitted does not exceed 10 kA.
- The rating you need is 0.5, 1, 2, 3, 4, 5, 6, 10, 16, 20, 25, 32, 40 or 63 A, or 80, 100 or 125 A (price on request) - the rating must suit the cable it protects.
- For 80 to 125 A: the board has room for the wider breaker - 107.2 mm against 70 mm for the smaller ratings - and a busbar to suit; the pin or fork busbar of the smaller MCBs does not fit. Your cables suit the rating and fit the terminals (up to 50 sq mm).

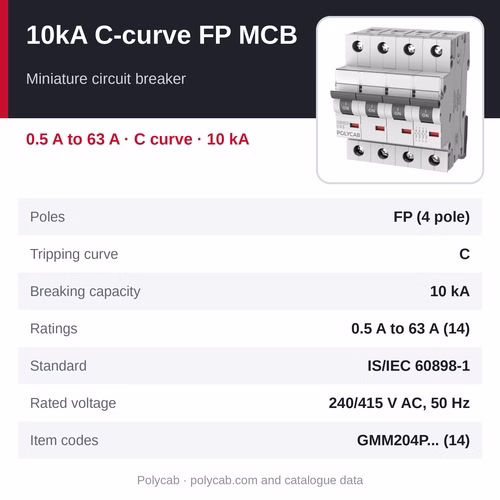

At a glance
- MRP: Rs 1,871 - 2,784 per piece (polycab.com, October 2026, inclusive of taxes); 80 to 125 A: price on request
- Product: Polycab 10kA C-Curve FP MCB
- Type: four pole MCB, C curve, 10 kA
- Poles: FP - four pole (4 pole)
- Tripping curve: C
- Breaking capacity: 10 kA
- Ratings: 0.5, 1, 2, 3, 4, 5, 6, 10, 16, 20, 25, 32, 40 and 63 A; 80, 100 and 125 A (price on request)
- Item codes: GMM204P001 to GMM204P008 and GMM204P012 to GMM204P017; GMM204P080, GMM204P0100 and GMM204P0125 (80 to 125 A)
- Standard: IS/IEC 60898-1 (0.5 to 63 A); IS/IEC 60947-2 (80 to 125 A)
- Rated voltage: 240/415 V AC, 50 Hz (0.5 to 63 A); 415 V AC (80 to 125 A)
- Width: 70 mm (0.5 to 63 A); 107.2 mm (80 to 125 A)
- Warranty: 7 years for the 0.5 to 63 A ratings (as listed by Polycab); ask us for 80 to 125 A

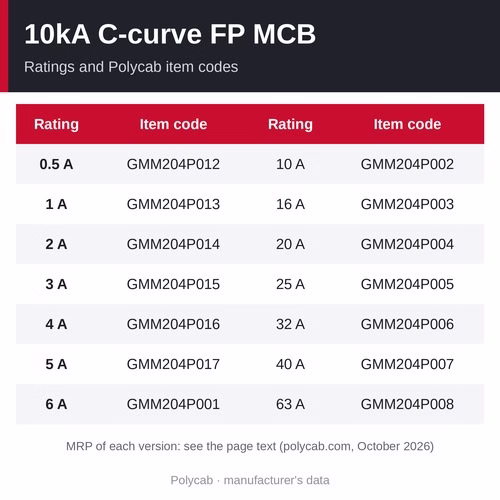

Ratings, item codes and MRP
- 0.5 A: item code GMM204P012 - MRP Rs 2,326
- 1 A: item code GMM204P013 - MRP Rs 2,326
- 2 A: item code GMM204P014 - MRP Rs 2,326
- 3 A: item code GMM204P015 - MRP Rs 2,326
- 4 A: item code GMM204P016 - MRP Rs 2,326
- 5 A: item code GMM204P017 - MRP Rs 2,326
- 6 A: item code GMM204P001 - MRP Rs 1,871
- 10 A: item code GMM204P002 - MRP Rs 1,871
- 16 A: item code GMM204P003 - MRP Rs 1,871
- 20 A: item code GMM204P004 - MRP Rs 1,871
- 25 A: item code GMM204P005 - MRP Rs 1,871
- 32 A: item code GMM204P006 - MRP Rs 1,871
- 40 A: item code GMM204P007 - MRP Rs 2,550
- 63 A: item code GMM204P008 - MRP Rs 2,784
- 80 A: item code GMM204P080 - price on request
- 100 A: item code GMM204P0100 - price on request
- 125 A: item code GMM204P0125 - price on request
- 80 to 125 A ratings: C curve, made to IS/IEC 60947-2, rated 415 V AC, rated short-circuit capacity 10 kA (Icn, as Polycab lists it) and Ics 7.5 kA, terminals up to 50 sq mm (tightening torque 3.5 Nm), 107.2 mm wide and 80.5 mm high; listed in Polycab's switchgear technical catalogue (October 2024 edition), pp 32 and 33, at a price on request
- MRP basis: MRPs as listed on polycab.com, October 2026, inclusive of taxes; the selling price is confirmed on enquiry
- 0.5 to 5 A ratings: for control circuits, indicator and instrument supplies and other small loads
Why choose the Polycab 10kA C-Curve FP MCB
- Easy removal from the DIN rail
- Positive contact position indication - the handle shows whether the contacts are really open
- Finger-proof IP20 terminals
- Air-flow channels to keep the breaker cool
- Label holder to mark the circuit
- 7-year warranty listed by Polycab for the 0.5 to 63 A ratings
- High-quality contact tips
- Large terminals that take copper or aluminium conductors
- Bi-connect terminals on both sides - busbar or cable (0.5 to 63 A)
- Line-load reversibility - it can be fed from the top or the bottom
- 10 kA breaking capacity, and energy limiting class 3 as Polycab's catalogue lists for the range
- 80, 100 and 125 A versions - C curve, 10 kA, made to IS/IEC 60947-2 - for heavier loads (price on request); the other features in this list are those Polycab gives for the 0.5 to 63 A ratings
- Polycab item code for every rating and the MRP for 0.5 to 63 A, so the order matches the drawing - GMM204P001 to GMM204P008, GMM204P012 to GMM204P017, GMM204P080, GMM204P0100 and GMM204P0125
How to choose and fit it
Tripping curve. Under IS/IEC 60898-1, a B-curve MCB trips instantly at 3 to 5 times its rated current, a C-curve at 5 to 10 times and a D-curve at 10 to 20 times. This C-curve breaker trips instantly at 5 to 10 times its rating, which suits three-phase loads with a moderate switch-on surge - pumps, compressors, air-handling units, motors and the mixed loads of three-phase sub-boards; it is the most widely used curve. (The 80 to 125 A ratings are made to IS/IEC 60947-2, which does not define B, C and D curves; Polycab lists them as C curve.)

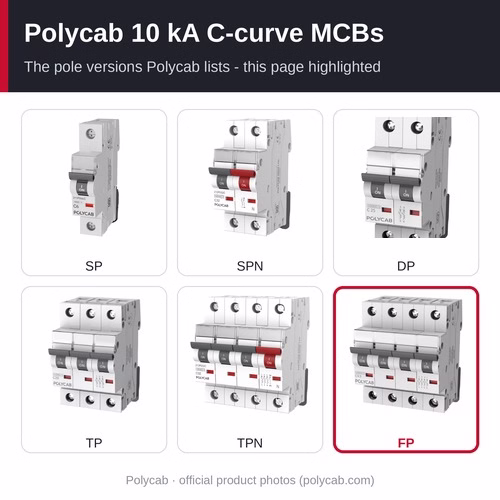

Poles. A four pole MCB is used for the incomer of a three-phase distribution board, or any three-phase circuit with neutral, with all four poles switched. In the 10 kA C-curve range Polycab lists SP, SPN, DP, TP, TPN and FP.
Breaking capacity. 10 kA is the largest short-circuit current the breaker can safely interrupt. Choose a breaking capacity at least equal to the prospective fault current where it is fitted - your electrician or consultant checks this at the board.
Rating. Choose a rating above the running current of the load and within the current-carrying capacity of the cable it protects; for motors, also check the starting current against the curve and the motor maker's recommendation.
80 to 125 A. Polycab's switchgear technical catalogue (October 2024 edition) lists these higher ratings for heavy-duty devices, commercial and industrial settings and solar systems. They are AC breakers (415 V AC), so in a solar system they go on the AC side - DC circuits need breakers rated for DC at the string's maximum open-circuit voltage. At about 27 mm per pole (107.2 mm against 70 mm for the 0.5 to 63 A ratings) they need more room, so check the space in the board, and that its busbar and the cables suit the rating. The catalogue gives no temperature derating or reverse-feed rating for them, so leave a margin in a hot panel and ask us before feeding one from its outgoing terminals, for example from an inverter. Polycab's RCCBs go up to 63 A, and an RCCB must be rated at least as high as the MCB that protects it, so do not fit one directly behind an 80, 100 or 125 A breaker - put the RCCBs on the outgoing circuits, each behind an MCB no larger than its rating. Price on request.
Mounting. It clips on a standard DIN rail inside a distribution board or MCB enclosure.
Where it is used
- incomer of TPN distribution boards in homes, offices, shops and factories
- three-phase sub-mains and feeders with neutral
- three-phase machines and equipment with neutral
- homes, apartments, offices, shops, hospitals, schools and factories
- three-phase 80 to 125 A feeders and heavy-duty loads in commercial and industrial buildings, and the AC side of three-phase solar systems (price on request)
Other Polycab 10 kA MCBs
- Polycab 10kA B-Curve SP MCB - 6 A to 40 A, MRP Rs 235 - 531
- Polycab 10kA C-Curve SP MCB - 0.5 A to 63 A, MRP Rs 248 - 633; 80 to 125 A: price on request
- Polycab 10kA C-Curve SPN MCB - 6 A to 63 A, MRP Rs 855 - 1,392
- Polycab 10kA C-Curve DP MCB - 0.5 A to 63 A, MRP Rs 871 - 1,408; 80 to 125 A: price on request
- Polycab 10kA C-Curve TP MCB - 0.5 A to 63 A, MRP Rs 1,410 - 2,179; 80 to 125 A: price on request
- Polycab 10kA C-Curve TPN MCB - 6 A to 63 A, MRP Rs 1,862 - 2,690
- Polycab 10kA C-Curve FP MCB (this page) - 0.5 A to 63 A, MRP Rs 1,871 - 2,784; 80 to 125 A: price on request
- Polycab 10kA D-Curve SP MCB - 6 A to 63 A, MRP Rs 459 - 729
- Polycab 10kA D-Curve DP MCB - 6 A to 63 A, MRP Rs 982 - 1,576
- Polycab 10kA D-Curve TP MCB - 6 A to 63 A, MRP Rs 1,588 - 2,311
- Polycab 10kA D-Curve FP MCB - 6 A to 63 A, MRP Rs 2,058 - 2,964
Related products
- Polycab 6kA C-Curve FP MCB - the same pole and curve in the 6 kA range
- Polycab FP MCCB - a moulded case circuit breaker, 63 to 125 A, for feeders and panel incomers (price on request)
- Polycab FP RCCB 30 mA - adds earth-leakage protection, which an MCB does not give (25 to 63 A - behind an MCB no larger than its rating)
- Polycab TPN double-door distribution board - to house the MCBs
- All Polycab switchgear
Frequently asked questions
What does "C curve" mean on an MCB?
It describes how quickly the breaker trips on a surge. Under IS/IEC 60898-1 a C-curve MCB trips instantly at 5 to 10 times its rated current, which suits three-phase pumps, compressors, motors and mixed three-phase loads. B trips at 3 to 5 times, C at 5 to 10 times and D at 10 to 20 times the rating.
Which pole type do I need?
SP protects one single-phase circuit; SPN switches the neutral together with the phase; DP switches and protects phase and neutral of a single-phase supply; TP is for three-phase loads without neutral; TPN switches the neutral together with the three phases; FP switches all four poles of a three-phase supply with neutral and is the usual incomer of a TPN distribution board. This page is the four pole (FP) version; in the 10 kA C-curve range Polycab lists SP, SPN, DP, TP, TPN and FP.
Should I choose a 10 kA or a 6 kA MCB?
Choose a breaking capacity at least equal to the prospective short-circuit current at the board. 6 kA is common in homes; 10 kA is the safer choice for commercial buildings, boards close to the transformer and industrial supplies. Polycab makes the FP C-curve MCB in both.
TPN or FP - which do I need?
Both switch the three phases and the neutral together. A TPN (3 pole + N) breaker has three protected poles and a switched neutral; an FP (4 pole) breaker has four poles and is the incomer Polycab makes its TPN distribution boards for. If you are not sure which your board or circuit needs, ask us or your electrician.
Is there an 80, 100 or 125 A version?
Yes. Polycab's switchgear technical catalogue (October 2024 edition) lists the FP C-curve 10 kA MCB in 80 A (GMM204P080), 100 A (GMM204P0100) and 125 A (GMM204P0125), made to IS/IEC 60947-2 for 415 V AC with a 7.5 kA service breaking capacity (Ics), at a price on request. They are 107.2 mm wide, against 70 mm for the 0.5 to 63 A ratings. Call +91 9340081159 for the price and lead time. For a feeder or panel incomer that needs 10 kA in service (Ics) at 415 V AC, a shunt release, an auxiliary switch or a rotary handle on the panel door, see the Polycab FP MCCB.
Do I still need an RCCB with an MCB?
Yes, for protection against electric shock and earth-leakage fires. An MCB protects against overload and short circuit only; an RCCB (or an RCBO, which combines both) detects current leaking to earth.
What is the MRP of the Polycab 32 A 10kA C-curve FP MCB?
Rs 1,871 per piece, item code GMM204P006 - the MRP listed on polycab.com in October 2026, inclusive of taxes. Call +91 9340081159 for the selling price and stock.
Where can I buy the Polycab 10kA C-Curve FP MCB in Chhattisgarh?
From Jai Enterprises, Bhilai and Raipur, which supplies Polycab switchgear all over Chhattisgarh - Korba, Bilaspur, Raigarh, Jagdalpur, Kanker, Ambikapur and every other district - and across India. Call +91 9340081159 with the rating, quantity and delivery location and we will confirm the price, stock and lead time.
How to order
Supplied by Jai Enterprises, Bhilai and Raipur, to every district of Chhattisgarh and across India. Polycab lists the 0.5 to 63 A ratings of the 10kA C-Curve FP MCB at MRP Rs 1,871 - 2,784 per piece (polycab.com, October 2026, inclusive of taxes); the 80, 100 and 125 A versions are supplied at a price on request. Call +91 9340081159 or send an enquiry from this page with the rating, the quantity (pieces) and the delivery location, and we will confirm the selling price, stock and lead time.
