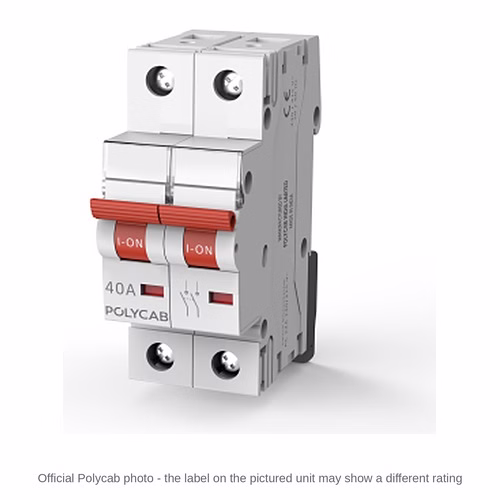

Polycab DP Isolator – 2 Pole Isolator Switch, 40 A to 125 A, AC-22A, IS/IEC 60947-3

The Polycab DP Isolator is a double pole (2 pole) isolator - a manually operated switch that switches a circuit on and off under load and isolates it for safe work - made to IS/IEC 60947-3 with utilisation category AC-22A, for 240/415 V AC, 50 Hz. Polycab lists it in 40, 63, 80, 100 and 125 A at MRP Rs 600 to Rs 1,003 per piece (polycab.com, October 2026).

Polycab India Limited is India's largest manufacturer of wires and cables, with 27 manufacturing facilities, 4,300+ authorised distributors, 2,00,000+ retailers and an export presence in 84 countries (polycab.com, October 2026). Its switchgear range covers MCBs, RCCBs, RCBOs, isolators, changeover switches, ACCLs and distribution boards. Jai Enterprises supplies Polycab isolators from Bhilai and Raipur all over Chhattisgarh - Bhilai, Raipur, Durg, Korba, Bilaspur, Raigarh, Jagdalpur, Kanker, Ambikapur and every other district - and across India.

Is this the right one for you?

Check these four things before you order:

• You need to switch and isolate a single-phase supply - phase and neutral (double pole).
• Overload and short-circuit protection comes from an MCB, RCBO or fuse - an isolator does not trip.
• The rating you need is 40, 63, 80, 100 or 125 A, at least the current of the circuit it switches.
• You want a switch that can be padlocked off during maintenance.

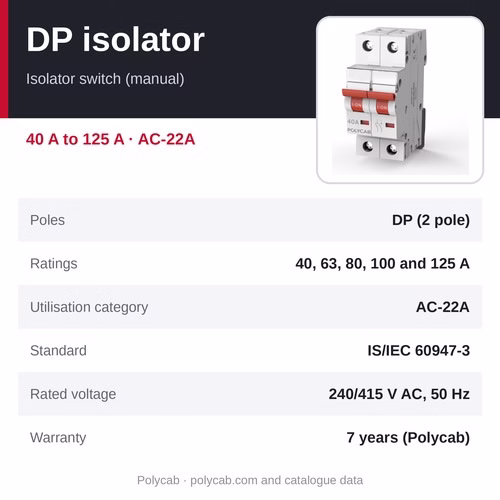

At a glance

• MRP: Rs 600 - 1,003 per piece (polycab.com, October 2026, inclusive of taxes)
• Product: Polycab DP Isolator
• Type: isolator (switch-disconnector), manual
• Poles: DP - double pole (2 pole)
• Ratings: 40, 63, 80, 100 and 125 A
• Utilisation category: AC-22A - mixed resistive and inductive loads
• Standard: IS/IEC 60947-3
• Rated voltage: 240/415 V AC, 50 Hz
• Item codes: GMS502P001 to GMS502P005
• Warranty: 7 years (as listed by Polycab)

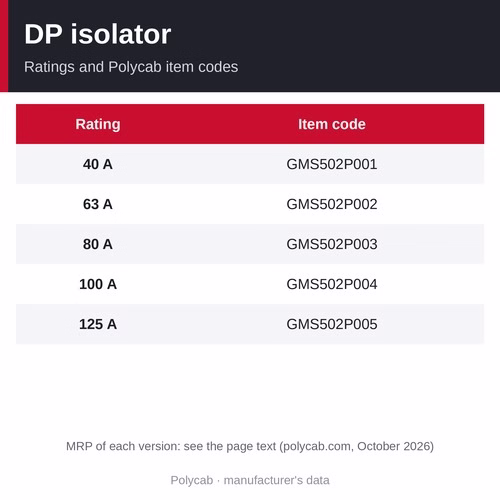

Ratings, item codes and MRP

• 40 A: item code GMS502P001 - MRP Rs 600
• 63 A: item code GMS502P002 - MRP Rs 735
• 80 A: item code GMS502P003 - MRP Rs 957
• 100 A: item code GMS502P004 - MRP Rs 967
• 125 A: item code GMS502P005 - MRP Rs 1,003
• MRP basis: MRPs as listed on polycab.com, October 2026, inclusive of taxes; the selling price is confirmed on enquiry

Why choose the Polycab DP Isolator

• Real contact position indication
• Large terminals with a safety shutter
• Circuit label holder
• Padlocking provision, to lock it off during maintenance
• Dual-contact breaking mechanism
• Finger-proof IP20 terminals
• Bi-connect terminals on both sides - busbar or cable
• Air-flow channels
• 7-year warranty listed by Polycab
• Bi-stable DIN clip for easy installation
• Line-load reversibility - it can be fed from the top or the bottom
• Polycab item code and MRP for every rating - GMS502P001 to GMS502P005

How to choose and fit it

What an isolator does. It switches the load on and off and, when off, separates the circuit from the supply so that work can be done on it safely. It has no automatic trip.

Protection. Fit it with an MCB, RCBO or fuse for overload and short-circuit protection, and an RCCB where earth-leakage protection is needed.

Rating. Choose a rating at least equal to the current of the circuit, and at least the rating of the protective device ahead of it. Polycab lists 40, 63, 80, 100 and 125 A.

Poles. The double pole version switches a single-phase supply - phase and neutral. Polycab makes the isolator in SP, DP, TP and FP.

Mounting. It clips on a standard DIN rail in a distribution board or enclosure.

Where it is used

• main switch of single-phase distribution boards - isolates phase and neutral
• local isolation of single-phase pumps, air conditioners and machines
• homes, offices, shops, hospitals and factories

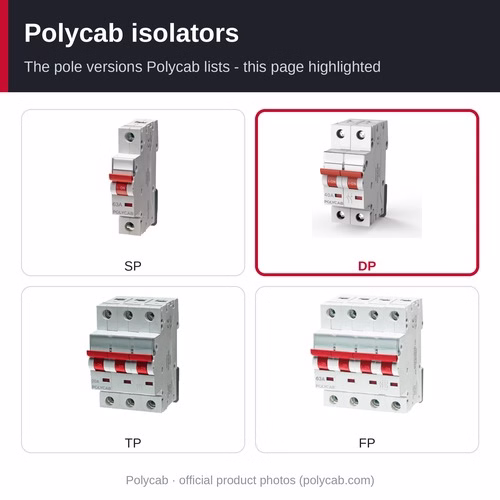

Other Polycab isolators

• Polycab SP Isolator - 40 A to 63 A, MRP Rs 406 - 472
• Polycab DP Isolator (this page) - 40 A to 125 A, MRP Rs 600 - 1,003
• Polycab TP Isolator - 40 A to 125 A, MRP Rs 907 - 1,451
• Polycab FP Isolator - 40 A to 125 A, MRP Rs 1,209 - 2,078

Related products

• Polycab 10kA C-Curve DP MCB - the matching MCB for overload and short-circuit protection
• Polycab DP RCCB 30 mA - earth-leakage protection
• Polycab DP MCB changeover switch - to switch between mains and a second source
• All Polycab switchgear

Frequently asked questions

What is the difference between an isolator and an MCB?

An isolator is a switch: it switches the load and isolates the circuit, but it does not trip on overload or short circuit. An MCB switches and also trips automatically on overload and short circuit.

What does AC-22A mean?

It is the utilisation category under IS/IEC 60947-3 for switching mixed resistive and inductive loads, including moderate overloads - the usual duty of a distribution-board main switch.

Which rating should I choose?

At least the current of the circuit and at least the rating of the MCB or fuse ahead of it. Polycab lists the DP isolator in 40, 63, 80, 100 and 125 A.

Can it be locked off?

Yes - Polycab lists a padlocking provision, so it can be locked in the off position while someone works on the circuit.

What is the MRP of the Polycab DP isolator 63 A?

Rs 735 per piece, item code GMS502P002 - the MRP listed on polycab.com in October 2026, inclusive of taxes. Call +91 9340081159 for the selling price and stock.

Where can I buy the Polycab DP Isolator in Chhattisgarh?

From Jai Enterprises, Bhilai and Raipur, which supplies Polycab switchgear all over Chhattisgarh - Korba, Bilaspur, Raigarh, Jagdalpur, Kanker, Ambikapur and every other district - and across India. Call +91 9340081159 with the rating, quantity and delivery location and we will confirm the price, stock and lead time.

How to order

Supplied by Jai Enterprises, Bhilai and Raipur, to every district of Chhattisgarh and across India. Polycab lists the DP Isolator at MRP Rs 600 - 1,003 per piece (polycab.com, October 2026, inclusive of taxes). Call +91 9340081159 or send an enquiry from this page with the rating, the quantity (pieces) and the delivery location, and we will confirm the selling price, stock and lead time.
