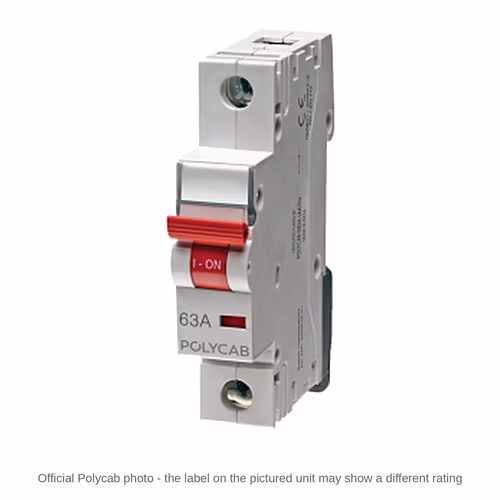

Polycab SP Isolator – 1 Pole Isolator Switch, 40 A to 63 A, AC-22A, IS/IEC 60947-3

The Polycab SP Isolator is a single pole (1 pole) isolator - a manually operated switch that switches a circuit on and off under load and isolates it for safe work - made to IS/IEC 60947-3 with utilisation category AC-22A, for 240/415 V AC, 50 Hz. Polycab lists it in 40 and 63 A at MRP Rs 406 to Rs 472 per piece (polycab.com, October 2026).

Polycab India Limited is India's largest manufacturer of wires and cables, with 27 manufacturing facilities, 4,300+ authorised distributors, 2,00,000+ retailers and an export presence in 84 countries (polycab.com, October 2026). Its switchgear range covers MCBs, RCCBs, RCBOs, isolators, changeover switches, ACCLs and distribution boards. Jai Enterprises supplies Polycab isolators from Bhilai and Raipur all over Chhattisgarh - Bhilai, Raipur, Durg, Korba, Bilaspur, Raigarh, Jagdalpur, Kanker, Ambikapur and every other district - and across India.

Is this the right one for you?

Check these four things before you order:

• You need to switch and isolate one conductor of a single-phase circuit (single pole).
• Overload and short-circuit protection comes from an MCB, RCBO or fuse - an isolator does not trip.
• The rating you need is 40 or 63 A, at least the current of the circuit it switches.
• You want a switch that can be padlocked off during maintenance.

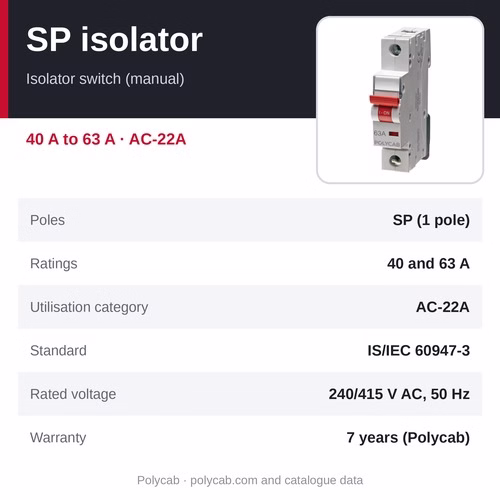

At a glance

• MRP: Rs 406 - 472 per piece (polycab.com, October 2026, inclusive of taxes)
• Product: Polycab SP Isolator
• Type: isolator (switch-disconnector), manual
• Poles: SP - single pole (1 pole)
• Ratings: 40 and 63 A
• Utilisation category: AC-22A - mixed resistive and inductive loads
• Standard: IS/IEC 60947-3
• Rated voltage: 240/415 V AC, 50 Hz
• Item codes: GMS501P001 and GMS501P002
• Warranty: 7 years (as listed by Polycab)

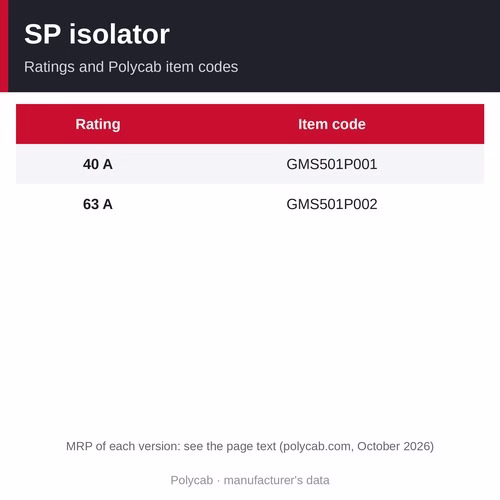

Ratings, item codes and MRP

• 40 A: item code GMS501P001 - MRP Rs 406
• 63 A: item code GMS501P002 - MRP Rs 472
• MRP basis: MRPs as listed on polycab.com, October 2026, inclusive of taxes; the selling price is confirmed on enquiry

Why choose the Polycab SP Isolator

• Real contact position indication
• Large terminals with a safety shutter
• Circuit label holder
• Padlocking provision, to lock it off during maintenance
• Dual-contact breaking mechanism
• Finger-proof IP20 terminals
• Bi-connect terminals on both sides - busbar or cable
• Air-flow channels
• 7-year warranty listed by Polycab
• Bi-stable DIN clip for easy installation
• Line-load reversibility - it can be fed from the top or the bottom
• Polycab item code and MRP for every rating - GMS501P001 and GMS501P002

How to choose and fit it

What an isolator does. It switches the load on and off and, when off, separates the circuit from the supply so that work can be done on it safely. It has no automatic trip.

Protection. Fit it with an MCB, RCBO or fuse for overload and short-circuit protection, and an RCCB where earth-leakage protection is needed.

Rating. Choose a rating at least equal to the current of the circuit, and at least the rating of the protective device ahead of it. Polycab lists 40 and 63 A.

Poles. The single pole version switches one conductor of a single-phase circuit. Polycab makes the isolator in SP, DP, TP and FP.

Mounting. It clips on a standard DIN rail in a distribution board or enclosure.

Where it is used

• switching a single-phase lighting or small-power circuit - an SP isolator does not isolate the neutral; use DP to isolate a single-phase supply
• homes, offices, shops, hospitals and factories

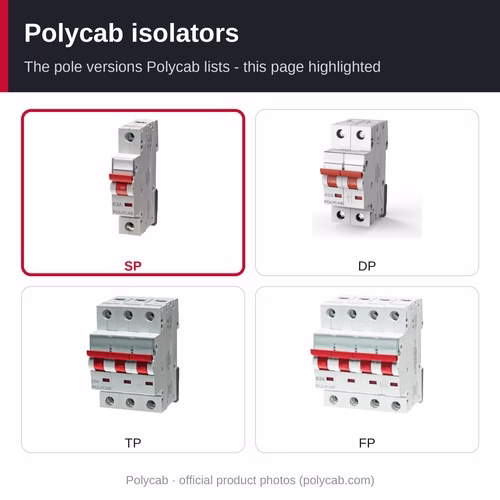

Other Polycab isolators

• Polycab SP Isolator (this page) - 40 A to 63 A, MRP Rs 406 - 472
• Polycab DP Isolator - 40 A to 125 A, MRP Rs 600 - 1,003
• Polycab TP Isolator - 40 A to 125 A, MRP Rs 907 - 1,451
• Polycab FP Isolator - 40 A to 125 A, MRP Rs 1,209 - 2,078

Related products

• Polycab 10kA C-Curve SP MCB - the matching MCB for overload and short-circuit protection
• Polycab DP RCCB 30 mA - earth-leakage protection
• Polycab DP MCB changeover switch - to switch between mains and a second source
• All Polycab switchgear

Frequently asked questions

What is the difference between an isolator and an MCB?

An isolator is a switch: it switches the load and isolates the circuit, but it does not trip on overload or short circuit. An MCB switches and also trips automatically on overload and short circuit.

What does AC-22A mean?

It is the utilisation category under IS/IEC 60947-3 for switching mixed resistive and inductive loads, including moderate overloads - the usual duty of a distribution-board main switch.

Which rating should I choose?

At least the current of the circuit and at least the rating of the MCB or fuse ahead of it. Polycab lists the SP isolator in 40 and 63 A.

Can it be locked off?

Yes - Polycab lists a padlocking provision, so it can be locked in the off position while someone works on the circuit.

What is the MRP of the Polycab SP isolator 63 A?

Rs 472 per piece, item code GMS501P002 - the MRP listed on polycab.com in October 2026, inclusive of taxes. Call +91 9340081159 for the selling price and stock.

Where can I buy the Polycab SP Isolator in Chhattisgarh?

From Jai Enterprises, Bhilai and Raipur, which supplies Polycab switchgear all over Chhattisgarh - Korba, Bilaspur, Raigarh, Jagdalpur, Kanker, Ambikapur and every other district - and across India. Call +91 9340081159 with the rating, quantity and delivery location and we will confirm the price, stock and lead time.
