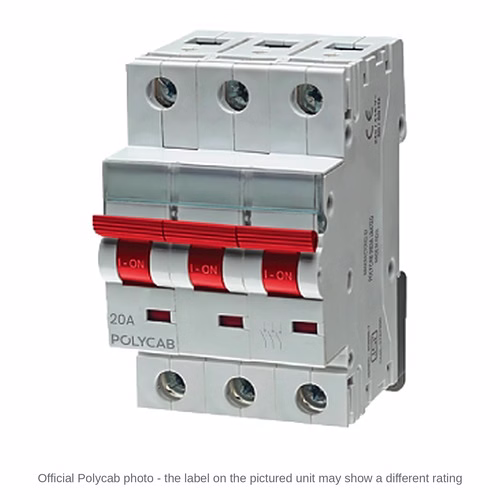

Polycab TP Isolator – 3 Pole Isolator Switch, 40 A to 125 A, AC-22A, IS/IEC 60947-3

The Polycab TP Isolator is a triple pole (3 pole) isolator - a manually operated switch that switches a circuit on and off under load and isolates it for safe work - made to IS/IEC 60947-3 with utilisation category AC-22A, for 240/415 V AC, 50 Hz. Polycab lists it in 40, 63, 80, 100 and 125 A at MRP Rs 907 to Rs 1,451 per piece (polycab.com, October 2026).

Polycab India Limited is India's largest manufacturer of wires and cables, with 27 manufacturing facilities, 4,300+ authorised distributors, 2,00,000+ retailers and an export presence in 84 countries (polycab.com, October 2026). Its switchgear range covers MCBs, RCCBs, RCBOs, isolators, changeover switches, ACCLs and distribution boards. Jai Enterprises supplies Polycab isolators from Bhilai and Raipur all over Chhattisgarh - Bhilai, Raipur, Durg, Korba, Bilaspur, Raigarh, Jagdalpur, Kanker, Ambikapur and every other district - and across India.

Is this the right one for you?

Check these four things before you order:

• You need to switch and isolate a three-phase supply without neutral (triple pole).
• Overload and short-circuit protection comes from an MCB, RCBO or fuse - an isolator does not trip.
• The rating you need is 40, 63, 80, 100 or 125 A, at least the current of the circuit it switches.
• You want a switch that can be padlocked off during maintenance.

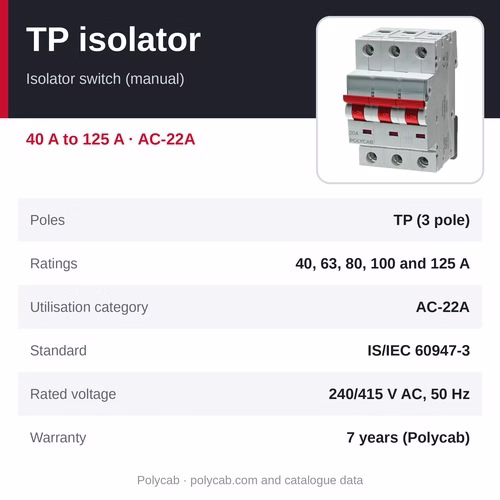

At a glance

• MRP: Rs 907 - 1,451 per piece (polycab.com, October 2026, inclusive of taxes)
• Product: Polycab TP Isolator
• Type: isolator (switch-disconnector), manual
• Poles: TP - triple pole (3 pole)
• Ratings: 40, 63, 80, 100 and 125 A
• Utilisation category: AC-22A - mixed resistive and inductive loads
• Standard: IS/IEC 60947-3
• Rated voltage: 240/415 V AC, 50 Hz
• Item codes: GMS503P001 to GMS503P005
• Warranty: 7 years (as listed by Polycab)

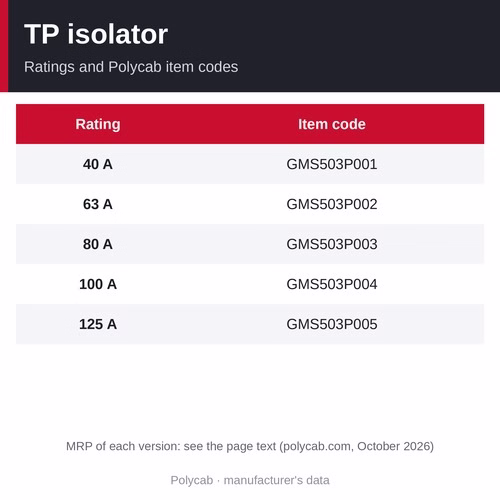

Ratings, item codes and MRP

• 40 A: item code GMS503P001 - MRP Rs 907
• 63 A: item code GMS503P002 - MRP Rs 1,108
• 80 A: item code GMS503P003 - MRP Rs 1,390
• 100 A: item code GMS503P004 - MRP Rs 1,451
• 125 A: item code GMS503P005 - MRP Rs 1,451
• MRP basis: MRPs as listed on polycab.com, October 2026, inclusive of taxes; the selling price is confirmed on enquiry

Why choose the Polycab TP Isolator

• Real contact position indication
• Large terminals with a safety shutter
• Circuit label holder
• Padlocking provision, to lock it off during maintenance
• Dual-contact breaking mechanism
• Finger-proof IP20 terminals
• Bi-connect terminals on both sides - busbar or cable
• Air-flow channels
• 7-year warranty listed by Polycab
• Bi-stable DIN clip for easy installation
• Line-load reversibility - it can be fed from the top or the bottom
• Polycab item code and MRP for every rating - GMS503P001 to GMS503P005

How to choose and fit it

What an isolator does. It switches the load on and off and, when off, separates the circuit from the supply so that work can be done on it safely. It has no automatic trip.

Protection. Fit it with an MCB, RCBO or fuse for overload and short-circuit protection, and an RCCB where earth-leakage protection is needed.

Rating. Choose a rating at least equal to the current of the circuit, and at least the rating of the protective device ahead of it. Polycab lists 40, 63, 80, 100 and 125 A.

Poles. The triple pole version switches a three-phase supply without neutral. Polycab makes the isolator in SP, DP, TP and FP.

Mounting. It clips on a standard DIN rail in a distribution board or enclosure.

Where it is used

• three-phase motors, pumps and machines without neutral - local isolation for maintenance
• homes, offices, shops, hospitals and factories

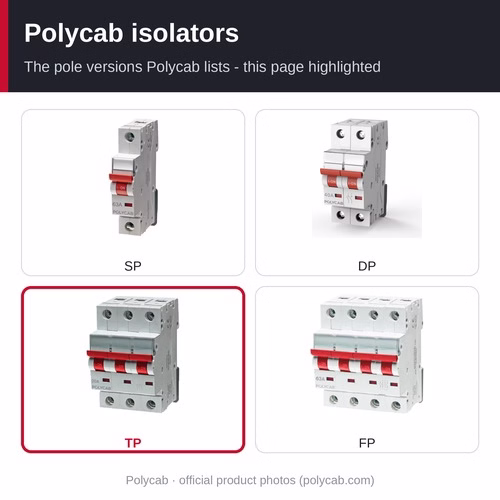

Other Polycab isolators

• Polycab SP Isolator - 40 A to 63 A, MRP Rs 406 - 472
• Polycab DP Isolator - 40 A to 125 A, MRP Rs 600 - 1,003
• Polycab TP Isolator (this page) - 40 A to 125 A, MRP Rs 907 - 1,451
• Polycab FP Isolator - 40 A to 125 A, MRP Rs 1,209 - 2,078

Related products

• Polycab 10kA C-Curve TP MCB - the matching MCB for overload and short-circuit protection
• Polycab FP RCCB 30 mA - earth-leakage protection
• Polycab FP MCB changeover switch - to switch between mains and a second source
• All Polycab switchgear

Frequently asked questions

What is the difference between an isolator and an MCB?

An isolator is a switch: it switches the load and isolates the circuit, but it does not trip on overload or short circuit. An MCB switches and also trips automatically on overload and short circuit.

What does AC-22A mean?

It is the utilisation category under IS/IEC 60947-3 for switching mixed resistive and inductive loads, including moderate overloads - the usual duty of a distribution-board main switch.

Which rating should I choose?

At least the current of the circuit and at least the rating of the MCB or fuse ahead of it. Polycab lists the TP isolator in 40, 63, 80, 100 and 125 A.

Can it be locked off?

Yes - Polycab lists a padlocking provision, so it can be locked in the off position while someone works on the circuit.

What is the MRP of the Polycab TP isolator 63 A?

Rs 1,108 per piece, item code GMS503P002 - the MRP listed on polycab.com in October 2026, inclusive of taxes. Call +91 9340081159 for the selling price and stock.

Where can I buy the Polycab TP Isolator in Chhattisgarh?

From Jai Enterprises, Bhilai and Raipur, which supplies Polycab switchgear all over Chhattisgarh - Korba, Bilaspur, Raigarh, Jagdalpur, Kanker, Ambikapur and every other district - and across India. Call +91 9340081159 with the rating, quantity and delivery location and we will confirm the price, stock and lead time.

How to order

Supplied by Jai Enterprises, Bhilai and Raipur, to every district of Chhattisgarh and across India. Polycab lists the TP Isolator at MRP Rs 907 - 1,451 per piece (polycab.com, October 2026, inclusive of taxes). Call +91 9340081159 or send an enquiry from this page with the rating, the quantity (pieces) and the delivery location, and we will confirm the selling price, stock and lead time.
