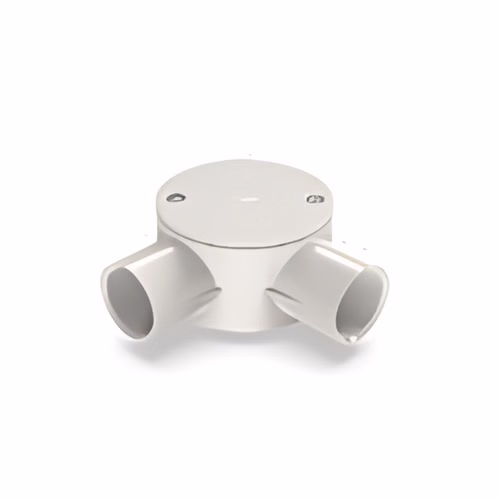

Polycab PVC Circular Box Angle (2 Way) – Junction Box for 20 and 25 mm Conduit, IS 3419

Polycab PVC Circular Box - Angle (2 Way) is a round PVC junction box with two entries at right angles and a screw-on lid, for 20 and 25 mm conduit. It is used at a point where the run turns through 90 degrees and you also want a junction or light point - the corner of a room or of a ceiling run.

Polycab India Limited is India's largest manufacturer of wires and cables, with 27 manufacturing facilities, 4,300+ authorised distributors, 2,00,000+ retailers and an export presence in 84 countries (polycab.com, October 2026). Polycab is ISO 9001:2015 certified and makes its conduits to IS 9537 (Part 3) and its conduit fittings to IS 3419, from what its catalogue calls "the highest grade of waterproof and fire-resistant polymers". Jai Enterprises supplies Polycab conduit fittings from Bhilai and Raipur all over Chhattisgarh - Bhilai, Raipur, Durg, Korba, Bilaspur, Raigarh, Jagdalpur, Kanker, Ambikapur and every other district - and across India; price on request.

Is this the right one for you?

Check these three things before you order:

• The run turns through 90 degrees at this point.
• Your conduit is 20 or 25 mm outside diameter - the fitting size is the conduit size.
• Fittings to IS 3419 are wanted or specified.

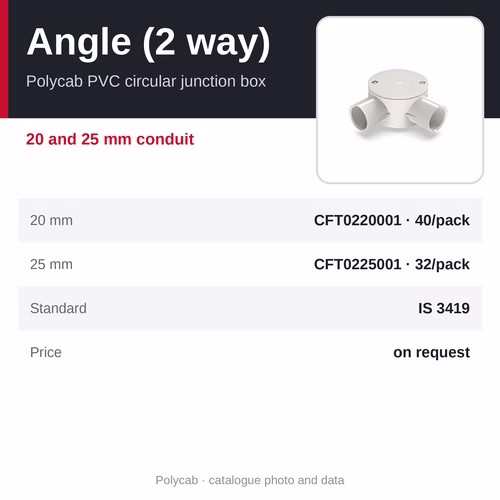

At a glance

• Price: on request - call +91 9340081159
• Product: Polycab PVC Circular Box - Angle (2 Way)
• Type: a round PVC junction box with two entries at right angles and a screw-on lid
• Sizes: 20 and 25 mm conduit
• Product codes: CFT0220001, CFT0225001
• Packs: 20 mm - 40 per pack, 640 per transport pack; 25 mm - 32 per pack, 448 per transport pack
• Standard: IS 3419
• Material: PVC (Polycab uPVC conduit fittings range)

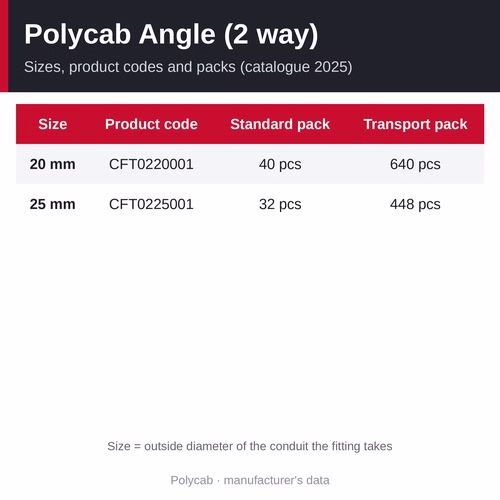

Sizes, codes and packs

• 20 mm: code CFT0220001; 40 pcs per standard pack, 640 pcs per transport pack
• 25 mm: code CFT0225001; 32 pcs per standard pack, 448 pcs per transport pack
• Pack terms: standard pack = pieces per pack; transport pack = pieces per transport pack (catalogue figures)
• Source: Polycab B2B all-products catalogue (2025), uPVC conduits and fittings section

Why choose the Polycab PVC Circular Box - Angle (2 Way)

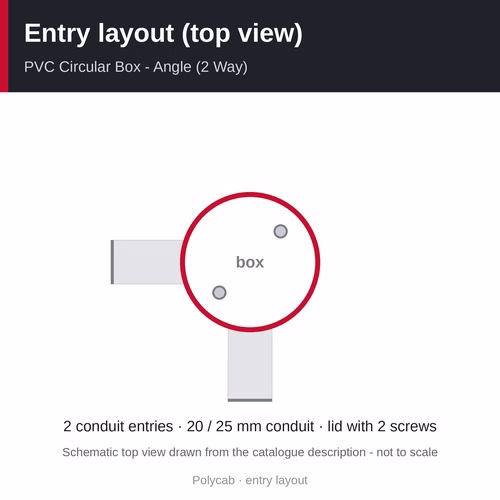

• Two entries at right angles - the right layout for a point where the run turns through 90 degrees and you also want a junction or light point
• Screw-on round lid - comes off for wiring, jointing and inspection; spare lids are listed separately
• Made to IS 3419 - the Indian standard for fittings for rigid non-metallic conduits
• Sized for 20 and 25 mm conduit - the entries take Polycab conduit of the same outside diameter
• Part of the full Polycab conduit system - pipes to IS 9537 Part 3 and matching boxes, bends, tees, elbows, couplers and saddles

Installation notes

Fix the box first, then cut the conduit to length and push it fully into the entry; in concealed work the joint is usually made permanent with PVC solvent cement.

Set concealed boxes so the lid sits flush with the finished plaster or ceiling - joints must stay accessible, so never plaster over a lid.

Make joints inside the box with proper connectors, keep the earth continuous, and close the lid once the wiring is tested.

Where it is used

• Light points at the corner of a ceiling run
• Corners of rooms and corridors
• Changes of direction in surface conduit runs
• Concealed and surface conduit wiring in homes, offices and shops

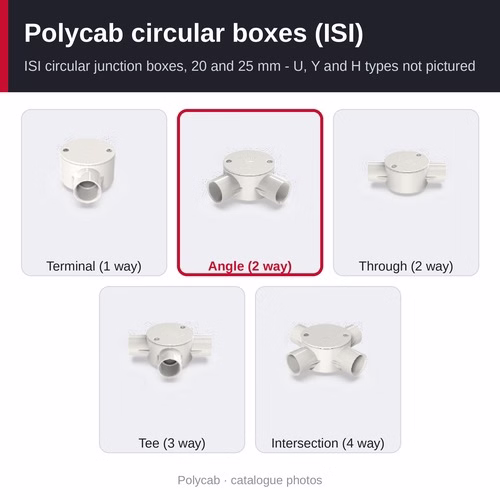

Polycab circular boxes (ISI)

• Polycab PVC Circular Box - Terminal (1 Way) - 20 and 25 mm conduit
• Polycab PVC Circular Box - Angle (2 Way) (this page) - 20 and 25 mm conduit
• Polycab PVC Circular Box - Through (2 Way) - 20 and 25 mm conduit
• Polycab PVC Circular Box - Tee (3 Way) - 20 and 25 mm conduit
• Polycab PVC Circular Box - Intersection (4 Way) - 20 and 25 mm conduit
• Polycab PVC Circular Box - 'U' Type (2 Way) - 20 and 25 mm conduit
• Polycab PVC Circular Box - 'Y' Type (3 Way) - 20 and 25 mm conduit
• Polycab PVC Circular Box - 'H' Type (4 Way) - 20 and 25 mm conduit

Related products

• Polycab deep circular boxes, Polycab fan boxes and lids, Polycab couplers, reducers and saddles, Polycab bends, tees and elbows, Polycab non-ISI PP circular boxes and lid - the rest of the Polycab conduit fittings
• Polycab MMS FRLS uPVC conduit pipe and HMS FRLS conduit pipe - the pipes these fittings join
• All conduit fittings and all uPVC conduits

Frequently asked questions

Where is the angle (2 way) circular box used?

At a point where the run turns through 90 degrees and you also want a junction or light point - the corner of a room or of a ceiling run. For a straight run use a through box; for the end of a run, a terminal box.

Is there a non-ISI version of this box, and what is the difference?

Yes. This is the ISI version: rigid PVC, made by Polycab to IS 3419 (the Indian standard for fittings for rigid non-metallic conduits), and it can be joined to PVC conduit with PVC solvent cement. Polycab also makes a non-ISI polypropylene (PP) angle (2 way) box with the same entry layout, sizes (20 and 25 mm) and packs; it is not ISI marked and is a push fit, because PVC solvent cement does not bond polypropylene. Choose ISI where the specification, the consultant or the authority asks for ISI-marked fittings; the non-ISI box suits jobs where that is not required. If you wish, we will quote both so you can compare before you decide.

Which sizes and codes are available for the angle (2 way)?

20 mm - CFT0220001; 25 mm - CFT0225001.

How is it packed?

20 mm - 40 per pack, 640 per transport pack; 25 mm - 32 per pack, 448 per transport pack. Tell us the number of pieces or packs you need.

Where can I buy Polycab PVC Circular Box - Angle (2 Way) in Chhattisgarh?

From Jai Enterprises, Bhilai and Raipur, which supplies Polycab conduits and fittings across Chhattisgarh - Korba, Bilaspur, Raigarh, Jagdalpur, Kanker, Ambikapur and every other district - and across India. Call +91 9340081159 with the size, quantity and delivery location and we will confirm the price, availability and lead time.

How to order

Supplied by Jai Enterprises, Bhilai and Raipur, to every district of Chhattisgarh and across India. To request a price for Polycab PVC Circular Box - Angle (2 Way), call +91 9340081159 or send an enquiry from this page with the size, the quantity (pieces or packs) and the delivery location, and we will confirm the price, stock and lead time.
