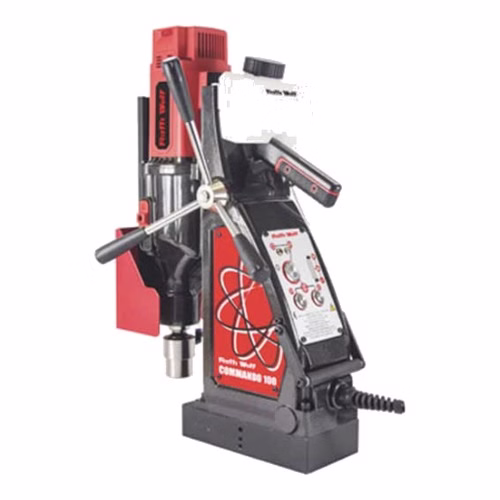

Ralli Wolf COMMANDO 100 Magnetic Core Drill – 100 mm Core, 2000 W, MT3, M30 Tapping

The Ralli Wolf COMMANDO 100 cuts cores up to 100 mm diameter and 100 mm deep — through thick plate and heavy flanges — and takes taper-shank twist drills up to 32 mm and taps up to M30 on its MT3 spindle. A 2000 W motor with four speeds (45–700 rpm), a 264 mm stroke and a 20000 N magnet make it a production machine for bridges, towers and heavy fabrication. It weighs 24.8 kg and comes with the standard Commando accessory kit.

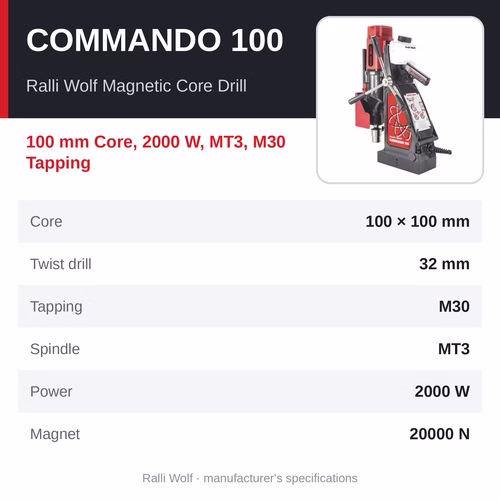

At a glance

• Core: 100 × 100 mm
• Twist drill: 32 mm
• Tapping: M30
• Spindle: MT3
• Power: 2000 W
• Magnet: 20000 N

Why choose the COMMANDO 100

• Production-oriented, accurate core drilling in metal
• Taper-shank twist drilling up to 32 mm and tapping up to M30
• Four-speed gearbox
• Ralli Wolf — an Indian power-tool maker with more than 60 years in the trade. Ralli Wolf Industries Ltd. began in technical collaboration with Wolf of the UK, makes its tools at an ISO 9001:2015 certified plant in MIDC Ahmednagar, Maharashtra, and backs them with more than 30 service locations across India.

Specifications

• Model: COMMANDO 100
• Product: Ralli Wolf Magnetic Core Drill
• Rated voltage: 230 V
• Rated power: 2000 W
• Maximum core drill capacity: 100 mm diameter × 100 mm deep
• Maximum twist drill: 32 mm
• Speed selection: 4 speeds
• No-load speed: 45–700 rpm
• Tapping capacity: M30
• Spindle: MT3
• Stroke: 264 mm
• Magnetic adhesion: 20000 N
• Net weight: 24.8 kg
• In the box: 2 Allen keys, coolant bottle, safety belt, drift, 13 mm drill chuck with key, drill chuck holder
• Brand: Ralli Wolf (Ralli Wolf Industries Ltd., India)

How a magnetic core drill works

The electromagnetic base locks the drill onto steel, so holes can be drilled on beams, columns and plates where they lie — horizontally, vertically or overhead. Annular (core / broach) cutters remove only a ring of metal, so they cut large holes quickly and accurately with less power than a twist drill. Use the safety strap, feed coolant to the cutter, and work on steel at least as thick as the maker recommends for full magnetic hold.

Where it is used

• Steel structures, bridges and towers
• Fabrication of beams, columns, base plates and flanges
• Railway, shipbuilding and plant maintenance
• Holes on site where the work cannot be moved

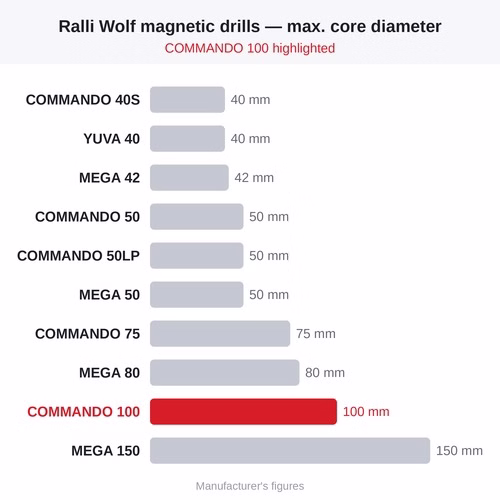

Which Ralli Wolf magnetic drill is right for you?

• YUVA 40 — 40 mm Core, 1150 W, 10000 N Magnet
• MEGA 42 — 42 mm Core, 1400 W, Variable Speed
• MEGA 50 — 50 mm Core, 23 mm Twist, MT2, 1400 W
• COMMANDO 40S — 40 mm Core, 1100 W, 6 Speeds, 13.7 kg
• COMMANDO 50 — 50 mm Core, 1500 W, MT2, 6 Speeds
• COMMANDO 50LP — 50 mm Core, Low Profile, 179 mm High
• COMMANDO 75 — 75 mm Core, 1800 W, MT3, M24 Tapping
• COMMANDO 100 (this page) — 100 mm Core, 2000 W, MT3, M30 Tapping
• MEGA 80 — 80 mm Core, 1950 W, MT3, M24 Tapping
• MEGA 150 — 150 mm Core, 3080 W, MT4, M50 Tapping
• See all Ralli Wolf magnetic core drills

Related products

• Ralli Wolf industrial drills
• Ralli Wolf chop saws
• Ralli Wolf die, straight and bench grinders

Frequently asked questions

Which should I choose — the COMMANDO 100 or the COMMANDO 75?

Choose the COMMANDO 100 for 100 mm cores and M30 tapping; the Ralli Wolf COMMANDO 75 (75 mm cores, M24, 22.8 kg) is a little lighter.

What cutters does the COMMANDO 100 take?

Annular (core) cutters up to 100 mm diameter × 100 mm deep, twist drills up to 32 mm and taps up to M30. Spindle / adaptor: MT3.

Can the COMMANDO 100 drill on vertical or overhead steel?

Yes — the electromagnetic base holds it on beams, columns and plates in any position. Always fit the safety strap, and drill on clean, flat steel thick enough for full magnetic hold.

What comes with the COMMANDO 100?

In the box: 2 Allen keys, coolant bottle, safety belt, drift, 13 mm drill chuck with key, drill chuck holder.

What is the price of the Ralli Wolf COMMANDO 100, and where can I buy it?

Prices depend on quantity and current Ralli Wolf pricing, so they are quoted on request. Jai Enterprises supplies Ralli Wolf tools from Bhilai and Raipur, Chhattisgarh, to sites across India — call +91 9340081159 or send an enquiry from this page with the quantity and delivery location.

How to order

Supplied by Jai Enterprises, despatched from Bhilai and Raipur, Chhattisgarh, to sites across India. To request a price, call +91 9340081159 or send an enquiry from this page with your quantity and site details, and we will confirm availability, lead time and the right model for the job.
