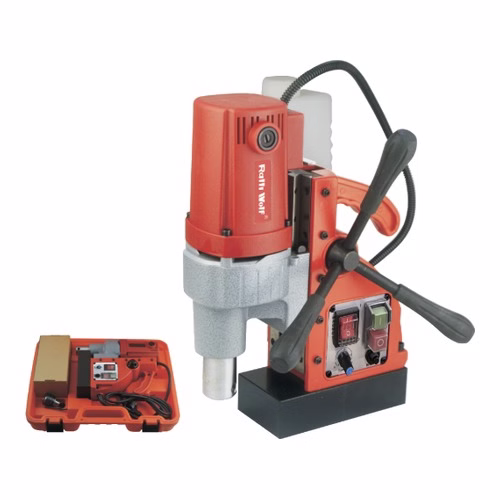

Ralli Wolf MEGA 42 Magnetic Core Drill – 42 mm Core, 1400 W, Variable Speed

The Ralli Wolf MEGA 42 is a variable-speed magnetic core drill for holes up to 42 mm diameter and 50 mm deep, plus twist drilling up to 13 mm. Its 1400 W motor gives 100–700 rpm, so the speed can be matched to the cutter size and material, and a 12000 N magnet holds it on beams and plates. A multi-purpose machine for core and twist drilling in fabrication, it weighs 13 kg.

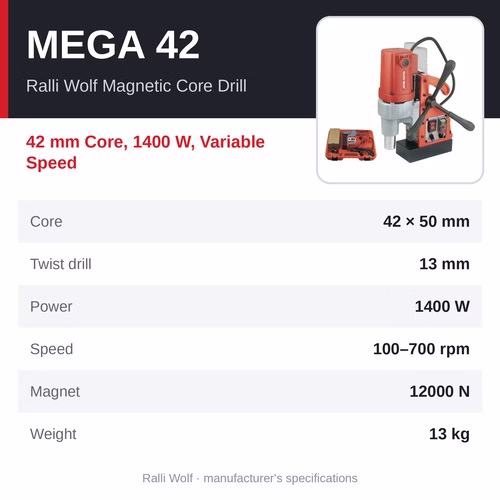

At a glance

• Core: 42 × 50 mm
• Twist drill: 13 mm
• Power: 1400 W
• Speed: 100–700 rpm
• Magnet: 12000 N
• Weight: 13 kg

Why choose the MEGA 42

• Variable speed
• Core drilling and twist drilling
• Multi-purpose use
• Ralli Wolf — an Indian power-tool maker with more than 60 years in the trade. Ralli Wolf Industries Ltd. began in technical collaboration with Wolf of the UK, makes its tools at an ISO 9001:2015 certified plant in MIDC Ahmednagar, Maharashtra, and backs them with more than 30 service locations across India.

Specifications

• Model: MEGA 42
• Product: Ralli Wolf Magnetic Core Drill
• Rated voltage: 220 V, 50 Hz
• Rated power: 1400 W
• Maximum core drill capacity: 42 mm diameter × 50 mm deep
• Maximum twist drill: 13 mm
• No-load speed: 100–700 rpm (variable)
• Magnetic adhesion: 12000 N
• Full-load current: 8 A
• Net weight: 13 kg
• Brand: Ralli Wolf (Ralli Wolf Industries Ltd., India)

How a magnetic core drill works

The electromagnetic base locks the drill onto steel, so holes can be drilled on beams, columns and plates where they lie — horizontally, vertically or overhead. Annular (core / broach) cutters remove only a ring of metal, so they cut large holes quickly and accurately with less power than a twist drill. Use the safety strap, feed coolant to the cutter, and work on steel at least as thick as the maker recommends for full magnetic hold.

Where it is used

• Steel structures, bridges and towers
• Fabrication of beams, columns, base plates and flanges
• Railway, shipbuilding and plant maintenance
• Holes on site where the work cannot be moved

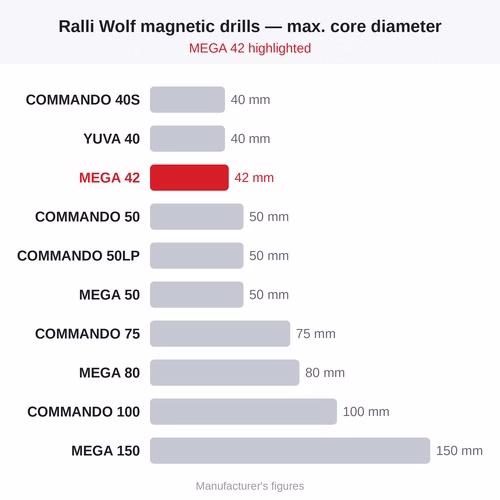

Which Ralli Wolf magnetic drill is right for you?

• YUVA 40 — 40 mm Core, 1150 W, 10000 N Magnet
• MEGA 42 (this page) — 42 mm Core, 1400 W, Variable Speed
• MEGA 50 — 50 mm Core, 23 mm Twist, MT2, 1400 W
• COMMANDO 40S — 40 mm Core, 1100 W, 6 Speeds, 13.7 kg
• COMMANDO 50 — 50 mm Core, 1500 W, MT2, 6 Speeds
• COMMANDO 50LP — 50 mm Core, Low Profile, 179 mm High
• COMMANDO 75 — 75 mm Core, 1800 W, MT3, M24 Tapping
• COMMANDO 100 — 100 mm Core, 2000 W, MT3, M30 Tapping
• MEGA 80 — 80 mm Core, 1950 W, MT3, M24 Tapping
• MEGA 150 — 150 mm Core, 3080 W, MT4, M50 Tapping
• See all Ralli Wolf magnetic core drills

Related products

• Ralli Wolf industrial drills
• Ralli Wolf chop saws
• Ralli Wolf die, straight and bench grinders

Frequently asked questions

Which should I choose — the MEGA 42 or the MEGA 50?

The Ralli Wolf MEGA 50 goes to 50 × 50 mm cores and 23 mm taper-shank twist drills (MT2) with a 16500 N magnet; the MEGA 42 is lighter (13 kg).

What cutters does the MEGA 42 take?

Annular (core) cutters up to 42 mm diameter × 50 mm deep, twist drills up to 13 mm.

Can the MEGA 42 drill on vertical or overhead steel?

Yes — the electromagnetic base holds it on beams, columns and plates in any position. Always fit the safety strap, and drill on clean, flat steel thick enough for full magnetic hold.

What is the price of the Ralli Wolf MEGA 42, and where can I buy it?

Prices depend on quantity and current Ralli Wolf pricing, so they are quoted on request. Jai Enterprises supplies Ralli Wolf tools from Bhilai and Raipur, Chhattisgarh, to sites across India — call +91 9340081159 or send an enquiry from this page with the quantity and delivery location.

How to order

Supplied by Jai Enterprises, despatched from Bhilai and Raipur, Chhattisgarh, to sites across India. To request a price, call +91 9340081159 or send an enquiry from this page with your quantity and site details, and we will confirm availability, lead time and the right model for the job.
