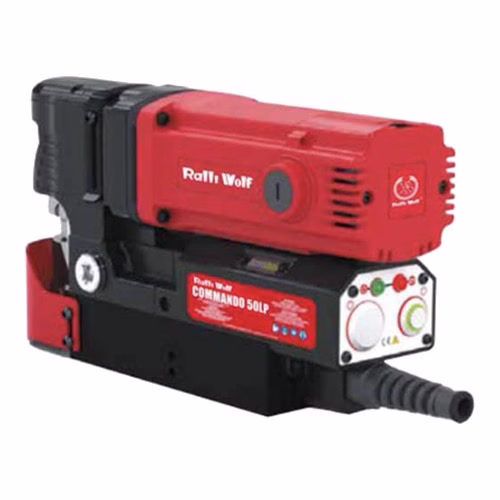

Ralli Wolf COMMANDO 50LP Low-Profile Magnetic Drill – 50 mm Core, Low Profile, 179 mm High
Low-profile magnetic drill only 179 mm high: 50 × 50 mm cores, 1200 W, 6 speeds, 10000 N magnet — for tight spaces; 11 kg.
Request price
The Ralli Wolf COMMANDO 50LP is a low-profile magnetic drill — just 179 mm high — for drilling where an upright mag drill cannot fit: between flanges, inside beams and under obstructions. It still cuts cores up to 50 mm diameter and 50 mm deep and countersinks up to 30 mm. A 1200 W motor with a variable, six-speed setting (250–500 rpm), a 192 × 82 mm, 10000 N magnet, a fixed guard, magnet detection and a safety strap complete it. It weighs 11 kg.

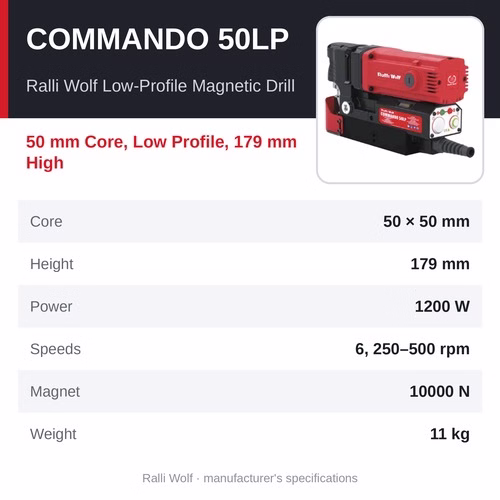

At a glance
- Core: 50 × 50 mm
- Height: 179 mm
- Power: 1200 W
- Speeds: 6, 250–500 rpm
- Magnet: 10000 N
- Weight: 11 kg
Why choose the COMMANDO 50LP
- Low-profile body for tight spaces between flanges and inside beams
- Cutter diameter and depth of cut up to 50 mm
- 1200 W motor with variable, 6-speed setting
- Safety: fixed guard, magnet detection and safety strap
- Ralli Wolf — an Indian power-tool maker with more than 60 years in the trade. Ralli Wolf Industries Ltd. began in technical collaboration with Wolf of the UK, makes its tools at an ISO 9001:2015 certified plant in MIDC Ahmednagar, Maharashtra, and backs them with more than 30 service locations across India.
Specifications
- Model: COMMANDO 50LP
- Product: Ralli Wolf Low-Profile Magnetic Drill
- Rated voltage: 230 V
- Rated power: 1200 W
- Magnet size: 192 × 82 mm
- Maximum core drill capacity: 50 mm diameter × 50 mm deep
- Speed selection: 6 speeds
- No-load speed: 250–500 rpm
- Adaptor size: 19.05 mm (3/4-inch), self
- Magnetic adhesion: 10000 N
- Height: 179 mm
- Length × width: 334 × 100 mm
- Stroke: 62 mm
- Countersink: up to 30 mm
- Net weight: 11 kg
- Brand: Ralli Wolf (Ralli Wolf Industries Ltd., India)
How a magnetic core drill works
The electromagnetic base locks the drill onto steel, so holes can be drilled on beams, columns and plates where they lie — horizontally, vertically or overhead. Annular (core / broach) cutters remove only a ring of metal, so they cut large holes quickly and accurately with less power than a twist drill. Use the safety strap, feed coolant to the cutter, and work on steel at least as thick as the maker recommends for full magnetic hold.
Where it is used
- Steel structures, bridges and towers
- Fabrication of beams, columns, base plates and flanges
- Railway, shipbuilding and plant maintenance
- Holes on site where the work cannot be moved

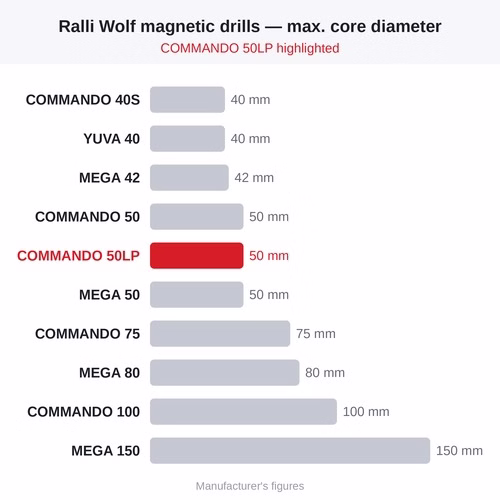

Which Ralli Wolf magnetic drill is right for you?
- YUVA 40 — 40 mm Core, 1150 W, 10000 N Magnet
- MEGA 42 — 42 mm Core, 1400 W, Variable Speed
- MEGA 50 — 50 mm Core, 23 mm Twist, MT2, 1400 W
- COMMANDO 40S — 40 mm Core, 1100 W, 6 Speeds, 13.7 kg
- COMMANDO 50 — 50 mm Core, 1500 W, MT2, 6 Speeds
- COMMANDO 50LP (this page) — 50 mm Core, Low Profile, 179 mm High
- COMMANDO 75 — 75 mm Core, 1800 W, MT3, M24 Tapping
- COMMANDO 100 — 100 mm Core, 2000 W, MT3, M30 Tapping
- MEGA 80 — 80 mm Core, 1950 W, MT3, M24 Tapping
- MEGA 150 — 150 mm Core, 3080 W, MT4, M50 Tapping
- See all Ralli Wolf magnetic core drills
Related products
Frequently asked questions
Which should I choose — the COMMANDO 50LP or the COMMANDO 50?
Choose the COMMANDO 50LP when height is the limit — it stands only 179 mm high. The upright Ralli Wolf COMMANDO 50 adds MT2 twist drilling to 23 mm and a 166 mm stroke.
What cutters does the COMMANDO 50LP take?
Annular (core) cutters up to 50 mm diameter × 50 mm deep. Spindle / adaptor: 19.05 mm (3/4-inch), self.
Can the COMMANDO 50LP drill on vertical or overhead steel?
Yes — the electromagnetic base holds it on beams, columns and plates in any position. Always fit the safety strap, and drill on clean, flat steel thick enough for full magnetic hold.
What is the price of the Ralli Wolf COMMANDO 50LP, and where can I buy it?
Prices depend on quantity and current Ralli Wolf pricing, so they are quoted on request. Jai Enterprises supplies Ralli Wolf tools from Bhilai and Raipur, Chhattisgarh, to sites across India — call +91 9340081159 or send an enquiry from this page with the quantity and delivery location.
