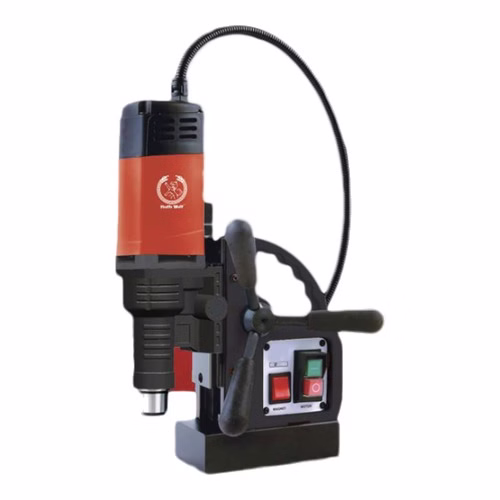

Ralli Wolf YUVA 40 Magnetic Core Drill – 40 mm Core, 1150 W, 10000 N Magnet

The Ralli Wolf YUVA 40 is a compact magnetic core drill — the lightest in the range at 10 kg — for holes up to 40 mm diameter and 50 mm deep with broach (core) cutters from 12 to 40 mm on a 19 mm spindle. A 1150 W motor at 750 rpm and a 10000 N magnet suit fabrication shops and site work on beams, plates and brackets, and with the supplied chuck and adaptor it twist-drills up to 13 mm. It comes with Allen keys (2.5 and 4 mm), a drill chuck, a chuck adaptor and a safety belt.

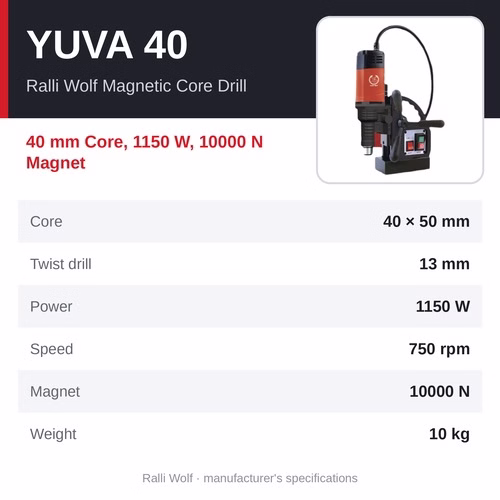

At a glance

• Core: 40 × 50 mm
• Twist drill: 13 mm
• Power: 1150 W
• Speed: 750 rpm
• Magnet: 10000 N
• Weight: 10 kg

Why choose the YUVA 40

• Takes broach (core) cutters from 12 to 40 mm
• Twist drilling up to 13 mm with the supplied chuck and adaptor
• Ralli Wolf — an Indian power-tool maker with more than 60 years in the trade. Ralli Wolf Industries Ltd. began in technical collaboration with Wolf of the UK, makes its tools at an ISO 9001:2015 certified plant in MIDC Ahmednagar, Maharashtra, and backs them with more than 30 service locations across India.

Specifications

• Model: YUVA 40
• Product: Ralli Wolf Magnetic Core Drill
• Rated voltage: 220 V, 50 Hz
• Rated power: 1150 W
• Maximum core drill capacity: 40 mm diameter × 50 mm deep
• Maximum twist drill: up to 13 mm
• No-load speed: 750 rpm
• Magnetic adhesion: 10000 N
• Spindle: 19 mm
• Net weight: 10 kg
• In the box: Allen keys (2.5 and 4 mm), drill chuck adaptor, drill chuck, safety belt
• Brand: Ralli Wolf (Ralli Wolf Industries Ltd., India)

How a magnetic core drill works

The electromagnetic base locks the drill onto steel, so holes can be drilled on beams, columns and plates where they lie — horizontally, vertically or overhead. Annular (core / broach) cutters remove only a ring of metal, so they cut large holes quickly and accurately with less power than a twist drill. Use the safety strap, feed coolant to the cutter, and work on steel at least as thick as the maker recommends for full magnetic hold.

Where it is used

• Steel structures, bridges and towers
• Fabrication of beams, columns, base plates and flanges
• Railway, shipbuilding and plant maintenance
• Holes on site where the work cannot be moved

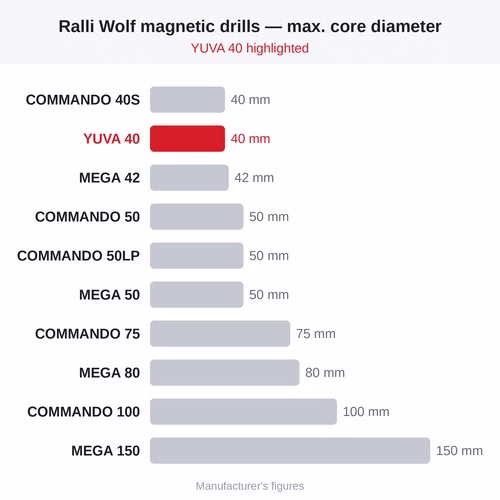

Which Ralli Wolf magnetic drill is right for you?

• YUVA 40 (this page) — 40 mm Core, 1150 W, 10000 N Magnet
• MEGA 42 — 42 mm Core, 1400 W, Variable Speed
• MEGA 50 — 50 mm Core, 23 mm Twist, MT2, 1400 W
• COMMANDO 40S — 40 mm Core, 1100 W, 6 Speeds, 13.7 kg
• COMMANDO 50 — 50 mm Core, 1500 W, MT2, 6 Speeds
• COMMANDO 50LP — 50 mm Core, Low Profile, 179 mm High
• COMMANDO 75 — 75 mm Core, 1800 W, MT3, M24 Tapping
• COMMANDO 100 — 100 mm Core, 2000 W, MT3, M30 Tapping
• MEGA 80 — 80 mm Core, 1950 W, MT3, M24 Tapping
• MEGA 150 — 150 mm Core, 3080 W, MT4, M50 Tapping
• See all Ralli Wolf magnetic core drills

Related products

• Ralli Wolf industrial drills
• Ralli Wolf chop saws
• Ralli Wolf die, straight and bench grinders

Frequently asked questions

Which should I choose — the YUVA 40 or the COMMANDO 40S?

Both take 40 × 50 mm cutters. The Ralli Wolf COMMANDO 40S has six speeds (270–610 rpm) to match the speed to the cutter size; the YUVA 40 is lighter (10 kg) with a single 750 rpm speed.

What cutters does the YUVA 40 take?

Annular (core) cutters up to 40 mm diameter × 50 mm deep, twist drills up to up to 13 mm. Spindle / adaptor: 19 mm.

Can the YUVA 40 drill on vertical or overhead steel?

Yes — the electromagnetic base holds it on beams, columns and plates in any position. Always fit the safety strap, and drill on clean, flat steel thick enough for full magnetic hold.

What comes with the YUVA 40?

In the box: Allen keys (2.5 and 4 mm), drill chuck adaptor, drill chuck, safety belt.

What is the price of the Ralli Wolf YUVA 40, and where can I buy it?

Prices depend on quantity and current Ralli Wolf pricing, so they are quoted on request. Jai Enterprises supplies Ralli Wolf tools from Bhilai and Raipur, Chhattisgarh, to sites across India — call +91 9340081159 or send an enquiry from this page with the quantity and delivery location.
