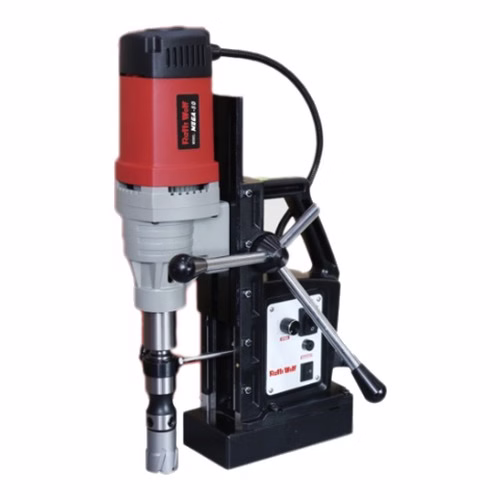

Ralli Wolf MEGA 80 Magnetic Core Drill – 80 mm Core, 1950 W, MT3, M24 Tapping

The Ralli Wolf MEGA 80 packs a big capacity into an 18 kg machine: cores up to 80 mm diameter and 80 mm deep, taper-shank twist drills up to 28 mm and tapping up to M24, on an MT3 spindle. Its 1950 W motor runs at 100–510 rpm and a 16700 N magnet holds it on structural steel. Its stroke is 220 mm.

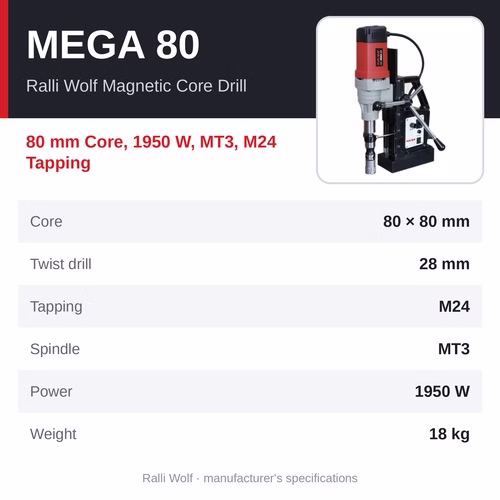

At a glance

• Core: 80 × 80 mm
• Twist drill: 28 mm
• Tapping: M24
• Spindle: MT3
• Power: 1950 W
• Weight: 18 kg

Why choose the MEGA 80

• 80 mm core capacity at 18 kg
• MT3 spindle for taper-shank drills and tapping
• Ralli Wolf — an Indian power-tool maker with more than 60 years in the trade. Ralli Wolf Industries Ltd. began in technical collaboration with Wolf of the UK, makes its tools at an ISO 9001:2015 certified plant in MIDC Ahmednagar, Maharashtra, and backs them with more than 30 service locations across India.

Specifications

• Model: MEGA 80
• Product: Ralli Wolf Magnetic Core Drill
• Rated voltage: 230 V, 50 Hz
• Rated power: 1950 W
• Capacity: 80 mm diameter × 80 mm deep
• Maximum twist drill: 28 mm
• Morse taper: MT3
• No-load speed: 100–510 rpm
• Tapping capacity: M24
• Magnetic adhesion: 16700 N
• Stroke: 220 mm
• Net weight: 18 kg
• Brand: Ralli Wolf (Ralli Wolf Industries Ltd., India)

How a magnetic core drill works

The electromagnetic base locks the drill onto steel, so holes can be drilled on beams, columns and plates where they lie — horizontally, vertically or overhead. Annular (core / broach) cutters remove only a ring of metal, so they cut large holes quickly and accurately with less power than a twist drill. Use the safety strap, feed coolant to the cutter, and work on steel at least as thick as the maker recommends for full magnetic hold.

Where it is used

• Steel structures, bridges and towers
• Fabrication of beams, columns, base plates and flanges
• Railway, shipbuilding and plant maintenance
• Holes on site where the work cannot be moved

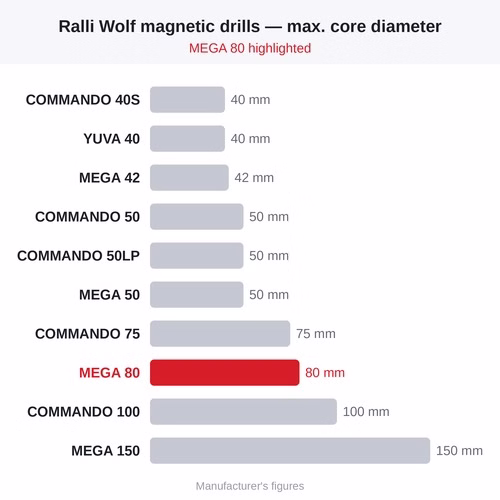

Which Ralli Wolf magnetic drill is right for you?

• YUVA 40 — 40 mm Core, 1150 W, 10000 N Magnet
• MEGA 42 — 42 mm Core, 1400 W, Variable Speed
• MEGA 50 — 50 mm Core, 23 mm Twist, MT2, 1400 W
• COMMANDO 40S — 40 mm Core, 1100 W, 6 Speeds, 13.7 kg
• COMMANDO 50 — 50 mm Core, 1500 W, MT2, 6 Speeds
• COMMANDO 50LP — 50 mm Core, Low Profile, 179 mm High
• COMMANDO 75 — 75 mm Core, 1800 W, MT3, M24 Tapping
• COMMANDO 100 — 100 mm Core, 2000 W, MT3, M30 Tapping
• MEGA 80 (this page) — 80 mm Core, 1950 W, MT3, M24 Tapping
• MEGA 150 — 150 mm Core, 3080 W, MT4, M50 Tapping
• See all Ralli Wolf magnetic core drills

Related products

• Ralli Wolf industrial drills
• Ralli Wolf chop saws
• Ralli Wolf die, straight and bench grinders

Frequently asked questions

Which should I choose — the MEGA 80 or the COMMANDO 75?

The MEGA 80 cuts larger cores (80 mm against 75 mm) and is lighter (18 kg against 22.8 kg); the Ralli Wolf COMMANDO 75 has the stronger 18500 N magnet and a 240 mm stroke.

What cutters does the MEGA 80 take?

Annular (core) cutters up to 80 mm diameter × 80 mm deep, twist drills up to 28 mm and taps up to M24. Spindle / adaptor: MT3.

Can the MEGA 80 drill on vertical or overhead steel?

Yes — the electromagnetic base holds it on beams, columns and plates in any position. Always fit the safety strap, and drill on clean, flat steel thick enough for full magnetic hold.

What is the price of the Ralli Wolf MEGA 80, and where can I buy it?

Prices depend on quantity and current Ralli Wolf pricing, so they are quoted on request. Jai Enterprises supplies Ralli Wolf tools from Bhilai and Raipur, Chhattisgarh, to sites across India — call +91 9340081159 or send an enquiry from this page with the quantity and delivery location.

How to order

Supplied by Jai Enterprises, despatched from Bhilai and Raipur, Chhattisgarh, to sites across India. To request a price, call +91 9340081159 or send an enquiry from this page with your quantity and site details, and we will confirm availability, lead time and the right model for the job.
