HEX Brass Wiping Glands – Heavy-Duty HWG-X, HWG-Y and HWG-Z

HEX wiping glands are heavy-duty brass glands made to be bolted to a cable box or equipment flange, with a tapered spigot for making a wiped (plumbed) joint to the cable. Three standard sizes are made, and other wiping glands are produced to customer drawings and specifications. Made by HEX, the brand of Brass Copper & Alloy (I) Ltd., Mumbai — an ISO 9001 company whose products are tested by CPRI (India), UL (USA), KEMA (Netherlands) and SIRIM (Malaysia).

At a glance

• Material: heavy-duty brass
• HWG-X: square flange 90 × 90 mm, 4 holes of 12 mm, overall height 137 mm
• HWG-Y: flange 114 × 123 mm, 4 holes of 14 mm, overall height 155 mm
• HWG-Z: round flange 190 mm, 6 holes of 14 mm, overall height 195 mm
• Custom: other wiping glands to customer drawings and specifications

Why choose HEX wiping glands

• Heavy-duty brass construction.
• Three standard flange sizes, square or round.
• Made to drawing when a non-standard size is needed.

Specifications

• HWG-X: flange 90 × 90 mm with 4 × 12 mm holes on 66 mm centres; body 60 mm; overall 137 mm; spigot 19 mm

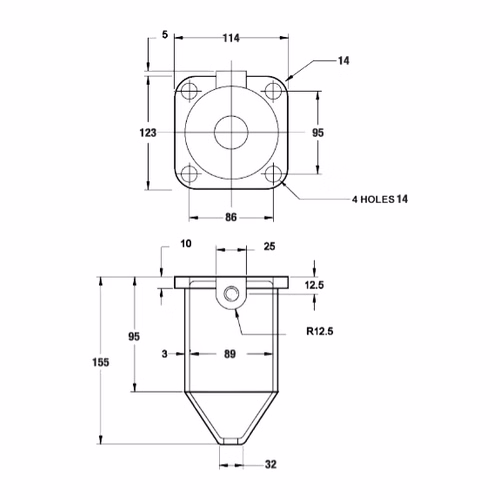

• HWG-Y: flange 114 × 123 mm with 4 × 14 mm holes (86 × 95 mm centres); body 89 mm; overall 155 mm; spigot 32 mm

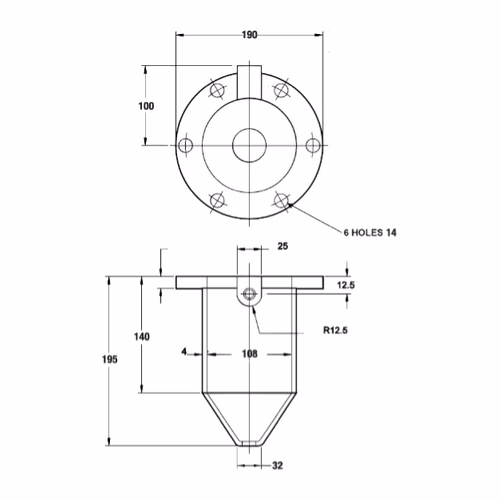

• HWG-Z: round flange 190 mm with 6 × 14 mm holes; body 108 mm; overall 195 mm; spigot 32 mm

Where it is used

• Cable boxes of transformers, switchgear and motors
• Lead-sheathed and paper-insulated cable terminations
• Replacement of old wiping glands in utilities

Related products

• HEX cable gland accessories
• HEX CW cable glands

Frequently asked questions

What is a wiping gland?

A brass gland bolted to a cable box, with a spigot to which the cable sheath is joined by a wiped (plumbed) joint.

Which sizes are standard?

HWG-X (90 mm square flange), HWG-Y (114 × 123 mm flange) and HWG-Z (190 mm round flange).

Can you make a special size?

Yes — other wiping glands are made to customer drawings and specifications.

Where can I buy HEX cable glands in India?

From Jai Enterprises, which supplies HEX cable glands and accessories across India from Bhilai and Raipur, Chhattisgarh. Call +91 9340081159 with the gland type, sizes and quantities.

How to order

Supplied by Jai Enterprises, despatched from Bhilai and Raipur, Chhattisgarh, to sites across India. To request a price, call +91 9340081159 or send an enquiry from this page with your quantity and site details, and we will confirm availability, lead time and the right model for the job.
