HEX Single Compression Brass Cable Glands – Weatherproof, for Unarmoured Cables 6–92 mm Diameter

HEX single compression cable glands are brass glands for unarmoured cable. They secure the cable, provide continuity between the cable and the gland entry, and seal on the outer sheath without damaging it. Being weatherproof and waterproof, they are used indoors and outdoors in all climatic conditions. Made by HEX, the brand of Brass Copper & Alloy (I) Ltd., Mumbai — an ISO 9001 company whose products are tested by CPRI (India), UL (USA), KEMA (Netherlands) and SIRIM (Malaysia).

At a glance

• Use: unarmoured cable, indoor and outdoor
• Seal: single compression on the outer sheath
• Cable range: 6 mm to 92 mm overall diameter
• Nipple entry thread: 5/8" (16 mm) to 4" (100 mm)
• Material: brass
• Codes: HC series

Why choose HEX single compression glands

• Weatherproof and waterproof for indoor and outdoor use in any climate.
• Protects the sheath — the seal grips without cutting.
• 19 sizes for cable diameters from 6 mm up to 92 mm.
• Economical everyday gland for panels, motors and junction boxes.

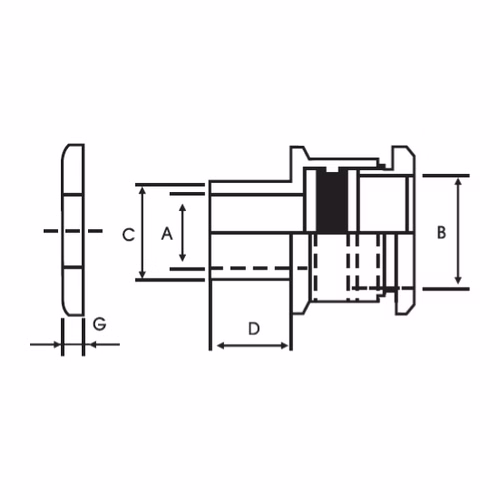

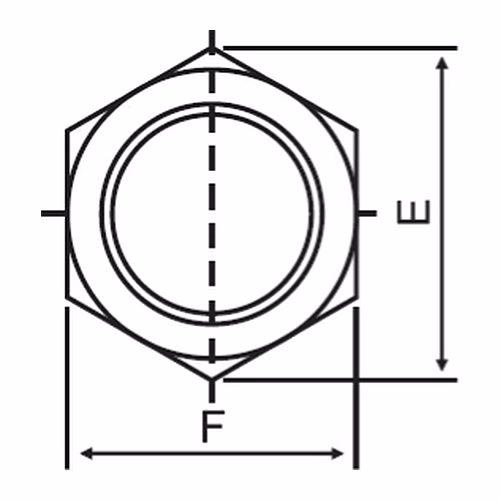

Specifications

• Cable 6–9 and 9–12 mm: 5/8" (16 mm) nipple thread
• Cable 12–14, 14–16 and 16–18 mm: 3/4" (19 mm)
• Cable 18–21.5 mm: 1" (25 mm)
• Cable 21.5–26 mm: 1 1/8" (28 mm)
• Cable 26–31 mm: 1 1/4" (32 mm)
• Cable 31–33 mm: 1 3/8" (35 mm)
• Cable 34–38 mm: 1 1/2" (38 mm)
• Cable 38–42 mm: 1 3/4" (45 mm)
• Cable 42–48 mm: 2" (50.5 mm)
• Cable 48–54 mm: 2 1/4" (57 mm)
• Cable 54–60 mm: 2 1/2" (63 mm)
• Cable 60–66 mm: 2 3/4" (70 mm)
• Cable 66–72 mm: 3" (75 mm)
• Cable 72–78 mm: 3 1/4" (82 mm)
• Cable 78–84 mm: 3 1/2" (88 mm)
• Cable 84–92 mm: 4" (100 mm)

Where it is used

• Control panels, distribution boards and junction boxes
• Motors, pumps and outdoor equipment with unarmoured cable
• Solar and lighting installations
• Building services

Related products

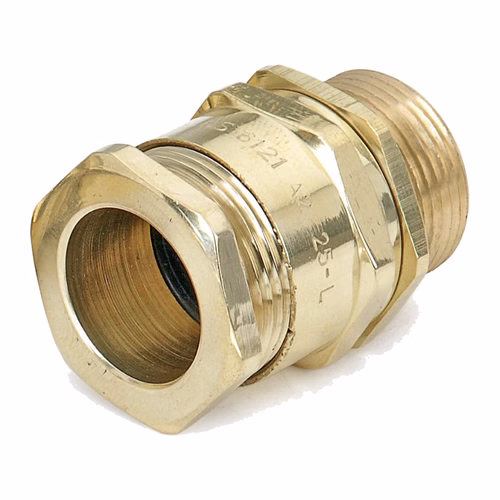

• HEX A1/A2 unarmoured glands to BS EN 62444
• HEX nickel-plated IP68 glands
• HEX cable gland accessories

Frequently asked questions

What is a single compression cable gland?

A gland with one compression seal on the cable's outer sheath. HEX single compression glands are for unarmoured cable and are weatherproof and waterproof.

Which size do I need for a 20 mm cable?

A cable of 18–21.5 mm overall diameter takes the 1" (25 mm) nipple size; always size by the cable's actual outer diameter.

Can I use it on armoured cable?

No — for armoured cable use BW, CW or E1W glands, which grip and earth the armour.

Is it suitable outdoors?

Yes — it is weatherproof and waterproof for use in all climatic conditions.

Where can I buy HEX cable glands in India?

From Jai Enterprises, which supplies HEX cable glands and accessories across India from Bhilai and Raipur, Chhattisgarh. Call +91 9340081159 with the gland type, sizes and quantities.

How to order

Supplied by Jai Enterprises, despatched from Bhilai and Raipur, Chhattisgarh, to sites across India. To request a price, call +91 9340081159 or send an enquiry from this page with your quantity and site details, and we will confirm availability, lead time and the right model for the job.
