HEX Nickel-Plated Brass Cable Glands – IP68 Metric & PG Thread, Plus PG Unarmoured Glands

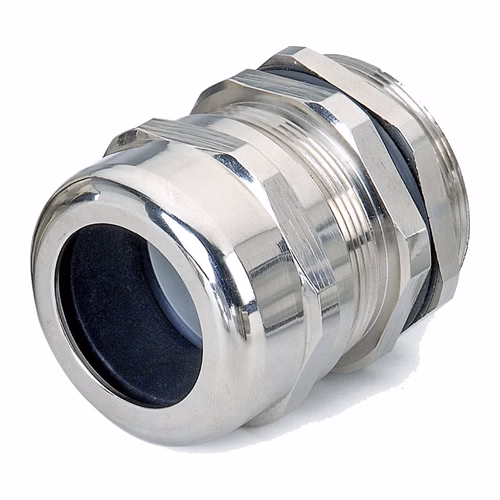

HEX nickel-plated brass IP68 cable glands are compact glands for unarmoured PVC, XLPE and other synthetic cables. A "camera-shutter" clamping principle protects the cable, a neoprene seal and O-ring keep the entry fluid-tight to IP68, and a self-extinguishing polyamide insert gives superior strain relief and full insulation. They come in metric (M12–M75) and PG (PG7–PG48) threads. Made by HEX, the brand of Brass Copper & Alloy (I) Ltd., Mumbai — an ISO 9001 company whose products are tested by CPRI (India), UL (USA), KEMA (Netherlands) and SIRIM (Malaysia).

HEX also makes nickel-plated brass PG-thread glands for unarmoured braided cables (HPG series) for indoor and outdoor fittings.

At a glance

• Rating: IP68 (HIP 68 range); IP68 20 mm gland tested to AS 1939:1990

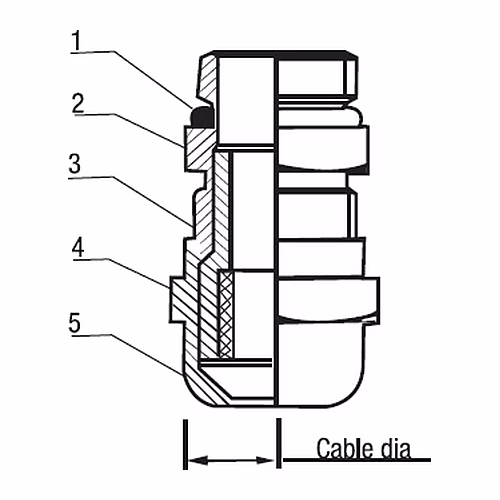

• Material: brass, nickel plated; polyamide 6 insert; neoprene seal and O-ring (self-extinguishing)
• Metric range: M12 to M75, cable 3 to 62 mm
• PG range: PG7 to PG48, cables up to 42 mm
• Temperature: -20 to +100 °C continuous
• Threads: to IEC 423, IEC 423A and EN 60423
• PG unarmoured glands: HPG-7 to HPG-48, brass BS 2874 CZ121, nickel plated

Why choose HEX IP68 glands

• IP68 — the highest ingress protection for cable glands.
• Camera-shutter clamp protects the cable while giving superior strain relief.
• Corrosion protection from nickel-plated brass.
• Chemical resistant to normal organic solvents, mineral, animal and vegetable oils and fats, and petrol.
• Fully insulated by the plastic insert, with a neoprene seal for fluid tightness.

Specifications

• Metric IP68 (HIP 68): M12: cable 3–6 mm (pack 40); M16: 5–10 (20); M20: 8–13 (20); M25: 11–17 (10); M32: 15–21 (5); M40: 19–28 (3); M50: 26–35 (1); M63: 32–42 (1); M75: 48–62 (1)
• PG IP68 (HIP 68): PG7 to PG48 — for example PG9: cable 4–8 mm; PG11: 5–10; PG13.5: 6–12; PG16: 9–14; PG21: 12–17; PG29: 18–25; PG36: 22–32; PG42: 30–38; PG48: 32–42

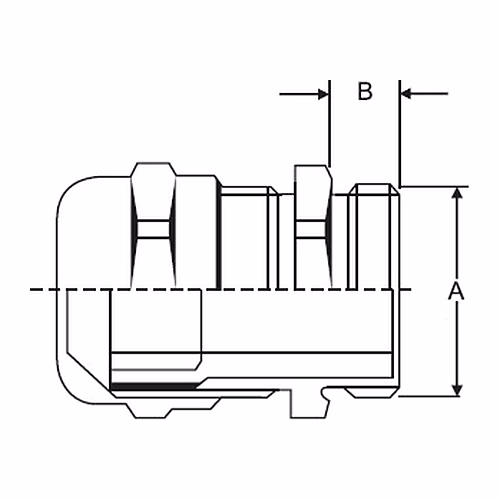

• Across flats (metric): 14 mm (M12) to 80 mm (M75)
• PG glands for unarmoured cable (HPG): PG7, PG9, PG11, PG13.5, PG16, PG21, PG29, PG36, PG42, PG48 — brass BS 2874 CZ121, nickel plated, indoor/outdoor
• Temperature: -20 to +100 °C continuous
• Chemical resistance: normal organic solvents, mineral, animal and vegetable oil and fat, petrol

Where it is used

• Control and automation panels
• Instrumentation and sensor cables
• Food, pharma and washdown areas
• Solar combiner boxes, telecom and CCTV enclosures

Related products

• HEX A1/A2 unarmoured glands
• HEX single compression glands
• HEX marine watertight glands
• HEX cable gland accessories: locknuts

Frequently asked questions

What does IP68 mean?

Dust-tight and protected against continuous immersion in water — the highest ingress rating for a cable gland.

Metric or PG thread?

Match the thread in your enclosure: metric M12–M75 or PG7–PG48. Both are made to IEC 423, IEC 423A and EN 60423.

Which cables are they for?

Unarmoured PVC, XLPE and other synthetic cables — for example an M20 gland takes cables of 8–13 mm.

What temperature can they take?

-20 to +100 °C continuously; the insert, seal and O-ring are self-extinguishing.

Where can I buy HEX cable glands in India?

From Jai Enterprises, which supplies HEX cable glands and accessories across India from Bhilai and Raipur, Chhattisgarh. Call +91 9340081159 with the gland type, sizes and quantities.

How to order

Supplied by Jai Enterprises, despatched from Bhilai and Raipur, Chhattisgarh, to sites across India. To request a price, call +91 9340081159 or send an enquiry from this page with your quantity and site details, and we will confirm availability, lead time and the right model for the job.
