HEX Brass Earth Bars – 6 to 84 Ways, Bare or on a Plastic Base, for Panels & Distribution Boards

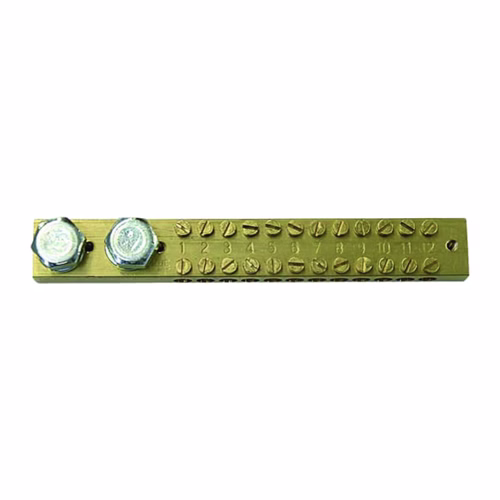

HEX earth bars are multi-way brass bars that collect earth conductors in distribution boards, control panels and consumer units. Each way has its own clamping screw, and two larger bolts take the main conductors. They are supplied bare (HNB) or mounted on a plastic base (HEB). Made by HEX, the brand of Brass Copper & Alloy (I) Ltd., Mumbai — an ISO 9001 company whose products are tested by CPRI (India), UL (USA), KEMA (Netherlands) and SIRIM (Malaysia).

At a glance

• Ways: 6, 12, 18, 24, 30, 36, 42, 48, 60, 72 and 84
• Bare earth bars: HNB-6 to HNB-84
• With plastic base: HEB-6 to HEB-84
• Material: brass

Why choose HEX earth bars

• Eleven sizes from 6 to 84 ways.
• Bare or on a plastic base to suit the enclosure.
• Brass for good conductivity and firm screw clamping.

Specifications

• Bare earth bars: HNB-6, 12, 18, 24, 30, 36, 42, 48, 60, 72, 84
• Earth bars with plastic base: HEB-6, 12, 18, 24, 30, 36, 42, 48, 60, 72, 84
• Construction: brass bar with individual clamping screws and two main bolts; plastic base on HEB versions

Where it is used

• Distribution boards and consumer units
• Control and automation panels
• Earth collection points in switch rooms and machine panels

Related products

• HEX cable gland accessories
• HEX copper earth bars for earth pits

Frequently asked questions

What is the difference between HNB and HEB?

HNB is the bare brass earth bar; HEB is the same bar mounted on a plastic base for insulated fixing.

How many ways are available?

6, 12, 18, 24, 30, 36, 42, 48, 60, 72 and 84 ways.

How is the earth bar fixed?

The bare HNB bar is fixed directly; the HEB version comes mounted on a plastic base with fixing feet.

Where can I buy HEX cable glands in India?

From Jai Enterprises, which supplies HEX cable glands and accessories across India from Bhilai and Raipur, Chhattisgarh. Call +91 9340081159 with the gland type, sizes and quantities.

How to order

Supplied by Jai Enterprises, despatched from Bhilai and Raipur, Chhattisgarh, to sites across India. To request a price, call +91 9340081159 or send an enquiry from this page with your quantity and site details, and we will confirm availability, lead time and the right model for the job.
