HEX Cable Gland Accessories – Gland Kits, PVC & LSF Shrouds, Locknuts and Earth Tags

HEX cable gland accessories complete every gland installation. HEX gland kits pack glands with matching shrouds, locknuts and earth tags; PVC and LSF shrouds add weather and corrosion protection; locknuts fix glands to the gland plate; and earth tags give an earth bond around the gland. Made by HEX, the brand of Brass Copper & Alloy (I) Ltd., Mumbai — an ISO 9001 company whose products are tested by CPRI (India), UL (USA), KEMA (Netherlands) and SIRIM (Malaysia).

At a glance

• Gland kits: sizes 16/20–32: 2 glands, 2 PVC shrouds, 2 galvanised steel locknuts, 2 brass earth tags; sizes 40–90: 1 of each
• Shrouds: high-grade PVC; LSF shrouds in several colours
• Locknuts: brass, aluminium and galvanised steel; metric, imperial, NPT, BSPT, BSP and PG; 16–90 mm

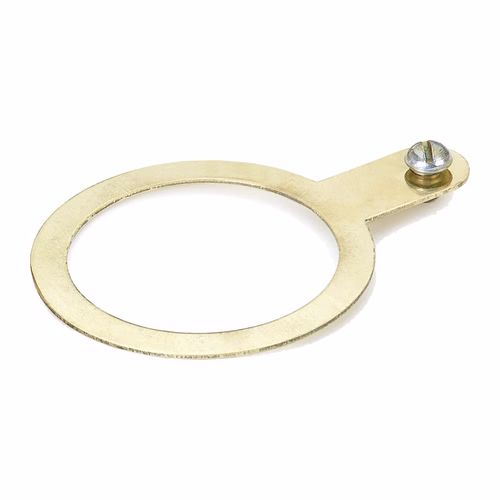

• Earth tags: brass, aluminium and copper; M16 to M100
• Codes: HGA LN-16 to LN-90 (locknuts); HGA ET-16 to ET-100 (earth tags)

Why use HEX accessories

• One kit, one order — glands, shrouds, locknuts and tags packed together by size.
• Better IP protection — shrouds enhance the gland's ingress rating and protect against weather and corrosion.
• Easy fitting — the narrow end of the shroud is cut with a knife to slip over a wide range of cable diameters.
• Reliable earthing — earth tags ensure earth continuity between equipment and gland.

Specifications

• Gland kit 16/20–32: 2 brass glands, 2 black PVC shrouds, 2 galvanised steel locknuts, 2 brass earth tags
• Gland kit 40–90: 1 brass gland, 1 black PVC shroud, 1 galvanised steel locknut, 1 brass earth tag

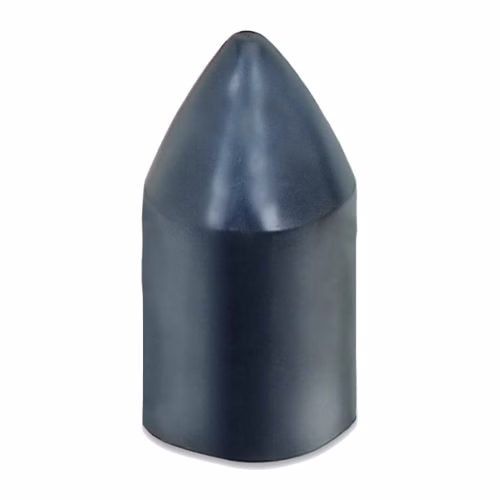

• PVC shrouds: high-grade PVC; in the same sizes as each gland; narrow end cut to suit the cable

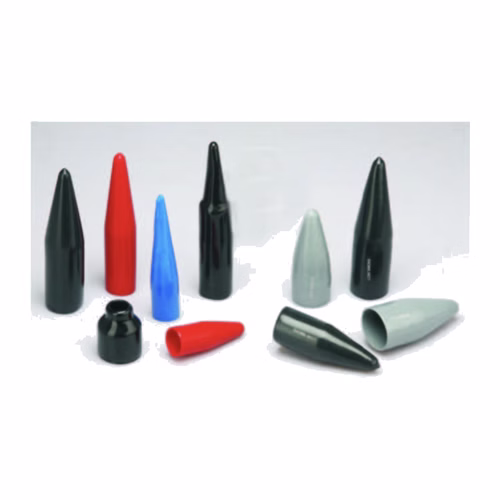

• LSF shrouds: several colours, same protective function
• Locknuts: HGA LN-16 (16 mm or 5/8"), LN-20 (3/4"), LN-25 (1"), LN-32 (1 1/4"), LN-40 (1 1/2"), LN-50 (2"), LN-63 (2 1/2"), LN-75 (3"), LN-90 (3 1/2")
• Earth tags: HGA ET-16, ET-20, ET-25, ET-32, ET-50, ET-63, ET-75, ET-80, ET-90, ET-100; various shapes; coated or plated to customer specification

Where it is used

• Completing gland installations on panels, motors and junction boxes
• Outdoor glands needing weather protection
• Earth bonding at the gland plate

Related products

• HEX BW glands
• HEX CW glands
• HEX E1W glands
• HEX brass earth bars

Frequently asked questions

What is in a HEX gland kit?

For sizes 16/20 to 32: two glands, two black PVC shrouds, two galvanised steel locknuts and two brass earth tags. For sizes 40 to 90: one of each.

Why fit a shroud over a cable gland?

It gives additional protection, enhances the gland's IP rating and protects it from weather and corrosion.

Which locknut threads are available?

Metric, imperial, NPT, BSPT, BSP and PG, in brass, aluminium and galvanised steel.

What does an earth tag do?

It provides a connection or earth bond around the cable gland, ensuring earth continuity between the equipment and the gland.

Where can I buy HEX cable glands in India?

From Jai Enterprises, which supplies HEX cable glands and accessories across India from Bhilai and Raipur, Chhattisgarh. Call +91 9340081159 with the gland type, sizes and quantities.
