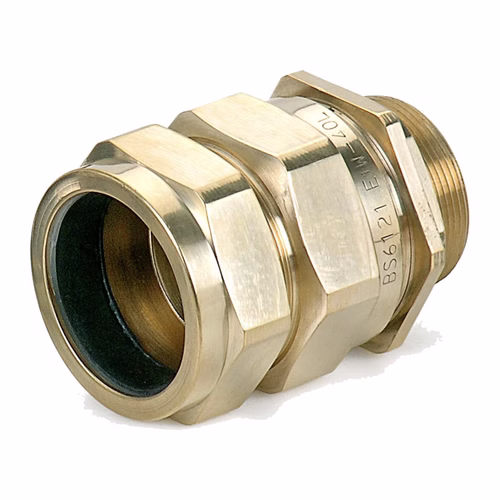

HEX E1W Double-Seal Brass Cable Glands – IP66 Inner & Outer Sheath Seal for SWA Cable

HEX E1W cable glands are for all types of steel-wire-armoured (SWA) cables with extruded bedding, where the gland must produce an IP66 seal on the outer sheath and also seal the inner sheath — an IP66 or explosion-proof seal. With displacement seals on both sheaths and a 2-part armour/earth lock whose knurled clamp forms a low-resistance earth clip, it is the gland for demanding sites. Made by HEX, the brand of Brass Copper & Alloy (I) Ltd., Mumbai — an ISO 9001 company whose products are tested by CPRI (India), UL (USA), KEMA (Netherlands) and SIRIM (Malaysia).

At a glance

• Seals: inner and outer displacement seals; IP66 with an entry-thread seal
• Armour lock: 2-part, knurled — low-resistance earth clip
• Sizes: 16S to 90L, metric M16 to M90
• Option: CIEL cast integral earth lug (add C)
• Codes: HE1W-16S to HE1W-90L
• Flameproof version: HE1FW — ATEX tested (Technická inšpekcia, Slovakia)

Why choose HEX E1W glands

• Two seals, not one — the inner sheath is sealed as well as the outer, for protection where it matters most.
• IP66 in conjunction with an entry-thread seal.
• Low-resistance earth clip from the knurled armour lock.
• Flameproof variant (HE1FW) is ATEX tested for hazardous areas.

Specifications

• Size range: 16S to 90L — 18 sizes

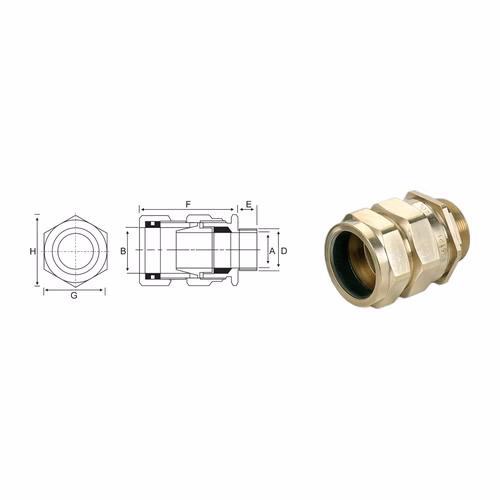

• Cable accepted: diameter under armour up to 8 mm (16S) to 80 mm (90L); overall diameter up to 11 mm (16S) to 96 mm (90L)
• Examples (cable diameter under armour / overall): HE1W-20S: M20, 12 / 15 mm max; HE1W-25S: M25, 18.5 / 23 mm max; HE1W-40S: M40, 32 / 38 mm max; HE1W-63S: M63, 51 / 57 mm max
• Length from shoulder: 45 mm (16S) to 90 mm (90L)
• Bodies, caps and rings: brass
• Seals: nitrile rubber
• Shrouds: black PVC
• Earth tag: natural brass
• Locknut: natural brass or galvanised
• Finish: natural brass or nickel plated
• Entry thread: metric (ISO); other threads on request
• Selection guide: Typical sizes for 4-core 600/1000 V copper PVC/SWA/PVC cables to BS 6346 (HEX selection chart): 2.5–6 mm² → 20; 10 mm² → 25S; 16–25 mm² → 25; 35 mm² → 32; 50 mm² → 40S; 70 mm² → 40; 95 mm² → 50S; 120 mm² → 50; 150–185 mm² → 63S; 240 mm² → 63; 300 mm² → 75S; 400 mm² → 90S; 500 mm² → 90. Always confirm against the actual cable diameters.

Where it is used

• Refineries, chemical and pharmaceutical plants
• Pump houses, water and effluent treatment
• Mining, tunnelling and heavy industry
• Any SWA termination needing an inner-sheath seal

Which HEX gland do I need?

• BW — indoor, dry conditions; grips and earths the armour (IP3X).
• CW — indoor and outdoor; adds a seal on the outer sheath (IP66).
• E1W (this page) — seals both the inner and outer sheath (IP66), for SWA cables where the inner seal matters.
• A1/A2 — for unarmoured cables with a rubber outer sheath.

Related products

• HEX CW IP66 glands
• HEX cable gland accessories
• HEX aluminium cable cleats

Frequently asked questions

What is the difference between an E1W and a CW gland?

Both seal the outer sheath to IP66; the E1W also seals the inner sheath (bedding) of extruded-bedding SWA cables.

Is the E1W an explosion-proof gland?

The E1W provides an IP66 or explosion-proof seal on the inner sheath; for certified hazardous-area use HEX makes the flameproof HE1FW, which is ATEX tested.

How is the armour earthed?

By a 2-part armour/earth lock whose knurled clamp produces a low-resistance earth clip; a cast integral earth lug (CIEL) is optional.

Which size for my cable?

Choose by diameter under armour and overall diameter — for example 4-core 50 mm² SWA usually needs size 40S. Send us the cable details to confirm.

Where can I buy HEX cable glands in India?

From Jai Enterprises, which supplies HEX cable glands and accessories across India from Bhilai and Raipur, Chhattisgarh. Call +91 9340081159 with the gland type, sizes and quantities.

How to order

Supplied by Jai Enterprises, despatched from Bhilai and Raipur, Chhattisgarh, to sites across India. To request a price, call +91 9340081159 or send an enquiry from this page with your quantity and site details, and we will confirm availability, lead time and the right model for the job.
