HEX BW Brass Cable Glands – Indoor Armoured Cable Glands to BS 6121, 16S to 90L

HEX BW cable glands are brass glands for armoured or braided cables. They secure the armouring and provide electrical continuity between the armour and the equipment's gland entry, and are mainly used in dry, indoor conditions such as switch rooms and control panels. Made by HEX, the brand of Brass Copper & Alloy (I) Ltd., Mumbai — an ISO 9001 company whose products are tested by CPRI (India), UL (USA), KEMA (Netherlands) and SIRIM (Malaysia).

Made to BS 6121-1:2005, the standard 4-part gland has a 3-part armour lock with a cone and lock ring for extra grip on the armour; a simpler 2-part version is also made.

At a glance

• Standard: BS 6121-1:2005 (series tested by Eurotech, UK)
• Use: armoured or braided cables, dry indoor conditions
• Ingress protection: IP3X
• Sizes: 16S to 90L — 18 sizes, metric entry threads M16 to M90

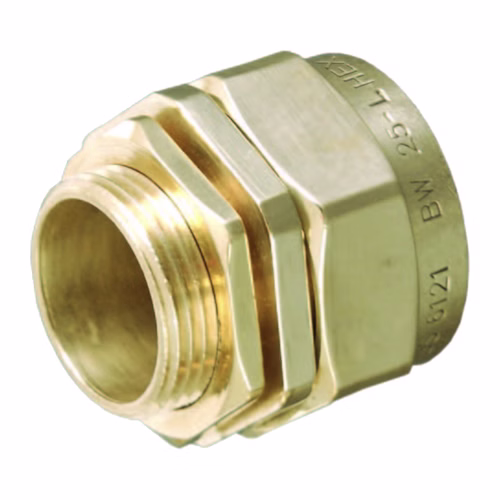

• Versions: 4-part (cone and lock ring) and 2-part (knurled lock)
• Option: CIEL — cast integral earth lug (add C to the code)
• Codes: HBW-16S to HBW-90L

Why choose HEX BW glands

• Firm grip on the armour — cone and lock ring give additional grip.
• Reliable earth path — continuity from armour to equipment; the 2-part knurled lock forms a low-resistance earth clip.
• Built-in earth lug option (CIEL) so no separate earth tag is needed.
• Full size range from 16S to 90L for control to large power cables.

Specifications

• Size range: 16S, 16L, 20S, 20L, 25S, 25L, 32S, 32L, 40S, 40L, 50S, 50L, 63S, 63L, 75S, 75L, 90S, 90L

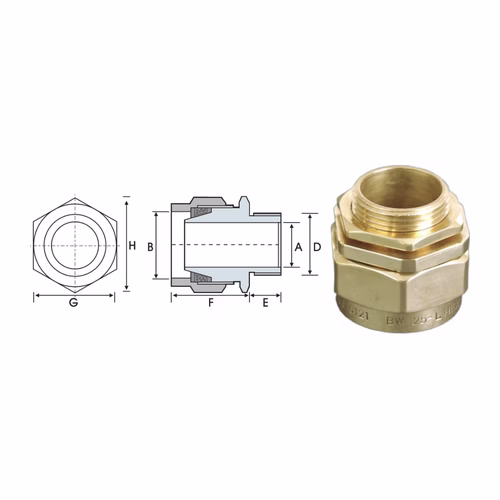

• Cable accepted: diameter under armour up to 8 mm (16S) to 78.4 mm (90L); overall cable diameter up to 12 mm (16S) to 88.5 mm (90L)
• Examples (cable diameter under armour / overall): HBW-20S: M20, 12.5 / 17 mm max; HBW-25S: M25, 19 / 23.25 mm max; HBW-40S: M40, 31.5 / 37.5 mm max; HBW-63S: M63, 51 / 60.5 mm max
• Entry thread length: 9 mm (M16–M32) to 17.5 mm (M90)
• Hexagon across flats: 20 mm (16S) to 102 mm (90L)
• Bodies, caps and rings: brass
• Seals: nitrile rubber
• Shrouds: black PVC
• Earth tag: natural brass
• Locknut: natural brass or galvanised
• Finish: natural brass or nickel plated
• Entry thread: metric (ISO); other threads on request
• Selection guide: Typical sizes for 4-core 600/1000 V copper PVC/SWA/PVC cables to BS 6346 (HEX selection chart): 2.5–6 mm² → 20; 10 mm² → 25S; 16–25 mm² → 25; 35 mm² → 32; 50 mm² → 40S; 70 mm² → 40; 95 mm² → 50S; 120 mm² → 50; 150–185 mm² → 63S; 240 mm² → 63; 300 mm² → 75S; 400 mm² → 90S; 500 mm² → 90. Always confirm against the actual cable diameters.

Where it is used

• Switchgear, MCC and control panels in switch rooms
• Indoor motor and transformer terminations
• Cable trays inside plants and buildings
• Data centres and commercial electrical rooms

Which HEX gland do I need?

• BW (this page) — indoor, dry conditions; grips and earths the armour (IP3X).
• CW — indoor and outdoor; adds a seal on the outer sheath (IP66).
• E1W — seals both the inner and outer sheath (IP66), for SWA cables where the inner seal matters.
• A1/A2 — for unarmoured cables with a rubber outer sheath.

Related products

• HEX CW glands for outdoor use

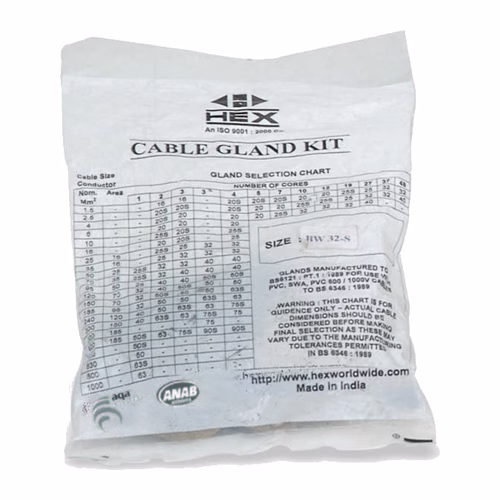

• HEX cable gland accessories: shrouds, locknuts, earth tags
• HEX E1W double-seal glands

Frequently asked questions

Where should BW glands be used?

On armoured or braided cables in dry, indoor conditions; for outdoor or wet areas choose a CW or E1W gland, which also seal the cable sheath.

What is the difference between the 4-part and 2-part BW gland?

The 4-part gland has a 3-part armour lock with cone and lock ring for extra grip; the 2-part uses a knurled lock that also forms a low-resistance earth clip.

What does CIEL mean?

Cast integral earth lug — the earth lug is cast into the gland. Add C to the product code to order it.

How do I pick the right size?

By the cable's diameter under the armour and its overall diameter; for example a 4-core 16 mm² SWA cable usually takes a size 25 gland. Send us the cable size and we will confirm.

Where can I buy HEX cable glands in India?

From Jai Enterprises, which supplies HEX cable glands and accessories across India from Bhilai and Raipur, Chhattisgarh. Call +91 9340081159 with the gland type, sizes and quantities.

How to order

Supplied by Jai Enterprises, despatched from Bhilai and Raipur, Chhattisgarh, to sites across India. To request a price, call +91 9340081159 or send an enquiry from this page with your quantity and site details, and we will confirm availability, lead time and the right model for the job.
