HEX Aluminium Cable Cleats – Trefoil & Double Trefoil, 24 to 114 mm Cable Diameter

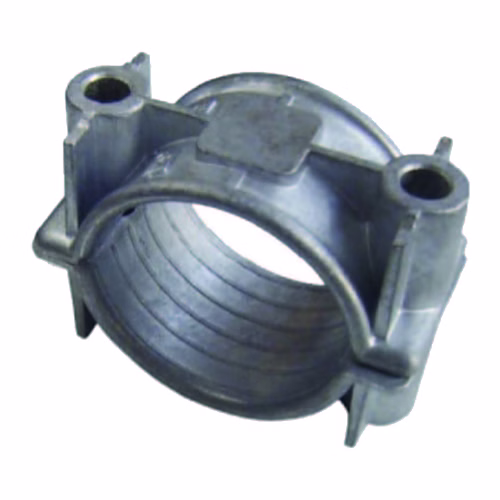

HEX aluminium cable cleats hold single-core power cables firmly in trefoil formation on trays, ladders and structures. The trefoil cleat takes cables of 24 to 76 mm diameter in single-fixing or double-bolt-fixing designs; the double-trefoil cleat is a double-piece, double-fixing design for cables up to 114 mm in diameter that can be double-stacked on a common fixing. Both work from -60 °C to +100 °C. Made by HEX, the brand of Brass Copper & Alloy (I) Ltd., Mumbai — an ISO 9001 company whose products are tested by CPRI (India), UL (USA), KEMA (Netherlands) and SIRIM (Malaysia).

At a glance

• Trefoil cleats: cable 24–76 mm dia; single fixing (S) or double fixing (D) — HATFC series
• Double trefoil cleats: cable 30–114 mm dia; double bolt fixing, M10 or M12 — HATC series
• Material: aluminium
• Operating temperature: -60 °C to +100 °C
• Stacking: double trefoil cleats can be double-stacked on a common fixing

Why choose HEX cleats

• Keeps trefoil groups tight — cables stay in formation along the run.
• Two fixing options — single or double bolt on the trefoil range.
• Stackable double-trefoil cleats save fixing points.
• Wide temperature range, -60 to +100 °C.

Specifications

• Trefoil sizes: 33 cable-diameter bands from 24–25 mm (HATFC 24-25) to 74.5–76 mm (HATFC 74.5-76)

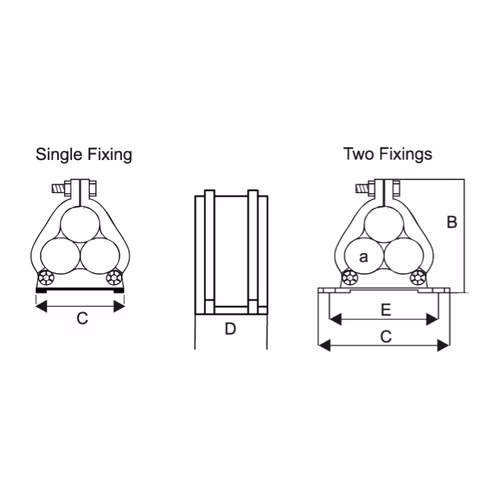

• Trefoil dimensions: B 94–197 mm; D 38 mm up to 53–54 band, 44 mm above; C 75–183 mm single fixing, 128–222 mm double fixing
• Ordering trefoil cleats: add S for single fixing or D for double fixing
• Double trefoil sizes: HATC 30-40, 40-50, 51-57, 57-64, 64-70, 70-76 (M10 fixing); 76-83, 83-89, 89-95, 95-101, 101-108, 108-114 (M12 fixing)

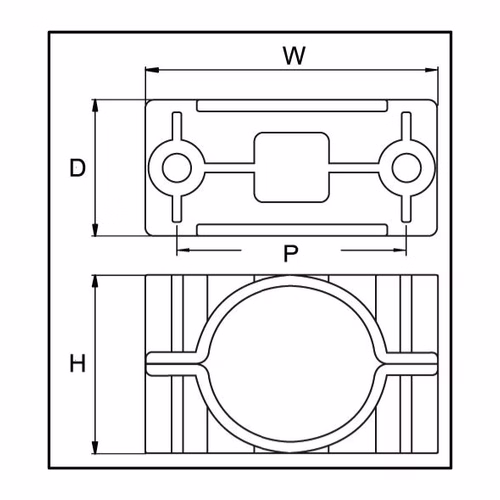

• Double trefoil dimensions: W 70–169 mm, H 46–140 mm, D 40–76 mm, fixing pitch 57–140 mm

Where it is used

• HT and LT single-core cable runs in trefoil
• Substation cable trenches and galleries
• Power plant, steel and cement plant cable ladders
• Solar and wind farm feeders

Related products

• HEX CW cable glands
• HEX E1W cable glands
• HEX aluminium cable glands

Frequently asked questions

What is a trefoil cable cleat?

A clamp that holds three single-core cables together in a triangular (trefoil) formation along a cable tray or ladder.

Which cable diameters do HEX cleats take?

Trefoil cleats take cable diameters of 24 to 76 mm; double trefoil cleats take diameters of 30 to 114 mm.

Single or double fixing?

Trefoil cleats are available with single fixing (add S) or double fixing (add D); double trefoil cleats use double bolt fixing.

What temperature range can they take?

-60 °C to +100 °C.
