HEX Marine Watertight Cable Glands – Nickel-Plated Brass, PF 3/8" to 3"

HEX marine-use watertight cable glands are nickel-plated brass glands for shipboard and marine installations, where cable entries must stay watertight. Each gland comes complete with body, clamping gland, lock nut, two brass washers, a rubber thread seal and a rubber inner compression ring. Made by HEX, the brand of Brass Copper & Alloy (I) Ltd., Mumbai — an ISO 9001 company whose products are tested by CPRI (India), UL (USA), KEMA (Netherlands) and SIRIM (Malaysia).

At a glance

• Material: brass, nickel plated
• Parts: body, clamping gland, lock nut, two brass washers, rubber thread seal, rubber inner compression ring
• Size range: PF 3/8" to PF 3"
• Gland ID: 10 to 70 mm
• Codes: HCG-10 to HCG-70

Why choose HEX marine glands

• Watertight design with a rubber thread seal and inner compression ring.
• Nickel-plated brass for corrosion resistance at sea.
• Complete kit — every part needed, including two brass washers.
• 13 sizes from PF 3/8" to PF 3".

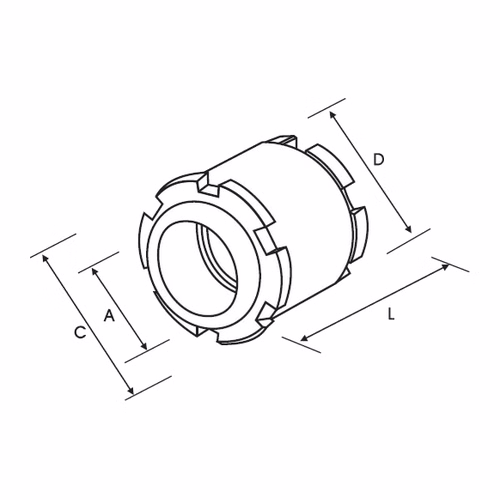

Specifications

• PF 3/8": HCG-10: gland ID 10, rubber ID 8, locknut OD 28, gland OD 22, length 38 mm
• PF 1/2": HCG-15: 15 / 10 / 31.5 / 28 / 42 mm
• PF 3/4": HCG-20: 20 / 13 / 37 / 33.5 / 46 mm
• PF 1": HCG-25: 25 / 15 / 45 / 42 / 52 mm
• PF 1 1/4": HCG-30: 30 / 24 / 46 / 49.5 / 57 mm
• PF 1 1/2": HCG-35: 40 / 30 / 63 / 55 / 65 mm; HCG-40: 40 / 34 / 63 / 55 / 65 mm
• PF 2": HCG-45: 45 / 38 / 77 / 69 / 73 mm; HCG-50: 50 / 44 / 77 / 69 / 73 mm
• PF 2 1/2": HCG-55: 55 / 48 / 96 / 85 / 83 mm; HCG-60: 60 / 54 / 96 / 85 / 83 mm
• PF 3": HCG-65: 65 / 60 / 112 / 100 / 95 mm; HCG-70: 70 / 64 / 112 / 100 / 95 mm

Where it is used

• Ships, boats and offshore vessels
• Ports, jetties and dockside equipment
• Marine pump rooms and deck equipment
• Coastal installations exposed to spray

Related products

• HEX nickel-plated IP68 glands
• HEX CW IP66 glands
• HEX cable gland accessories

Frequently asked questions

What comes with a HEX marine gland?

Body, clamping gland, lock nut, two brass washers, rubber thread seal and rubber inner compression ring.

What sizes are available?

PF 3/8" to PF 3", codes HCG-10 to HCG-70, with gland inner diameters of 10 to 70 mm.

Why nickel plated?

Nickel plating protects the brass from corrosion in marine conditions.

How do I choose the size?

By the PF thread of the equipment and the cable diameter. The rubber ring's inner diameter is 8 mm on HCG-10 and 64 mm on HCG-70, the smallest and largest sizes.

Where can I buy HEX cable glands in India?

From Jai Enterprises, which supplies HEX cable glands and accessories across India from Bhilai and Raipur, Chhattisgarh. Call +91 9340081159 with the gland type, sizes and quantities.

How to order

Supplied by Jai Enterprises, despatched from Bhilai and Raipur, Chhattisgarh, to sites across India. To request a price, call +91 9340081159 or send an enquiry from this page with your quantity and site details, and we will confirm availability, lead time and the right model for the job.
