HEX Earth Pit Accessories – Copper Earth Bars & Earth Rod Seals (Single / Double Flange)

Two accessories finish an earth pit properly. HEX copper earth bars fit into the slots of the earth pit housing when several conductors have to connect to the same rod. HEX earth rod seals stop groundwater entering the earth pit chamber — used with HEX polymer pits, they suit areas with a very high water table and earth pits installed through concrete foundations and basements. Made by HEX, the brand of Brass Copper & Alloy (I) Ltd., Mumbai — an ISO 9001 company whose products are tested by CPRI (India), UL (USA), KEMA (Netherlands) and SIRIM (Malaysia).

At a glance

• Earth bars: copper, 290 × 30 × 6 mm, 12 mm holes — HEBC 05 (5 holes), HEBC 07 (7 holes)
• Earth rod seals: HESS single flange (2 kg), HESD double flange (3 kg)
• Seal standard: tested for compliance with IEC 62561-5
• Ordering: state the earth rod diameter for seals; other earth-bar hole sizes on request

Why these accessories

• Several connections, one rod — the copper bar takes multiple conductors inside the pit.
• Keeps water out — single or double flanges reduce the water pressure on the chamber.
• Made for concrete — the bottom flange sits on the damp-proof membrane for basement earthing.
• Made to your rod — seal kits are made to suit the earth rod diameter.

Specifications

• HEBC 05: copper earth bar, 5 holes of 12 mm, 290 × 30 × 6 mm
• HEBC 07: copper earth bar, 7 holes of 12 mm, 290 × 30 × 6 mm
• HESS: earth rod seal, single flange, 2 kg

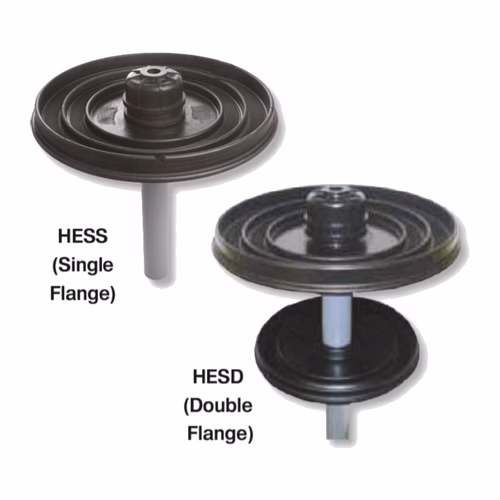

• HESD: earth rod seal, double flange, 3 kg

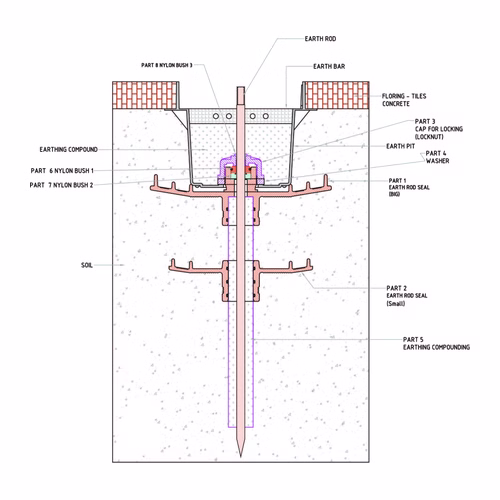

• Seal installation: bottom flange fitted on the damp-proof membrane; copper-bonded rod passed through a PVC pipe fitted between top and bottom flanges to the length specified; both rod ends made waterproof by the seal kits
• Options: other hole sizes and extra holes on earth bars on request

Where it is used

• Earth pits with several connections (panels, lightning down conductors, equipment bonds)
• Basements and foundations of high-rise buildings
• Sites with a high water table
• Earthing installed during construction through concrete
