HEX Lightning Air Terminals – Copper Aerial Rods, Multiple Point Spikes & Terminal Bases

HEX lightning air terminals are the conventional (Franklin-type) strike-termination parts of a building lightning-protection system: an electrolytic-copper aerial rod, with or without a multiple-point spike on top, fixed to the roof or wall on a terminal base that also takes the down conductor. HEX supplies the parts separately or as ready assemblies. Made by HEX, the brand of Brass Copper & Alloy (I) Ltd., Mumbai — an ISO 9001 company whose products are tested by CPRI (India), UL (USA), KEMA (Netherlands) and SIRIM (Malaysia).

At a glance

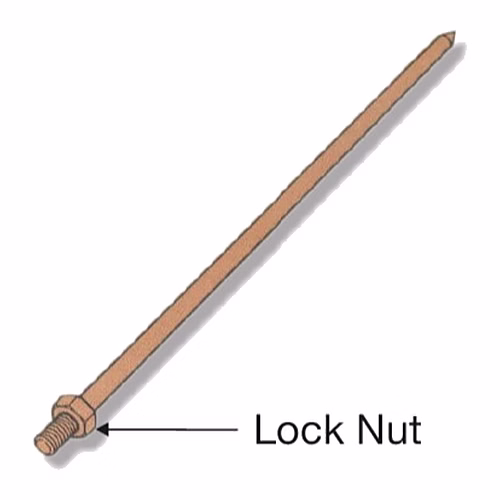

• Aerial rods: electrolytic copper, 15 mm dia, 5/8" thread, 500 / 1000 / 2000 mm, with lock nut
• Multiple point: copper / copper alloy, for 16 mm (5/8") and 20 mm (3/4") rods

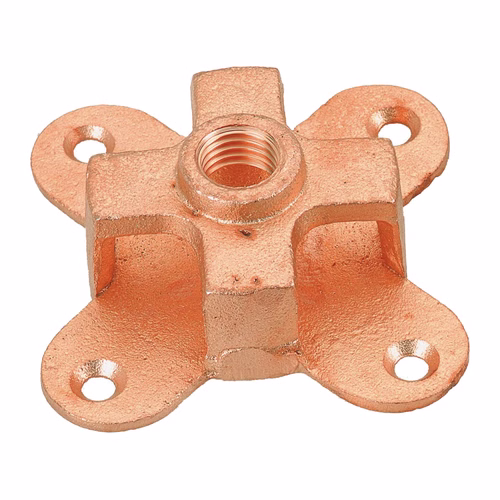

• Terminal base: copper-plated brass (gunmetal on request), four fixing holes, M16 / 5/8" or M20 / 3/4" thread
• Assemblies: aerial rod + multiple point + terminal base: HLA-144, HLA-14, HLA-154

Why choose HEX air terminals

• Electrolytic copper rods with a lock nut, in three lengths.
• Multiple point or single point — rods can be installed with or without the multiple-point spike.
• One base for rod and down conductor — the terminal base fixes the aerial rod and the down conductor together.
• Ready assemblies save sourcing three parts separately.

Specifications

• Aerial elevation rods: HAE-15: 15 mm, 5/8" thread, 500 mm; HAE-40: 1000 mm; HAE-120: 2000 mm — other sizes on request
• Multiple point: HMP-16 (16 mm / 5/8" rod), HMP-20 (20 mm / 3/4" rod) — copper / copper alloy
• Terminal base: HTB-LP-16 (M16 or 5/8"), HTB-LP-20 (M20 or 3/4") — brass, copper plated; gunmetal versions add G, e.g. HTB-LP-16G

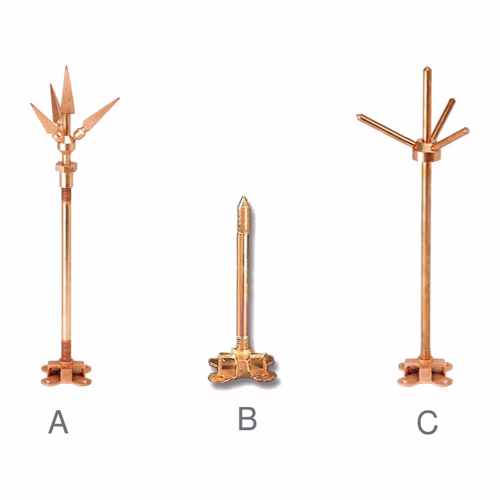

• Aerial rod + terminal base assemblies: HLA-144 (A), HLA-14 (B), HLA-154 (C) — copper / copper alloy

Where it is used

• Roofs of commercial, residential and institutional buildings
• Factories, warehouses and cement or steel plants
• Hospitals, schools and heritage buildings
• Telecom and control buildings

Related products

• HEX lightning protection saddles & rod brackets
• HEX copper bonded earth rods
• HEX earth pit chambers
• Dinnteco DDCE 50plus lightning prevention device

Frequently asked questions

What lengths of aerial rod are available?

500 mm (HAE-15), 1000 mm (HAE-40) and 2000 mm (HAE-120), all 15 mm electrolytic copper with a 5/8" thread; other sizes on request.

Should I use a multiple point?

It is optional — the aerial rod can be installed with or without the multiple-point spike (HMP-16 or HMP-20).

What does the terminal base do?

It fixes the aerial rod to the roof and connects the down conductor, with four fixing holes; it is copper-plated brass, or gunmetal on request.

Do you supply complete assemblies?

Yes — HLA-144, HLA-14 and HLA-154 combine the aerial rod, multiple point and terminal base.

Where can I buy HEX earthing products in India?

From Jai Enterprises, which supplies HEX earthing and lightning-protection material across India from Bhilai and Raipur, Chhattisgarh. Call +91 9340081159 with the item codes and quantities.

How to order

Supplied by Jai Enterprises, despatched from Bhilai and Raipur, Chhattisgarh, to sites across India. To request a price, call +91 9340081159 or send an enquiry from this page with your quantity and site details, and we will confirm availability, lead time and the right model for the job.
