HEX Lightning Protection Saddles & Rod Brackets – Ridge, Flat, Light-Duty & Multi-Purpose

A lightning-protection system is only as good as its fixings. HEX saddles and brackets hold air terminals and conductors securely on flat roofs, ridges and walls — made in gunmetal or brass, with aluminium versions for aluminium conductors. Made by HEX, the brand of Brass Copper & Alloy (I) Ltd., Mumbai — an ISO 9001 company whose products are tested by CPRI (India), UL (USA), KEMA (Netherlands) and SIRIM (Malaysia).

At a glance

• Multi-purpose saddles: gunmetal HUAG-253 (copper air rods) or aluminium HUAA-253 (aluminium air rods); for 8 mm round conductor and 25 × 3 mm tape
• Ridge saddle: HRDS-1, gunmetal / brass
• Side-mounting rod brackets: 75 mm projection from the wall; 10, 16, 20 mm rods
• Light-duty and flat saddles: 10, 16, 20 mm threads, conductors up to 25 mm wide
• Aluminium conductor versions: on request

Why choose HEX fixings

• Roofs or walls — multi-purpose saddles mount horizontally on roofs or vertically on walls.
• Round conductor or tape — the same saddle takes 8 mm round conductor or 25 × 3 mm flat tape.
• Correct stand-off — side-mounting brackets hold the rod 75 mm clear of the wall face.
• Metals matched to the conductor — gunmetal/brass for copper, aluminium on request.

Specifications

• Multi-purpose air rod saddles: HUAG-253 gunmetal for copper air rods; HUAA-253 aluminium for aluminium air rods — for 8 mm round conductor and 25 × 3 mm tape; specify rod size

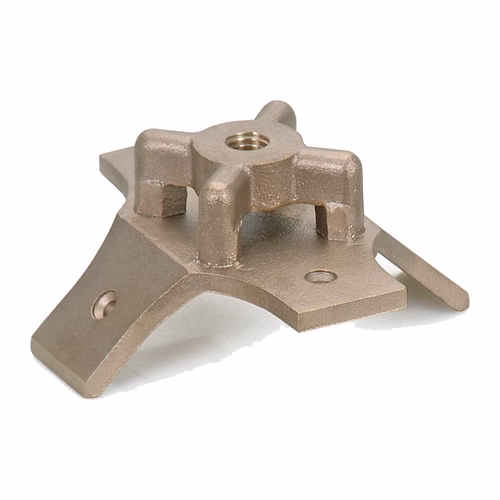

• Ridge saddle: HRDS-1, gunmetal / brass — supports air terminals on ridges

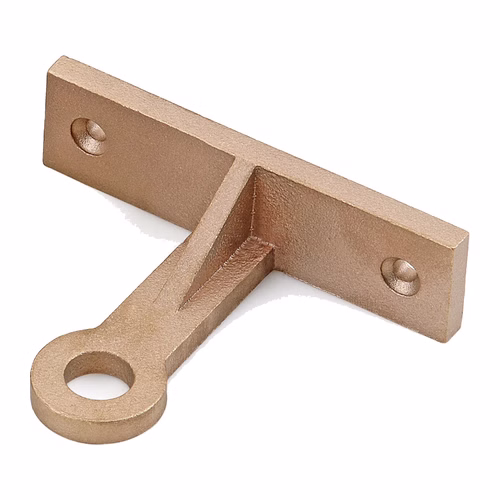

• Side-mounting rod bracket: brass / gunmetal, 75 mm projection: HSM-10 (10 mm rod), HSM-16 (16 mm), HSM-20 (20 mm)

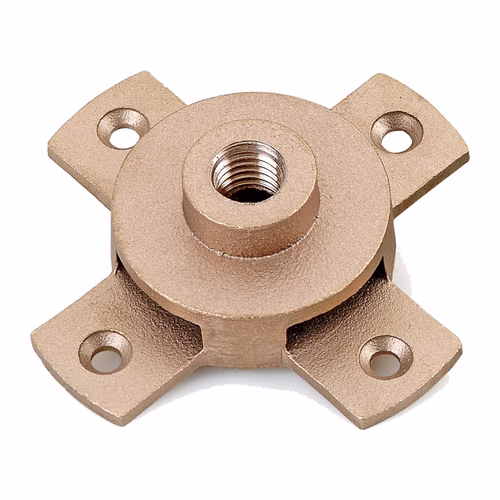

• Light-duty saddle: brass / gunmetal: HLD-1025 (10 mm thread), HLD-1625 (16 mm), HLD-2025 (20 mm) — max conductor width 25 mm

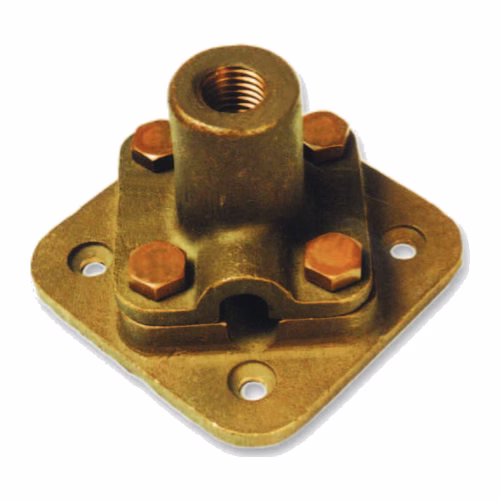

• Flat saddle: brass / gunmetal: HFLD-1025, HFLD-1625, HFLD-2025 — max conductor width 25 mm
• Aluminium conductor versions: side brackets, light-duty and flat saddles on request

Where it is used

• Flat and sloping roofs
• Roof ridges of sheds and heritage buildings
• Parapets and walls
• Telecom shelters, factories and warehouses

Related products

• HEX lightning air terminals & aerial rods
• HEX copper bonded earth rods
• HEX earth rod clamps & couplers

Frequently asked questions

Which saddle holds both round conductor and tape?

The multi-purpose air rod saddle (HUAG-253 gunmetal, HUAA-253 aluminium) takes 8 mm round conductor or 25 × 3 mm tape.

How far does the side-mounting bracket hold the rod from the wall?

75 mm from the wall face; HSM-10, HSM-16 and HSM-20 suit 10, 16 and 20 mm rods.

What is a ridge saddle?

A gunmetal or brass saddle (HRDS-1) that supports air terminals on roof ridges.

Are aluminium versions available?

Yes — for aluminium conductors, on request.

Where can I buy HEX earthing products in India?

From Jai Enterprises, which supplies HEX earthing and lightning-protection material across India from Bhilai and Raipur, Chhattisgarh. Call +91 9340081159 with the item codes and quantities.

How to order

Supplied by Jai Enterprises, despatched from Bhilai and Raipur, Chhattisgarh, to sites across India. To request a price, call +91 9340081159 or send an enquiry from this page with your quantity and site details, and we will confirm availability, lead time and the right model for the job.
