HEX Concrete Earth Pit Chambers – Ready-Made Square & Round, Load Bearing up to 5 Tonnes

HEX concrete earth pit chambers are ready-to-use, robust chambers that replace the tedious brick-and-cement pits built on site. They are made with a proprietary mortar formulation of prime materials and additives that keep them relatively light for concrete, give water resistance (low porosity) and good insulation, and remain stable under all weather conditions. An earth bar for multiple connections can be fitted diagonally across the slots provided. Made by HEX, the brand of Brass Copper & Alloy (I) Ltd., Mumbai — an ISO 9001 company whose products are tested by CPRI (India), UL (USA), KEMA (Netherlands) and SIRIM (Malaysia).

At a glance

• Construction: precast proprietary mortar with additives; low porosity
• Shapes: square (concrete or metal cover) and round (metal cover)
• Load-bearing capacity: 5 tonnes (square range); 3 tonnes (round HCEPR-CI)
• Weight: 25 to 130 kg
• Tested: load-bearing capacity to IEC 62561-5 (TCR Engineering Services) on the 310 mm square chamber

Why choose a HEX concrete pit

• No site masonry — drop in a finished chamber instead of building one in brick and cement.
• Water resistant and insulating — low porosity mortar with additives.
• 5-tonne rating across the square range.
• Ready for an earth bar — slots take a copper bar diagonally for several connections.

Specifications

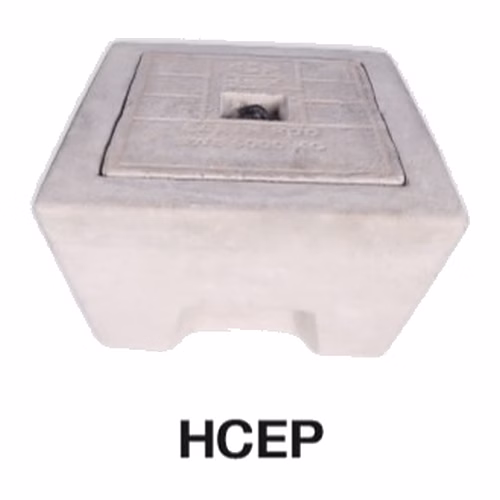

• HCEP (concrete cover): 310 × 310 × 170 mm; 25 kg; 5 t
• HCEP-A: 320 × 320 × 195 mm; 30 kg; 5 t

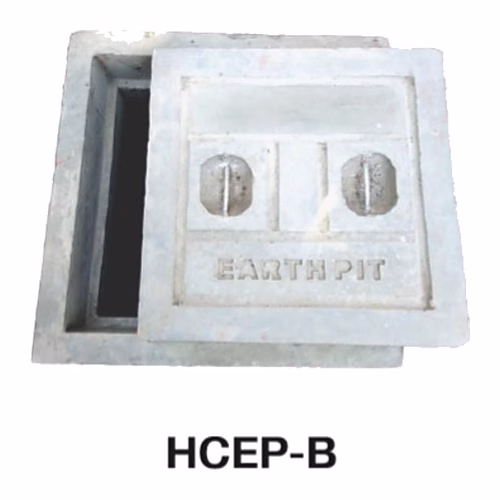

• HCEP-B: 500 × 500 × 400 mm; 120 kg; 5 t
• HCEP-C: 510 × 510 × 400 mm; 130 kg; 5 t
• HCEP-D: 500 × 500 × 250 mm; 100 kg; 5 t
• HCEP-M (metal cover): 310 × 310 × 170 mm; 25 kg; 5 t

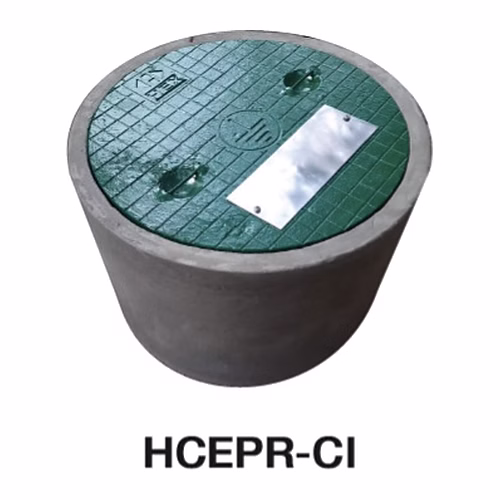

• HCEPR-CI (round, metal cover): top 450 mm, bottom 430 mm, height 300 mm; 70 kg; 3 t

Where it is used

• Industrial plants and substations
• Driveways, yards and areas with vehicle traffic nearby
• Commercial and residential projects replacing brick pits
• Railway and utility earthing

Concrete or polymer pit?

• Concrete (this page) — solid, heavy (25–130 kg), water resistant; 5 t load bearing on square models.
• Polymer — light (0.75–5 kg), lockable lids, easy to handle; 3–5 t load bearing.

Related products

• HEX polymer earth pit chambers
• HEX earth pit accessories: earth bars & rod seals
• HEX earth enhancing compounds: TEREC+, EARTHCON, TERRAPRO, TERRAHEX & TERRANITE
• HEX copper bonded earth rods

Frequently asked questions

Why use a precast concrete earth pit instead of building one?

It saves the time and labour of a brick-and-cement pit on site, and the proprietary mortar gives water resistance, insulation and a tested load rating.

What load can it take?

The square HCEP range is rated at 5 tonnes; the round HCEPR-CI at 3 tonnes.

Can I fit an earth bar inside?

Yes — an earth bar can be fitted diagonally across the slots provided; HEX copper earth bars are listed on the earth pit accessories page.

Is there a version with a metal cover?

Yes — HCEP-M (square) and HCEPR-CI (round).

Where can I buy HEX earthing products in India?

From Jai Enterprises, which supplies HEX earthing and lightning-protection material across India from Bhilai and Raipur, Chhattisgarh. Call +91 9340081159 with the item codes and quantities.

How to order

Supplied by Jai Enterprises, despatched from Bhilai and Raipur, Chhattisgarh, to sites across India. To request a price, call +91 9340081159 or send an enquiry from this page with your quantity and site details, and we will confirm availability, lead time and the right model for the job.
